A2838D2 19 – SHROUD, BLOWER MOTOR (`CC` CABINET
Written by
in

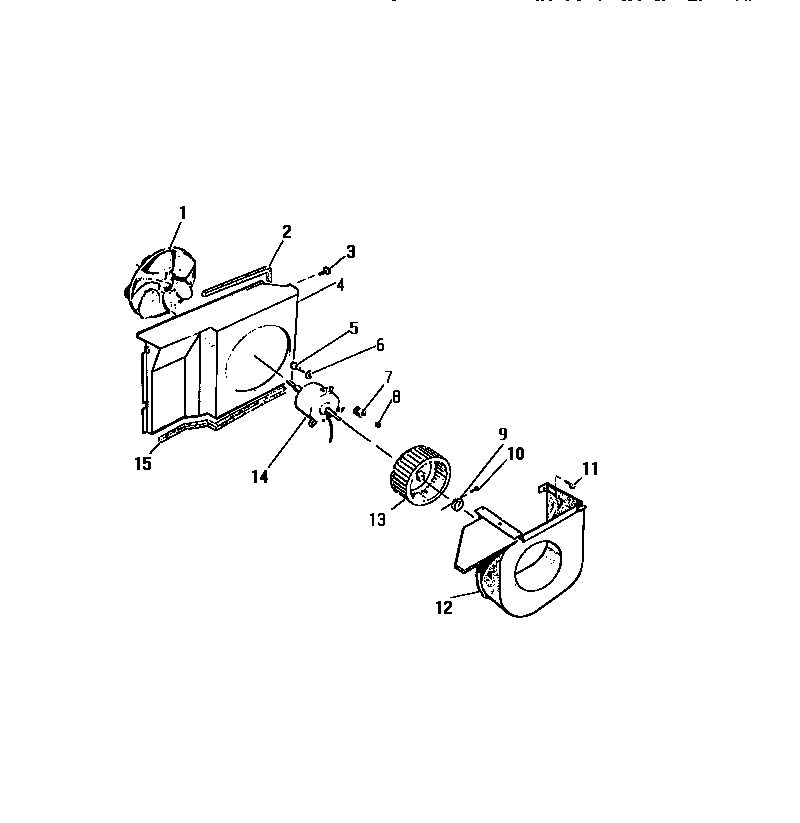

A2838D2 19 – SHROUD, BLOWER MOTOR (`CC` CABINET
Products
| Position | Product |
|---|---|
| *23135 | WCI 8013064 |
| 1 | BLADE-FAN |
| 2 | SEAL-TOP |
| 4 | WCI 8010973 |
| 4 | SHROUD |
| 5 | SCREW |
| 5 | SCREW-MOUNTING (3) |
| 7 | GROMMET-MOTOR |
| 8 | NUT |
| 9 | CLAMP |
| 10 | SCREW |
| 11 | SCREW-SCROLL |
| 12 | SCROLL |
| 12 | SCROLL, EVAPORATOR |
| 13 | WCI 8013065 |
| 13 | WCI 8016176 |
| 14 | WCI 8012998 |
| 14 | WCI 8016138 |
| 14 | WCI 8013021 |
| 15 | SEAL |
