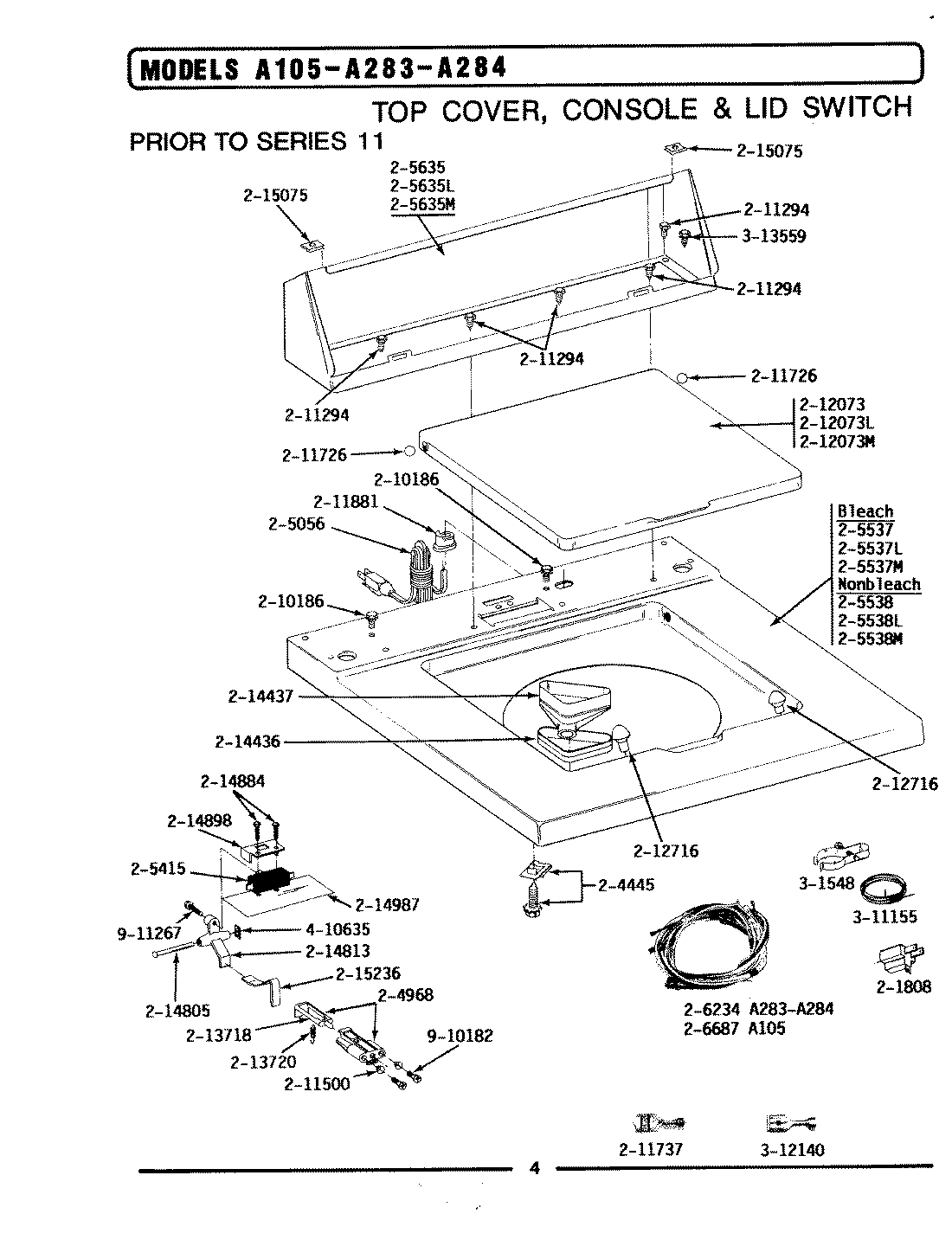

A284 06 – TOP COVER, CONSOLE & LID SWITCH

Products

Position	Product
NI	MAY 911267
NI	MAY 910182
1	MAY Y201808
2	MAY 204445
3	PLUNGER & BRACKET ASSEMBLY–W
4	MAY 205056
5	W10820036 Whirlpool Door Switch Kit
6	MAY 205537
9	MAY 205635
12	MAY 206234
13	MAY 210186
14	WP90767 Whirlpool Screw
15	MAY 211500
16	WP211726 Whirlpool Ball Assembly
17	MAY 211737
18	GROMMET
19	MAY 212073
22	WP212716 Whirlpool Lid Bumper
23	MAY 213718
24	WP213720 Whirlpool Spring Assembly
25	MAY 214436
26	MAY 214437
27	MAY 214805
28	MAY 214813
29	MAY 214884
30	MAY 214898
31	MAY 214987
32	MAY 215075
33	MAY 215236
34	MAY 301548
35	WP311155 Whirlpool Wire Assembly
36	MAY Y312140
37	MAY Y313559
38	MAY 410635
