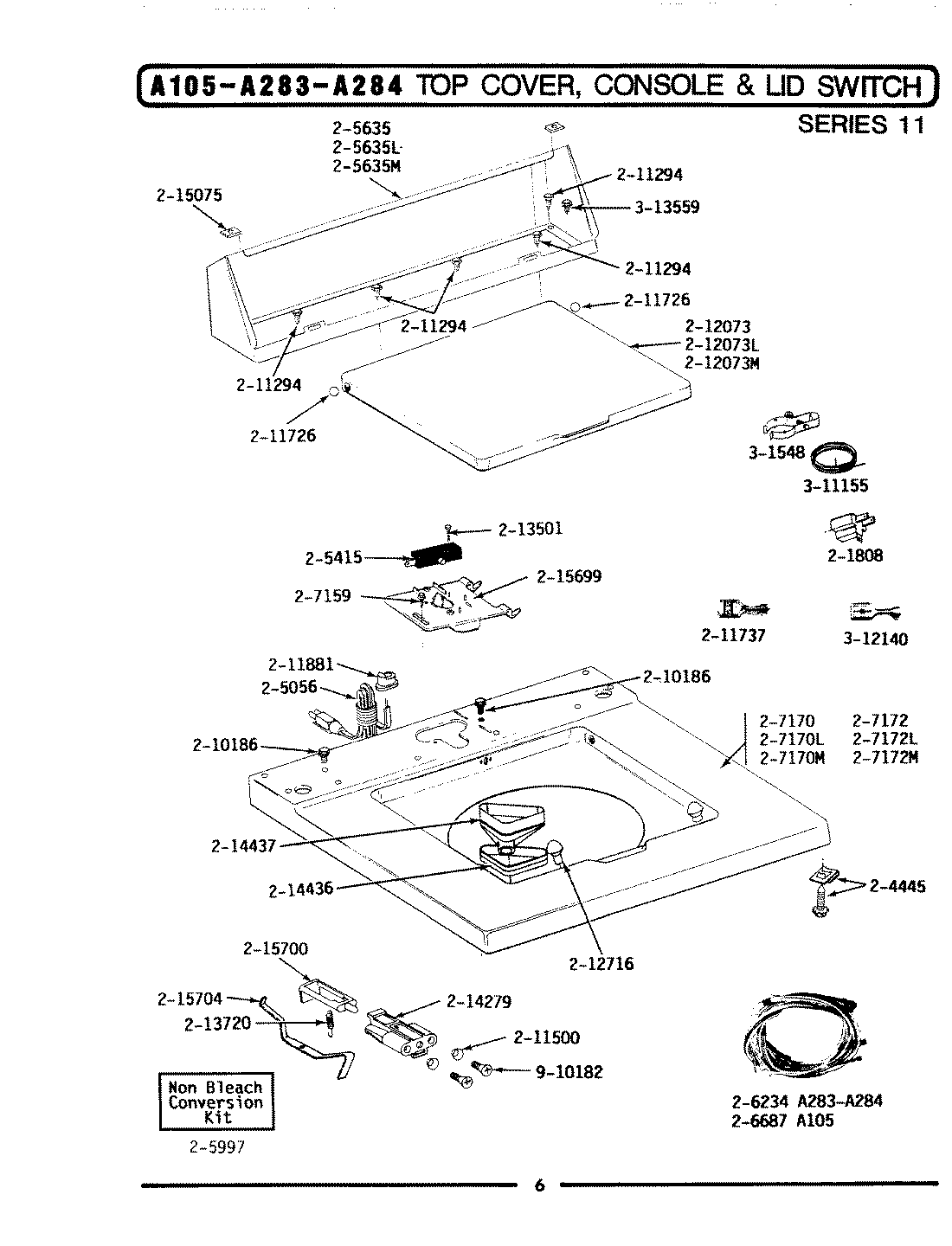

A284 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

A284 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Written by

in

A284 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Products

PositionProduct
NIMAY 910182
NIMAY Y313559
1MAY Y201808
2MAY 204445
3MAY 205056
4W10820036 Whirlpool Door Switch Kit
5MAY 205635
8MAY 205997
9MAY 206234
10SCREW
11MAY 207170
14MAY 210186
15WP90767 Whirlpool Screw
16MAY 211500
17WP211726 Whirlpool Ball Assembly
18MAY 211737
19GROMMET
20MAY 212073
23WP212716 Whirlpool Lid Bumper
24MAY 213501
25WP213720 Whirlpool Spring Assembly
26MAY 214279
27MAY 214436
29MAY 215075
30MAY Y215699
31MAY 215700
32MAY 215704
33MAY 301548
34WP311155 Whirlpool Wire Assembly
35MAY Y312140
