A2B602DXALYA ROOM AIR CONDITIONER

A2B602DXALYA ROOM AIR CONDITIONER

Written by

in

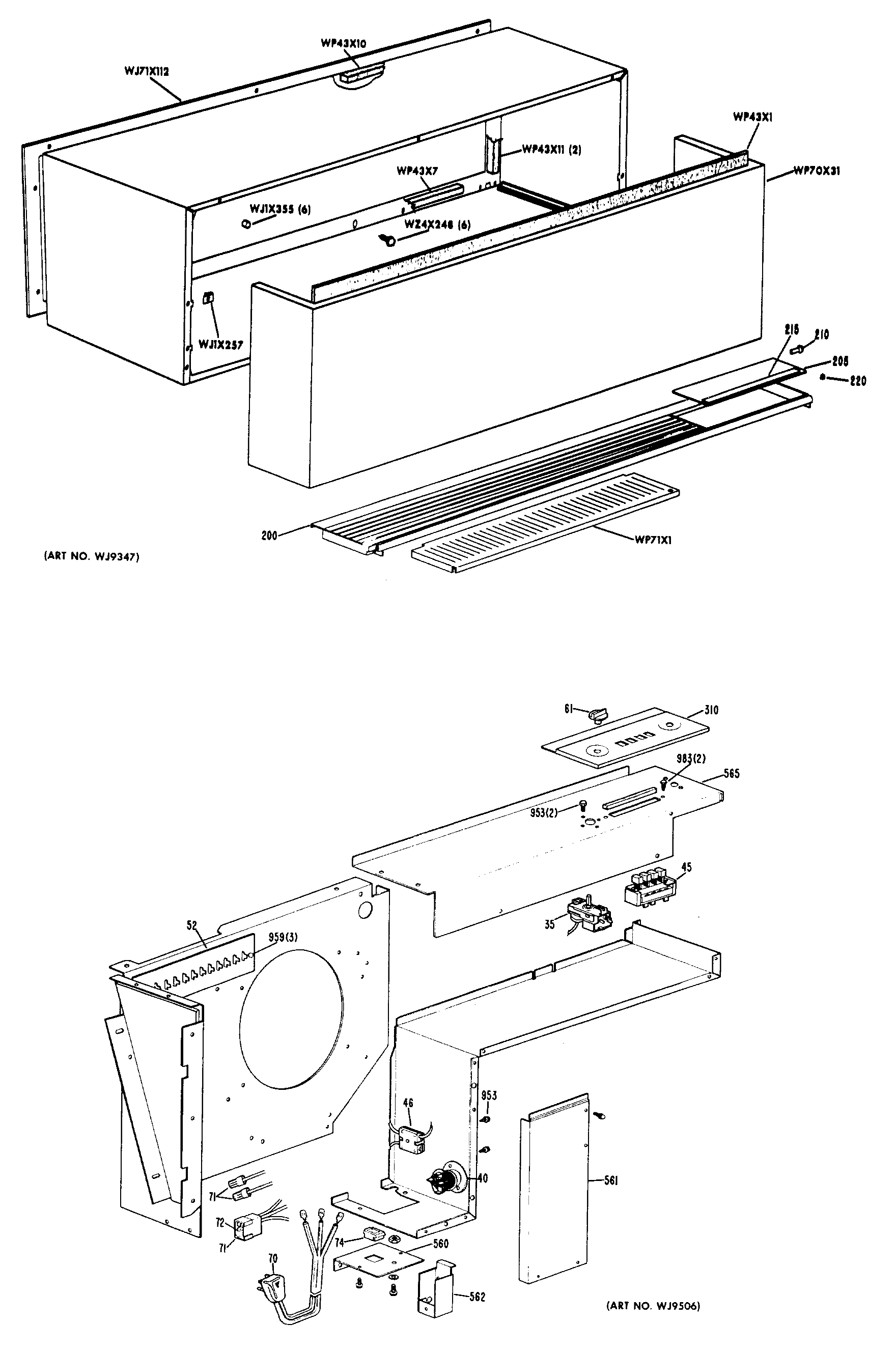

A2B602DXALYA ROOM AIR CONDITIONER

Products

Position	Product
10	CAPACITOR, FAN/RUN
20	GEN WP23X0009
25	GEN WP94X0001
35	GEN WP28X0014
45	GEN WP26X0004
52	GEN WP03X0001
54	GEN WJ03X0171
55	GEN WP85X0002
61	GEN WP12X0002
65	KNOB SPRING
70	GEN WJ35X0102
74	GROMMET CORD POWER
100	GEN WJ98X0517
110	GEN WJ88X0158
120	GEN WP87X0002
160	CAPILLARY .039 CUT TO 15
160	CAPILLARY .054 CUT TO 16
165	GEN WJ56X0037
165	GEN WP56X0001
180	GEN WJ74X0039
185	GEN WP78X0008
186	GEN WP76X0001
187	GEN WP78X0006
190	GEN WJ73X0047
191	GEN WJ02X0153
195	GEN WP78X0010
199	GEN WJ85X0109
200	GEN WP71X0003
704	GEN WZ10X0155
705	GEN WJ01X0370
706	GEN WJ01X0368
713	GEN WJ03X0279
715	GEN WJ02X0392
715	GEN WJ02X0410
715	GEN WJ02X0264
715	GEN WJ02X0411
721	SLEEVE CAPILLARY THERM
740	WIRE CLIP SNAP-IN
815	GEN WP66X0006
851	GEN WP43X0005
852	GEN WP43X0006
853	GEN WP43X0004
854	GEN WP43X0007
900	GEN WP60X0006
900	GEN WP60X0003
901	GEN WP43X0003
902	GEN WJ60X0008
920	GEN WJ01X0521
922	GEN WJ01X0257
931	NUT & LOCKWASHER 10-32
944	GEN WZ05X0242
949	GEN WZ06X0100
952	SCREW 10-16 X 5/8" HEX
953	SCREW 6-32 X 1/4" HEX
955	GEN WZ04X0268
956	GEN WZ06X0108
957	SCREW 10-16 X 1/2" HEX
959	SCREW 10-16 X 1/2" HEX
963	SCREW 8-18 X 3/4" HEX
967	GEN WZ04X0275
974	GEN WZ04X0286
994	GEN WZ04X0362
998	GEN WP01X0003
998	GEN WP01X0006
5000	GEN WJ44X0083
5000	GEN WJ84X0029
5000	GEN WJ84X0031
5000	PUSHON TERMINAL 1/4" TAB
9999	GEN 30-7650
9999	GEN 30-1703
9999	GEN 31-6499
