A2RXNMFWB01 01 – CABINET PARTS – Aparts

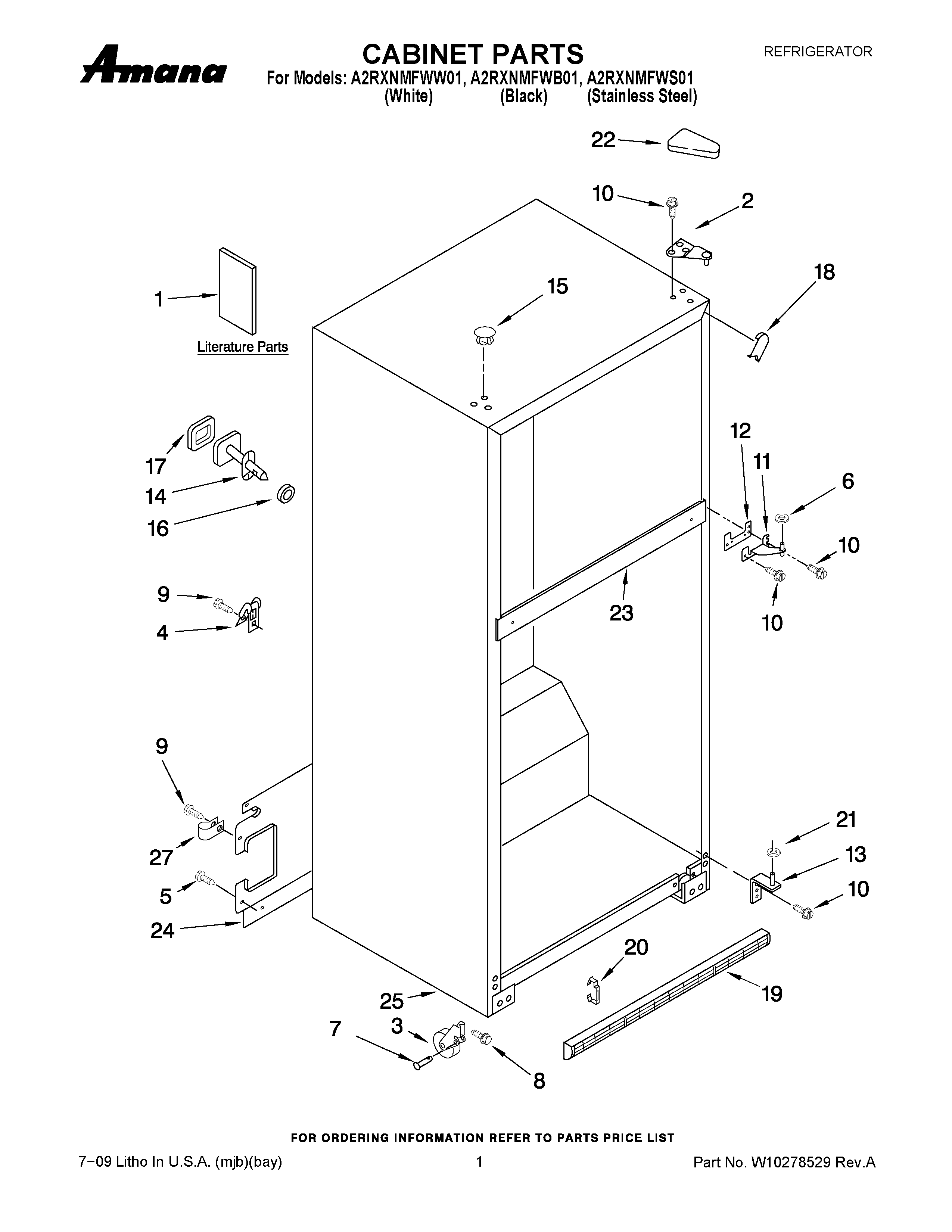

A2RXNMFWB01 01 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL
1	MAY W10249209
1	MAY W10249208
1	MAY W10142142
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2189410
3	MAY 2166108
4	MAY 549193
5	MAY 489427
6	WASHER, PLASTIC
7	MAY 2179826
8	MAY 3400504
9	MAY 8281265
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	MAY 2254473
15	HOLE PLUG
15	MAY 2183998
18	Corner Filler (2) (White)
18	MAY 2201017
19	Grille (Includes Illus. 20) (Black)
19	Grille (Includes Illus. 20) (White)
20	MAY 2189356
21	Washer (1/16)
22	MAY 2213363
22	Cover, Hinge (White)
24	MAY 2254576
25	LINER (NOT A SERVICEABLE PART)
27	CLAMP, TUBE
