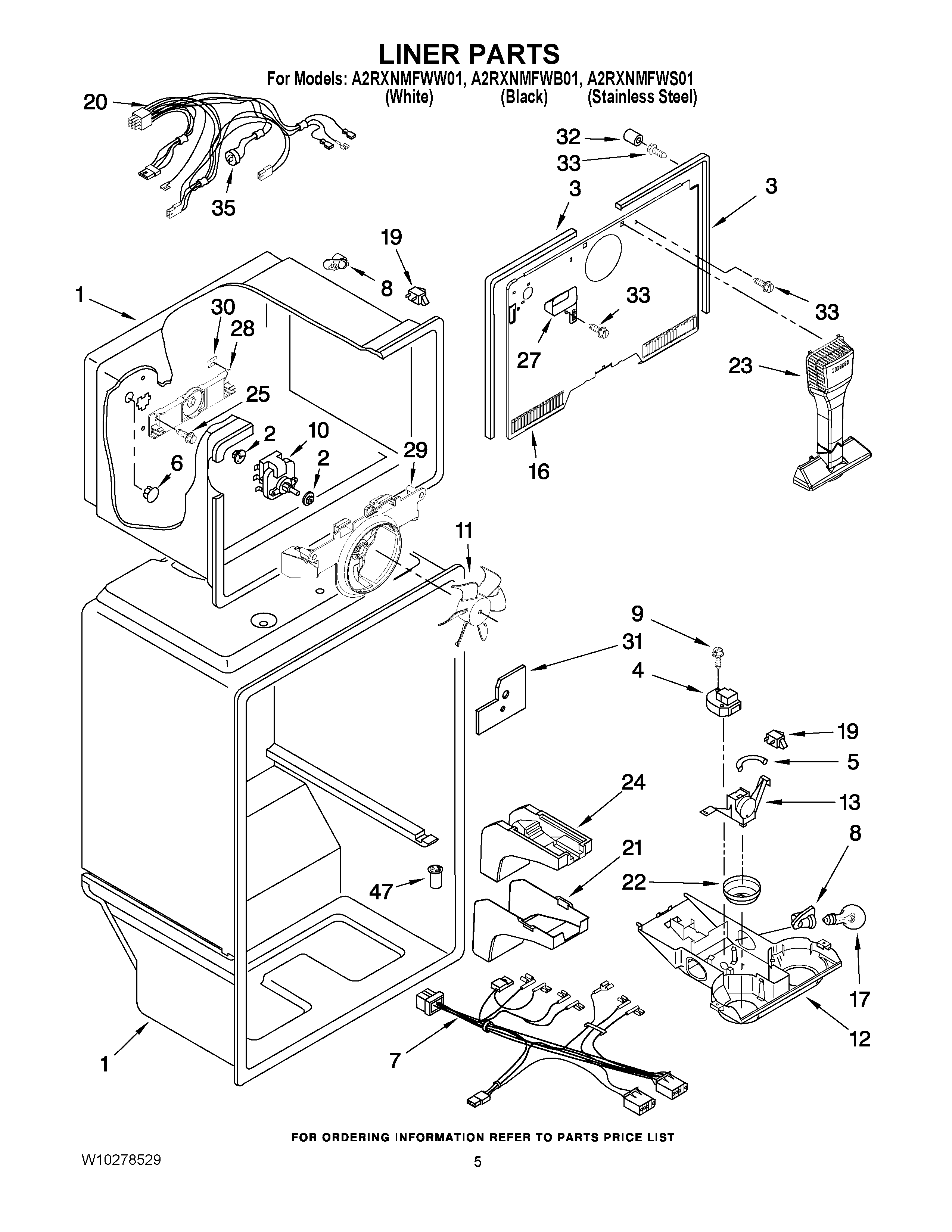

A2RXNMFWW01 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254360
4	MAY 2314156
5	Thermostat Tube Barrier
6	MAY 941839
7	Wire Assembly, Control Box
8	Socket, Light
9	Screw, 6-20 x 1-1/16
10	MAY W10208121
11	Fan Blade
12	MAY 2218381
13	THERMOSTAT
16	Cover-Evaporator
17	Light Bulb (2)
19	MAY 1118894
20	Wire Assembly, Freezer Compartment (Includes Item 35)
21	MAY 2176281
22	MAY 2202885
23	MAY 2254354
24	MAY 2189452
25	Screw
27	MAY 2205003
28	Bracket, Fan Back
29	Bracket,
30	Retainer-Screw Fan Motor
31	MAY 2204639
32	CAP BUSHING
33	MAY 489478
35	MAY 2321800
47	Valve
