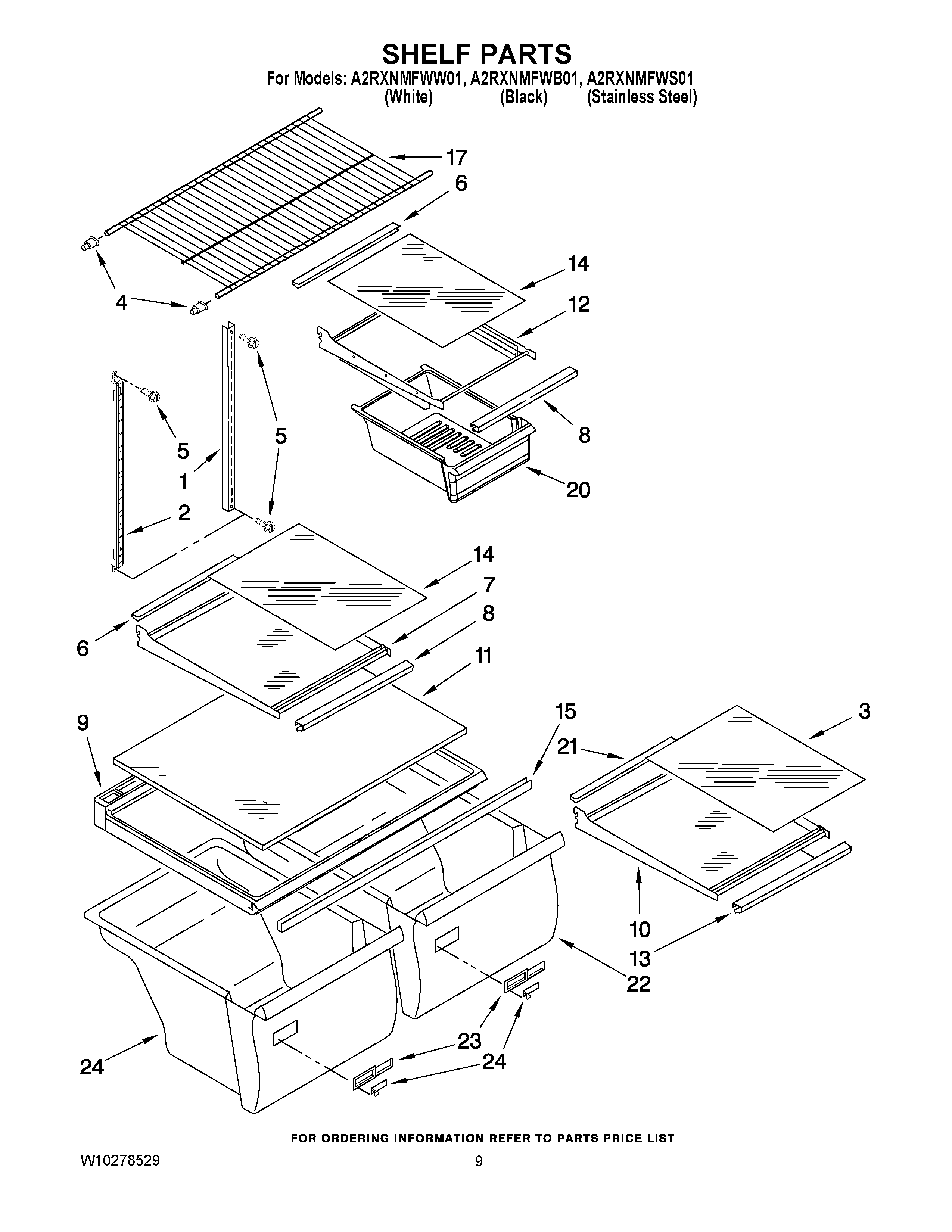

A2RXNMFWW01 05 – SHELF PARTS

Products

Position	Product
1	MAY 2210522
2	MAY 2300520
3	Glass, Shelf Full
4	MAY 2163762
5	MAY 489478
6	Trim-Shelf-Rear
7	Shelf, Cantilever
8	Trim-Shelf-Front
9	MAY W10221200
10	Frame Assy
11	Insert, Crisper Cover
12	Pan Shelf, Cantilever
13	TRIM,SHELF FRONT
14	MAY 2174694
15	Crisper Support Cantilever
17	MAY 2189454
20	MAY 2218132K
21	MAY 2188689
22	Pan, Crisper (13-Inch) (Includes 17,20)
23	MAY 2212446
24	Slide, Humidity Control
