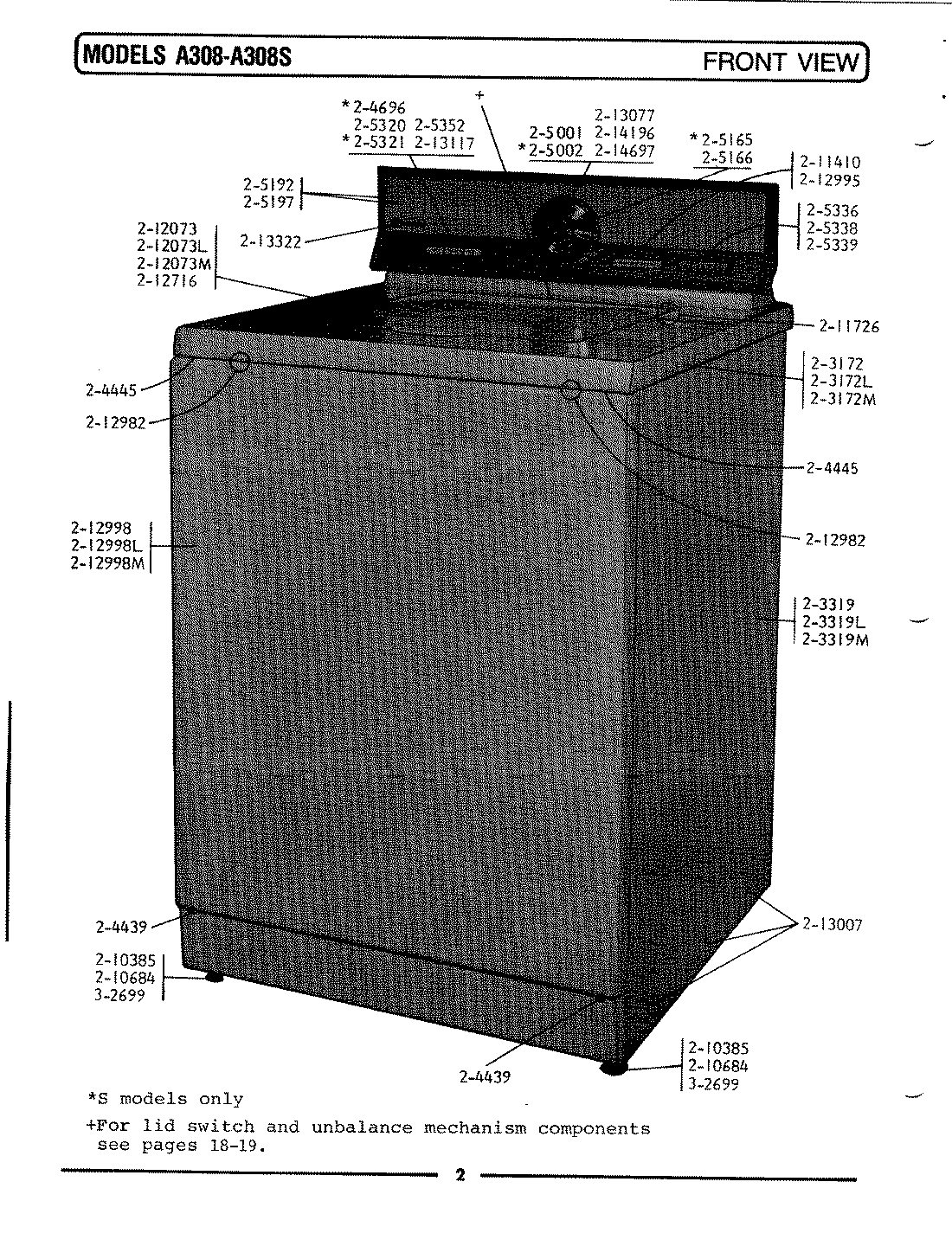

A308 05 – FRONT VIEW

Products

Position	Product
NI	WP90767 Whirlpool Screw
NI	MAY 213846
1	MAY 203172
4	MAY 203319
7	SCREW & FSTNER ASSY (FT. PNL)
8	MAY 204445
10	MAY 205001
13	MAY 205166
14	MAY 205192
15	MAY 205197
16	MAY 205320
18	MAY 205336
19	MAY 205338
20	MAY 205339
21	MAY 205352
22	WP210385 Whirlpool Lock Nut
23	WP210684 Whirlpool Dishwasher Leveling Leg Pad
25	MAY 211410
26	WP211726 Whirlpool Ball Assembly
27	MAY 212073
30	WP212716 Whirlpool Lid Bumper
31	MAY 212982
32	MAY 212995
33	MAY 212998
36	213007 Whirlpool Screw #12
37	MAY 213077
38	WP67006908 Whirlpool Refrigerator Screw
39	MAY 213322
41	MAY 214196
42	MAY 214697
43	LEG, ADJUSTABLE (W/NUT)—S

No products found
