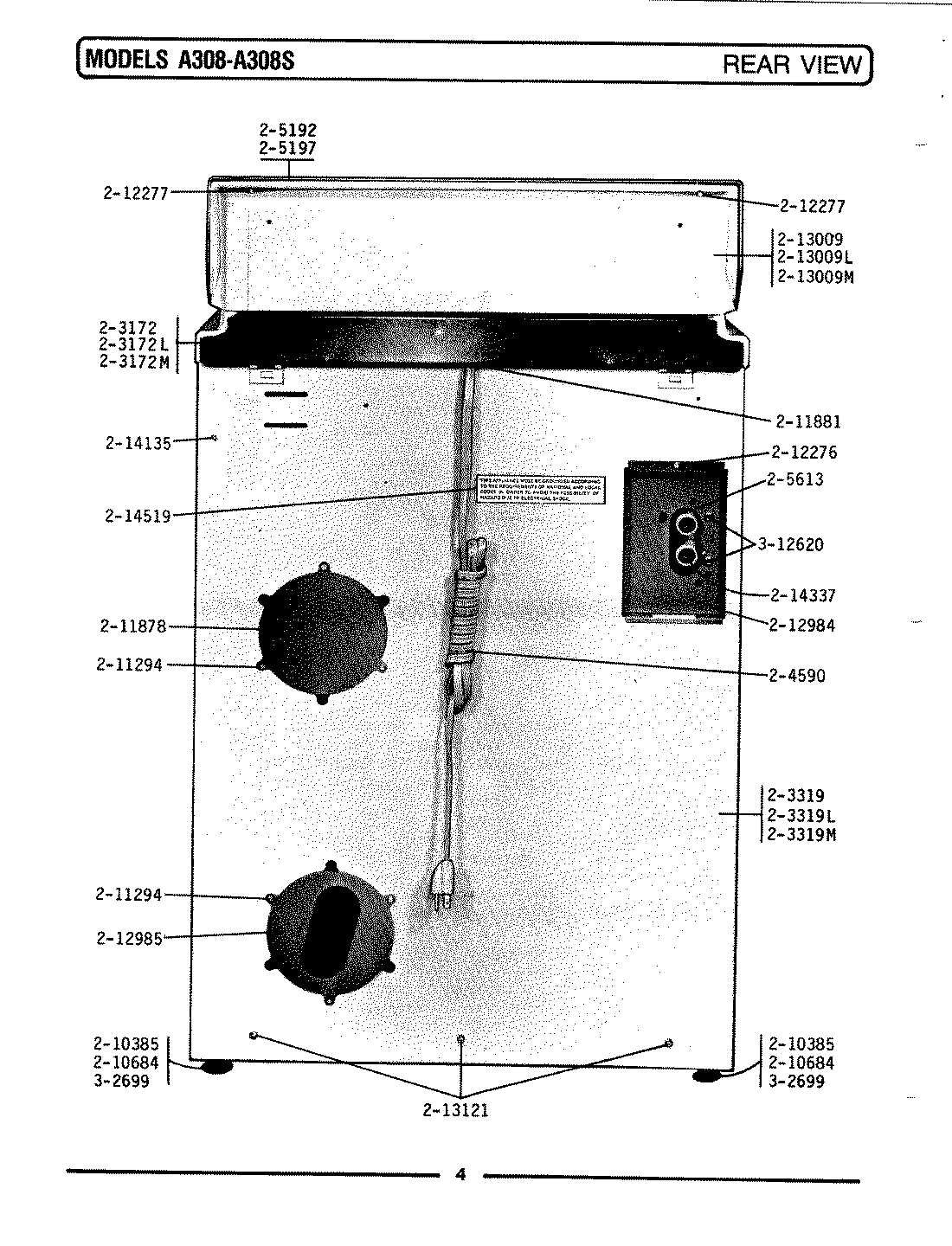

A308 06 – REAR VIEW

Products

Position	Product
NI	MAY Y201808
NI	MAY 301548
NI	WP311155 Whirlpool Wire Assembly
2	MAY 203172
5	MAY 203319
8	MAY 204590
9	MAY 205192
10	MAY 205197
11	205613 Whirlpool Washer Water Inlet Valve
12	WP210385 Whirlpool Lock Nut
13	WP210684 Whirlpool Dishwasher Leveling Leg Pad
14	WP90767 Whirlpool Screw
15	MAY 211878
16	GROMMET
17	MAY 212276
18	WP1163283 Whirlpool Air Conditioner Screw
19	MAY 212984
20	MAY 212985
21	MAY 213009
24	WPW10346892 Whirlpool Screw
25	MAY 214135
26	WP96160 Whirlpool Washer Inlet Valve Screen
27	INSTRUCTION LABEL
29	LEG, ADJUSTABLE (W/NUT)—S
31	MAY 312620
