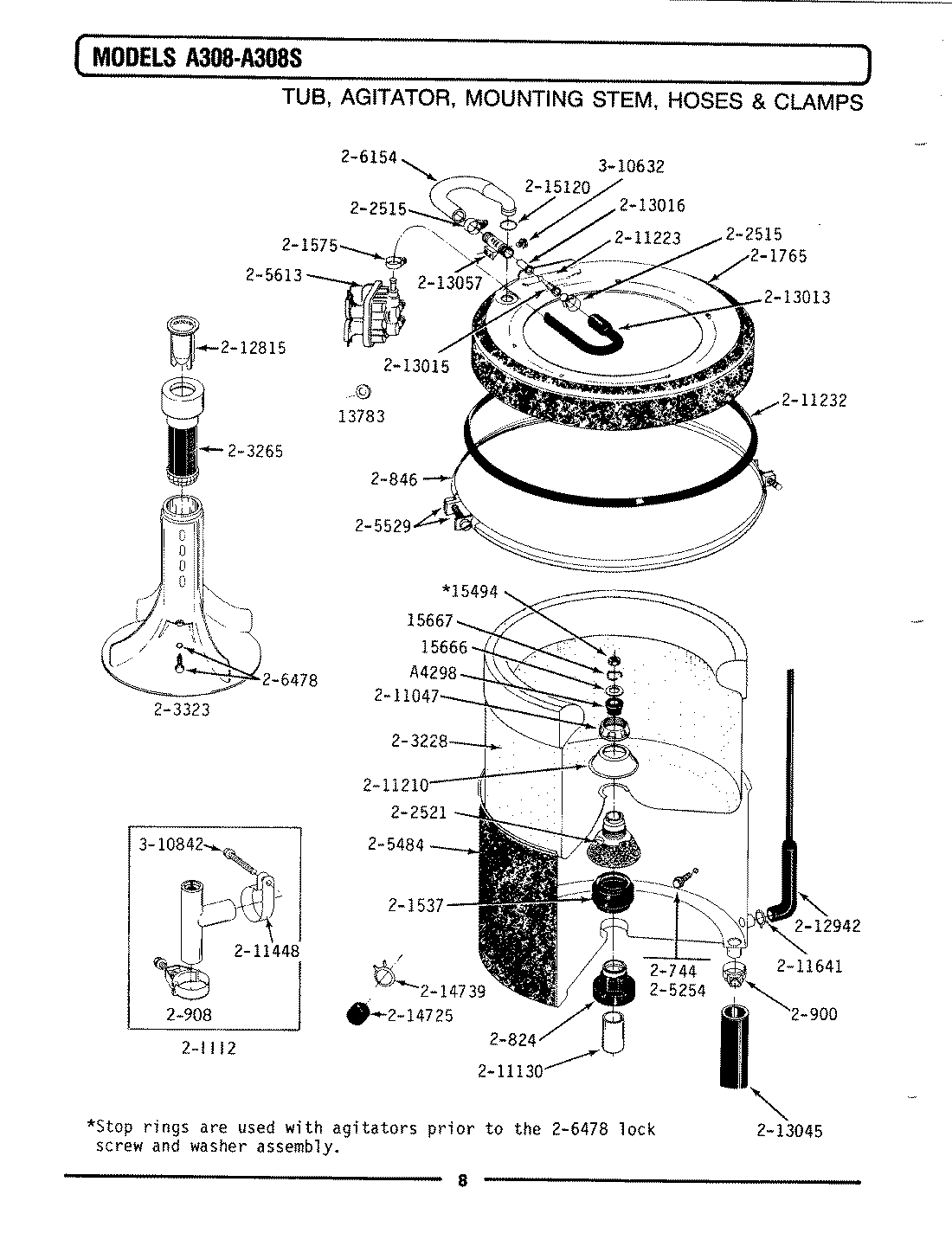

A308S 10 – TUB, AGITATOR, MTG. STEM, HOSES & CLAMPS

Products

Position	Product
NI	WP213015 Whirlpool Nozzle Injector Tube
NI	MAY 200682
NI	PART NOT USED
NI	MAY 212942
NI	MAY 205828
NI	MAY 215120
NI	MAY 213057
NI	MAY Y059137
NI	MAY Y059141
NI	MAY 212815
NI	MAY 214725
NI	WP213045 Whirlpool Dishwasher Tub to Pump Hose
NI	202860 Whirlpool Inlet Hose 5 FT
NI	MAY 202861
NI	205613 Whirlpool Washer Water Inlet Valve
NI	WP216201 Whirlpool Rubber Injector Valve
NI	WP213013 Whirlpool Injector Hose
NI	MAY 211704
NI	MAY Y015149
NI	WP76314 Whirlpool Fill Hose
NI	MAY 200681
NI	MAY 200757
NI	MAY 201486
NI	MAY Y310632
NI	MAY 200675
NI	MAY Y054867
NI	MAY Y310842
NI	MAY 14792
1	WP6-0A57420 Whirlpool Agitator Seal
2	MAY 13783
5	MAY Y015494
6	WPY015666 Whirlpool Washer Retainer
7	MAY Y015667
16	W10175939 Whirlpool Bolt Assembly
18	6-2040130 Whirlpool Washer Tub Bearing Kit
20	MAY 200900
21	MAY 200908
22	76660 Whirlpool Syphon Break with Clamps
24	MAY 201537
25	WP596669 Whirlpool Hose Clamp
26	MAY 201765
28	MAY 202521
31	PART NOT USED
45	MAY 203265
46	MAY 203323
47	MAY 204012
49	W10175938 Whirlpool Bolt
54	MAY 206154
55	MAY 206478
56	WP6-2110472 Whirlpool Nut Clamp
57	MAY 211100
58	MAY 211130
59	MAY 211210
60	MAY 211223
61	WP211232 Whirlpool Seal
62	MAY 211448
63	MAY 211618
64	WP285655 Whirlpool Hose Clamp
