A31000PAAT 04 – OVEN/BASE

A31000PAAT 04 – OVEN/BASE

Written by

in

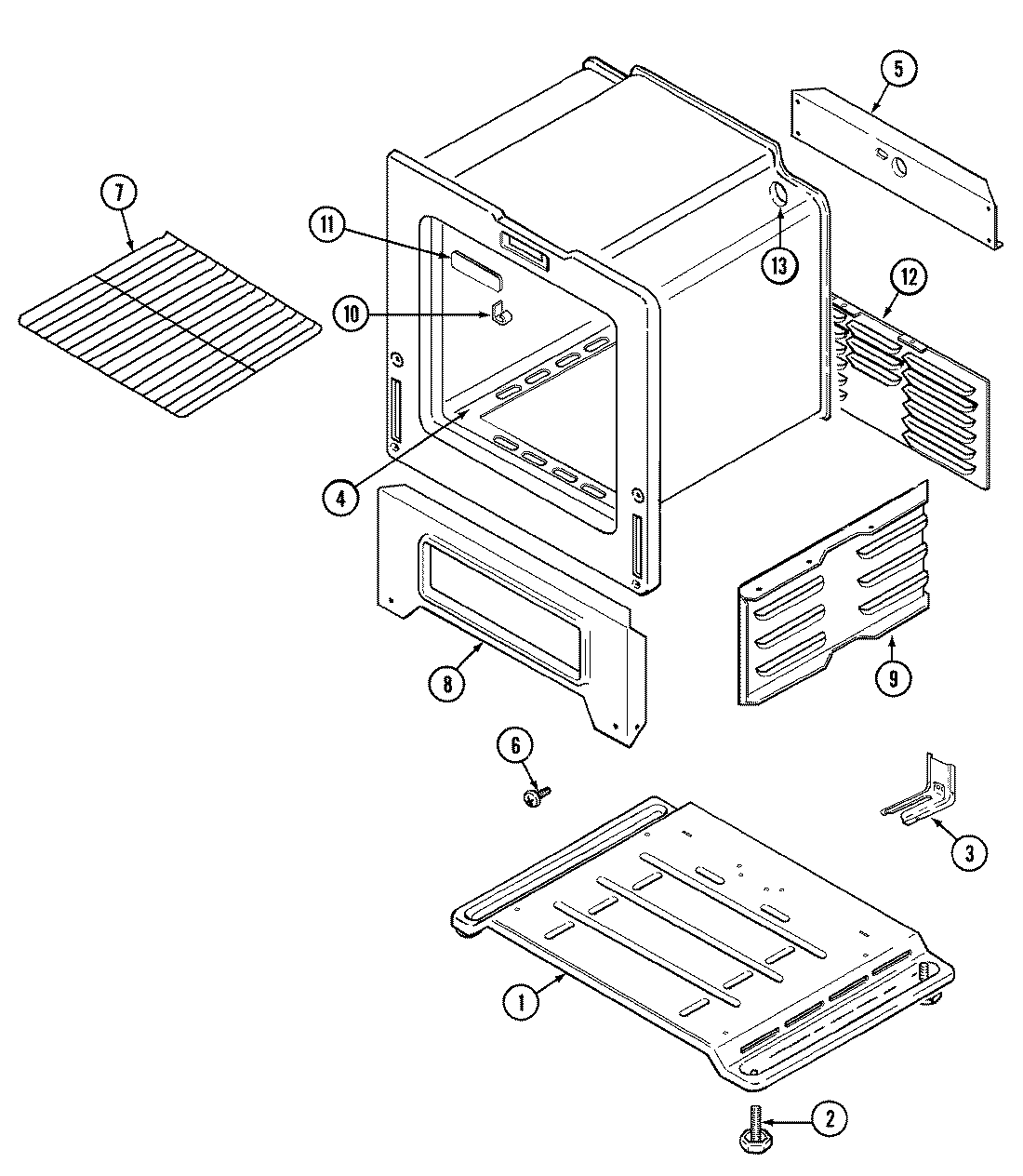

A31000PAAT 04 – OVEN/BASE

Products

PositionProduct
1MAY 74002372
2W11665456 Whirlpool Range Level Foot
3MAY 7101P344-60
3MAY 74002311
4MAY 74002376
4MAY 74002377
5MAY 74002378
7WPW10282492 Whirlpool Oven Rack
8MAY 74002327
8SCREW (8ABX1/2“-BLK)
9MAY 74002374
9MAY 74002375
10WP7112P004-60 Whirlpool Thermal Clip
11MAY 7718P013-60
12MAY 74002379
13SCREW
13MAY 74002380
