A3110PRW 05 – TOP ASSEMBLY – Aparts

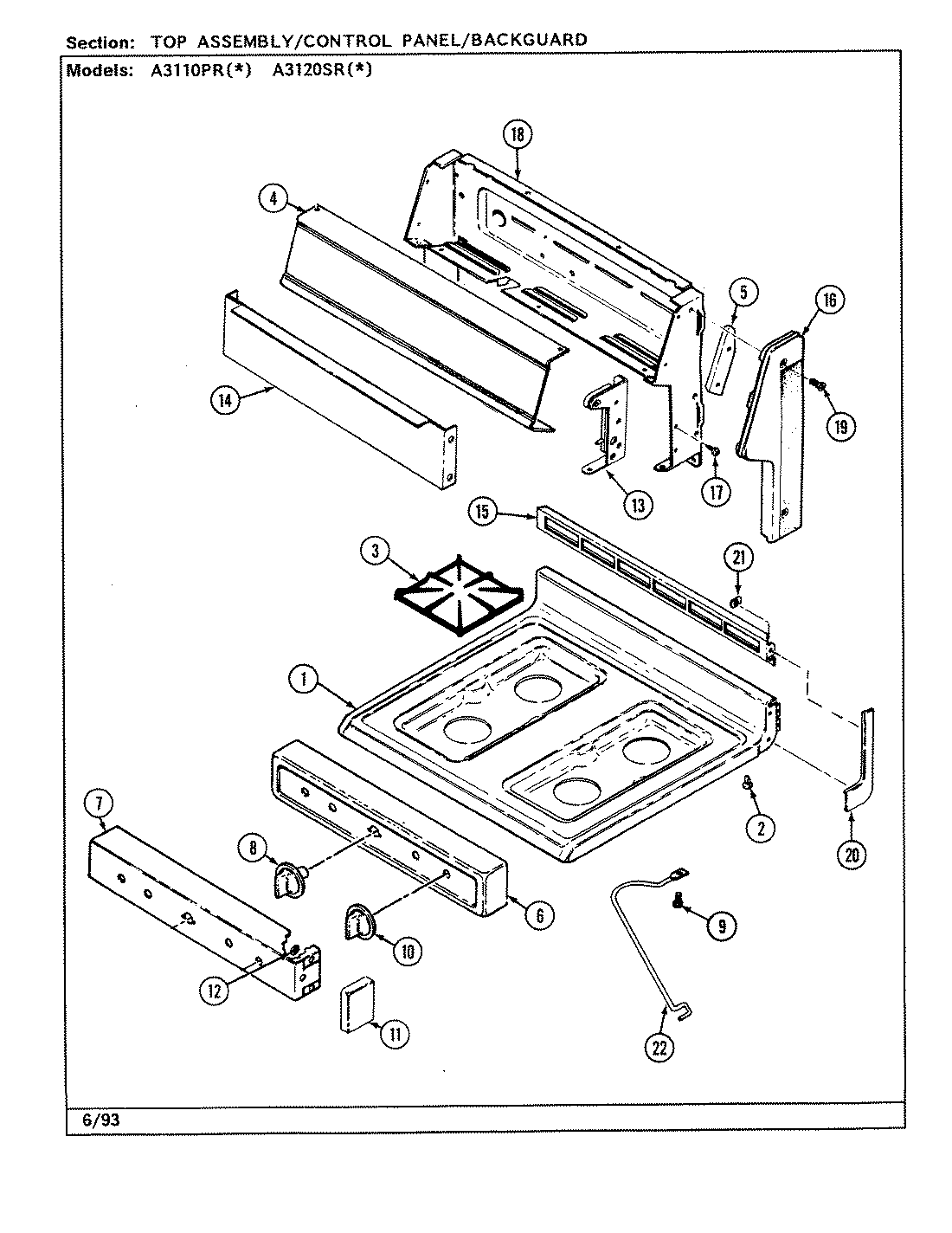

A3110PRW 05 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 8113P011-60
NI	MAY 3418A088-34
1	MAY 2001W081-81
2	MAY 8016P013-60
3	MAY 2003W026-00
4	MAY 2601F397-09
5	MAY 3807F436-45
5	MAY 3807F435-45
6	MAY 2616F085-09
7	MAY 7101P311-60
8	WP74002419 Whirlpool Thermal Knob
9	MAY 7101P280-60
10	WP7711P135-60 Whirlpool Knob
13	MAY 3418A087-34
14	MAY 3604F188-09
15	MAY 3608F042-09
16	WP98008545 Whirlpool Screw
16	MAY 7726P052-60
16	MAY 7726P051-60
17	MAY 7118P015-60
18	MAY 4001F088-51
19	MAY 7101P032-60
20	MAY 7746P031-60
20	MAY 7746P030-60
21	MAY 7103P129-60
22	MAY 7809P014-60
