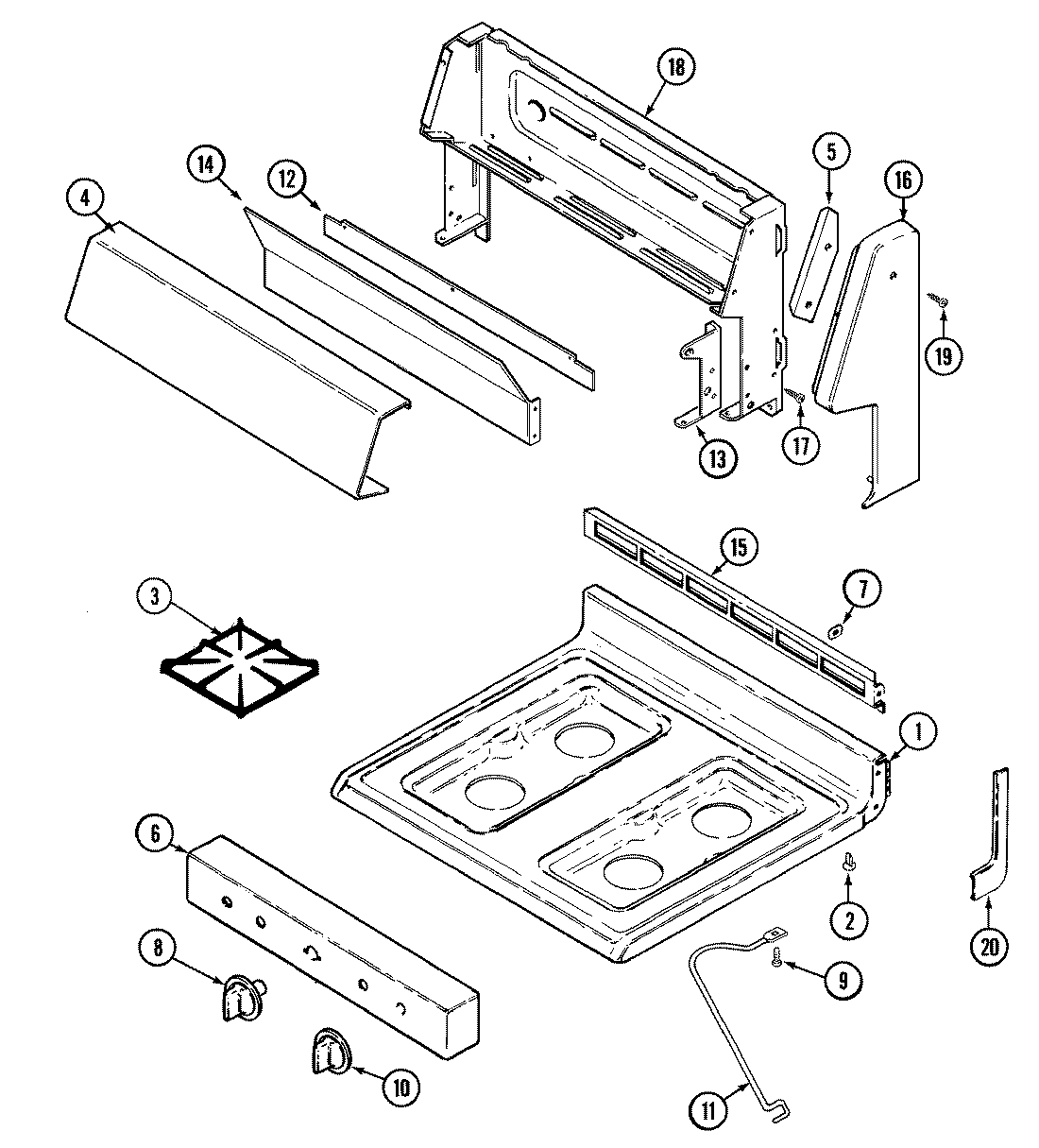

A3110XRWLT 04 – TOP ASSEMBLY/CONTROL PANEL/BACKGUARD
Written by
in
A3110XRWLT 04 – TOP ASSEMBLY/CONTROL PANEL/BACKGUARD
Products
Position
Product
NI
MAY 8113P042-60
NI
MAY 16002079
1
MAY 2001W086-81
2
MAY 8016P015-60
3
MAY 2003W026-00
4
MAY 2601F413-81
4
MAY 7719P062-60
5
MAY 3807F450-45
5
MAY 3807F449-45
6
MAY 2616F085-09
6
MAY 7101P329-60
7
MAY 7103P129-60
8
WP74002419 Whirlpool Thermal Knob
9
MAY 7101P280-60
10
WP7711P135-60 Whirlpool Knob
11
MAY 7809P020-60
12
MAY 8036P003-60
13
MAY 8114P348-60
13
MAY 3418D097-60
13
MAY 3418D098-60
14
MAY 3604F188-09
15
MAY 3608F042-09
16
MAY 7726P051-60
16
MAY 7726P052-60
16
MAY 7101P317-60
17
MAY 7118P015-60
18
MAY 4001F091-51
18
MAY 4005F448-45
19
WP98008545 Whirlpool Screw
20
MAY 7746P031-60
20
MAY 7746P030-60
←
