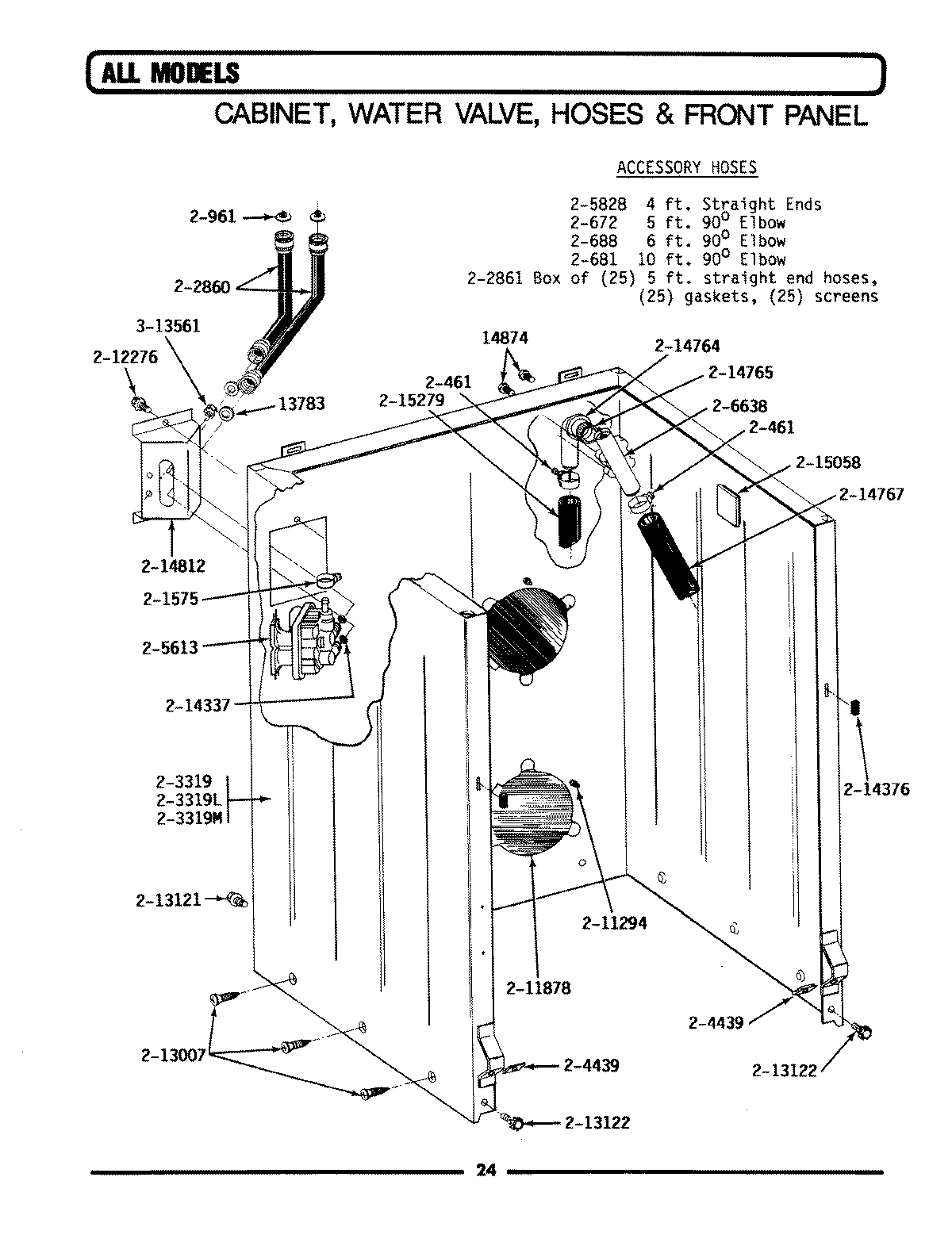

A312S 02 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Products

Position	Product
NI	MAY 206103
NI	MAY Y200832
NI	MAY 213846
NI	MAY 212982
NI	MAY 211149
NI	MAY 203237
1	MAY Y013783
2	WPY014874 Whirlpool Screw
3	MAY 200461
4	WP76314 Whirlpool Fill Hose
5	MAY 200681
8	MAY 200961
9	WP596669 Whirlpool Hose Clamp
10	202860 Whirlpool Inlet Hose 5 FT
11	MAY 202861
15	SCREW & FSTNER ASSY (FT. PNL)
16	205613 Whirlpool Washer Water Inlet Valve
17	MAY 205828
19	206638 Whirlpool Break Siphon Connector Kit
21	WP90767 Whirlpool Screw
22	MAY 211878
23	MAY 212276
27	213007 Whirlpool Screw #12
28	WPW10346892 Whirlpool Screw
29	WP27001200 Whirlpool Screw
31	WP96160 Whirlpool Washer Inlet Valve Screen
32	MAY 214376
33	MAY 214764
34	WP214765 Whirlpool Gasket
35	MAY 214767
36	MAY 214812
37	MAY 215058
38	WP22003410 Whirlpool Drain Hose
39	MAY Y313561
