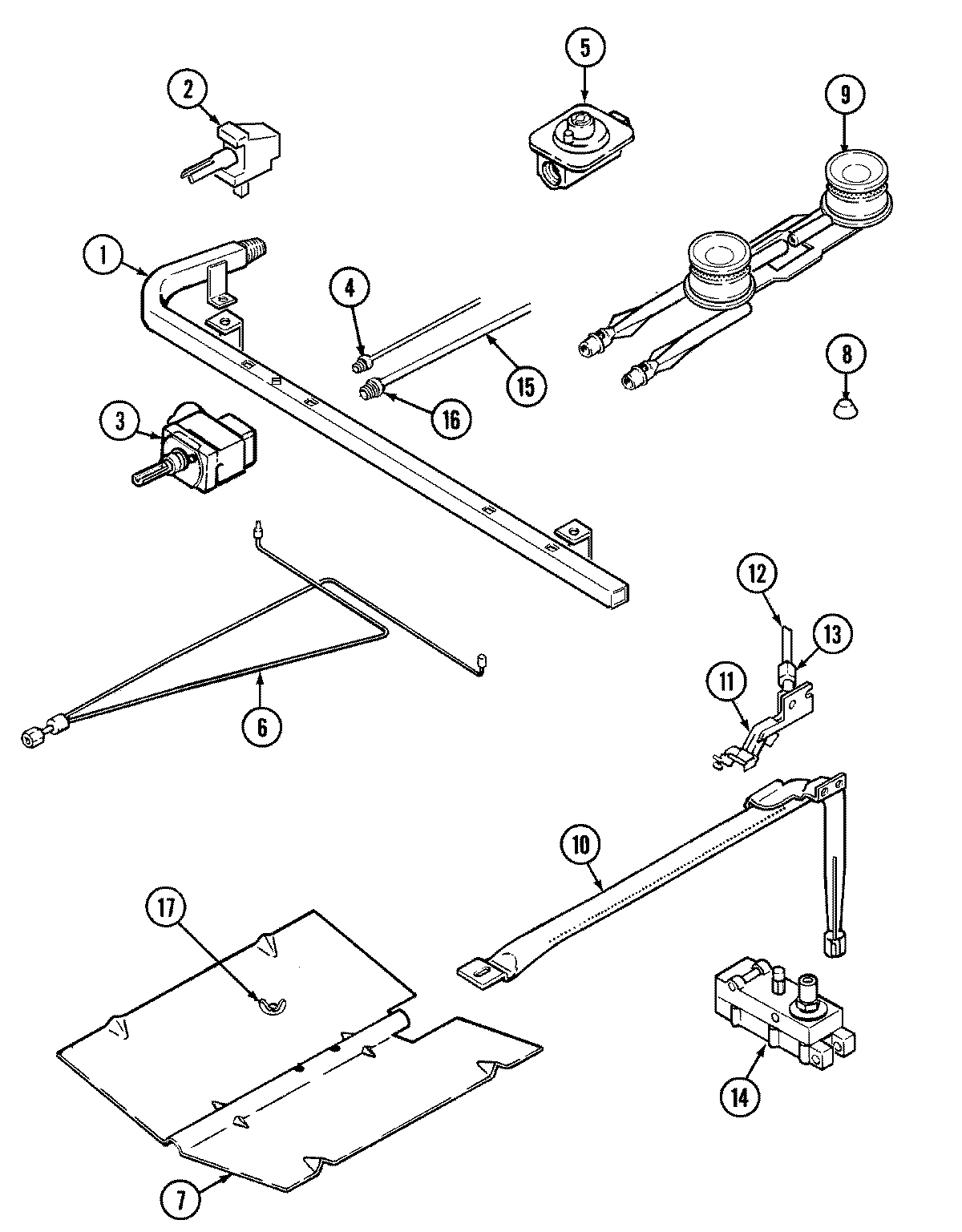

A31700PATT 01 – GAS CONTROLS

Products

Position	Product
1	MAY 74002424
2	WP8273096 Whirlpool Screw
2	MAY 74002673
3	MAY 7101P010-60
3	MAY 74002425
4	MAY 1555222
5	MAY 7510P001-60
6	MAY 7103P128-60
6	MAY 74002660
7	MAY 74002393
8	MAY 74002435
9	MAY 74003332
9	SCREW (8BX3/8-NI)
10	SCREW
10	MAY 74002434
11	MAY 7432P068-60
11	SCREW (10-24X5/16-NI)
12	MAY 3414F108-44
13	MAY 1555261K
14	W11693756 Whirlpool Screw Assembly
14	MAY 74002672
15	MAY 74001062
16	MAY 1555251
17	NUT, WING
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
