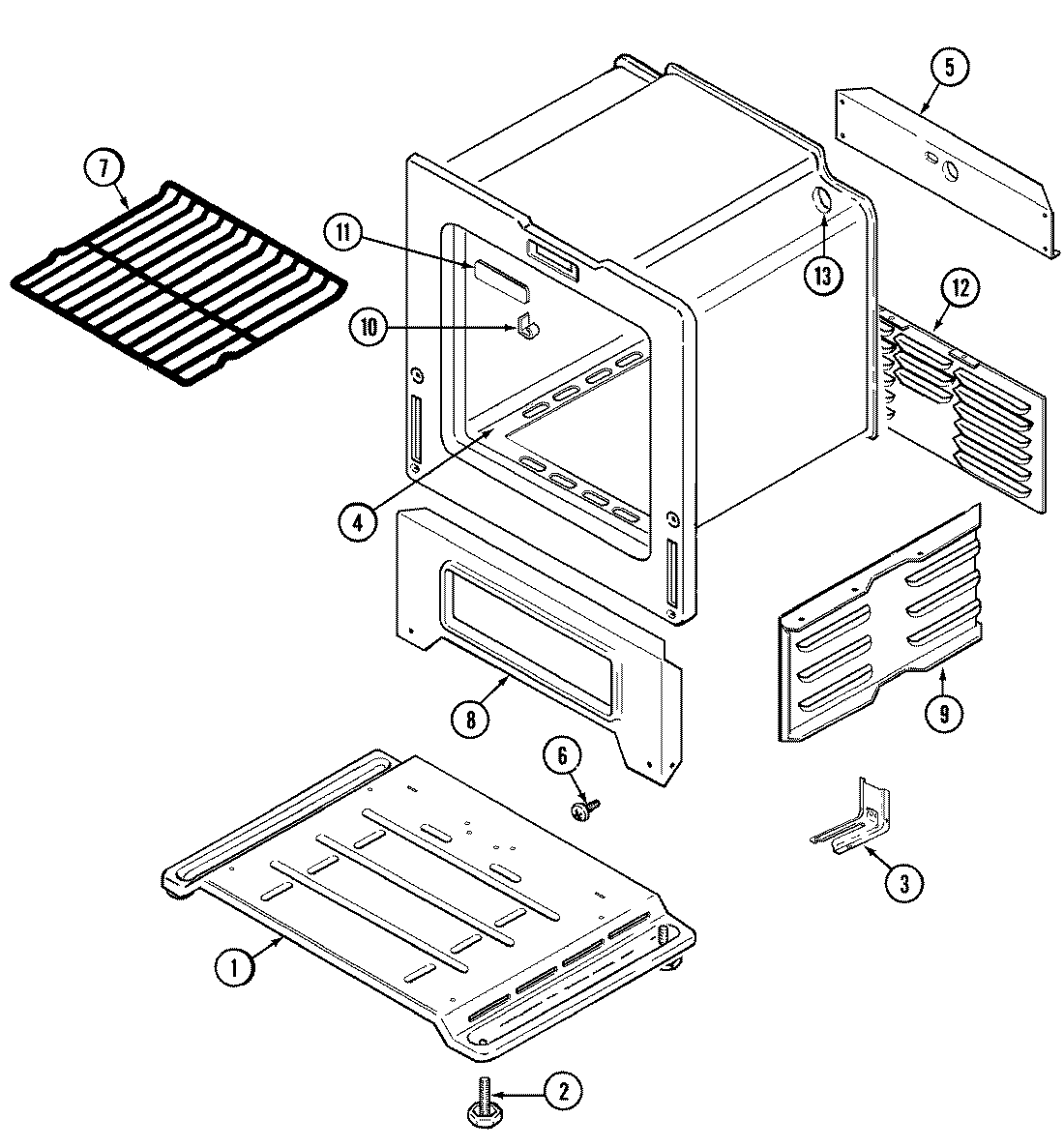

A31700PATT 02 – OVEN/BASE

A31700PATT 02 – OVEN/BASE

Written by

in

A31700PATT 02 – OVEN/BASE

Products

PositionProduct
1MAY 74001064
2W11665456 Whirlpool Range Level Foot
3MAY 74002311
3MAY 7101P344-60
4MAY 74002376
4MAY 74002377
5MAY 74002378
6SCREW (8ABX1/2“-BLK)
7WPW10282492 Whirlpool Oven Rack
8MAY 74003007
9MAY 74002375
9MAY 74002374
10WP7112P004-60 Whirlpool Thermal Clip
11PLUG, LOCK SLOT
12SCREW
12MAY 74002379
13MAY 74002380
