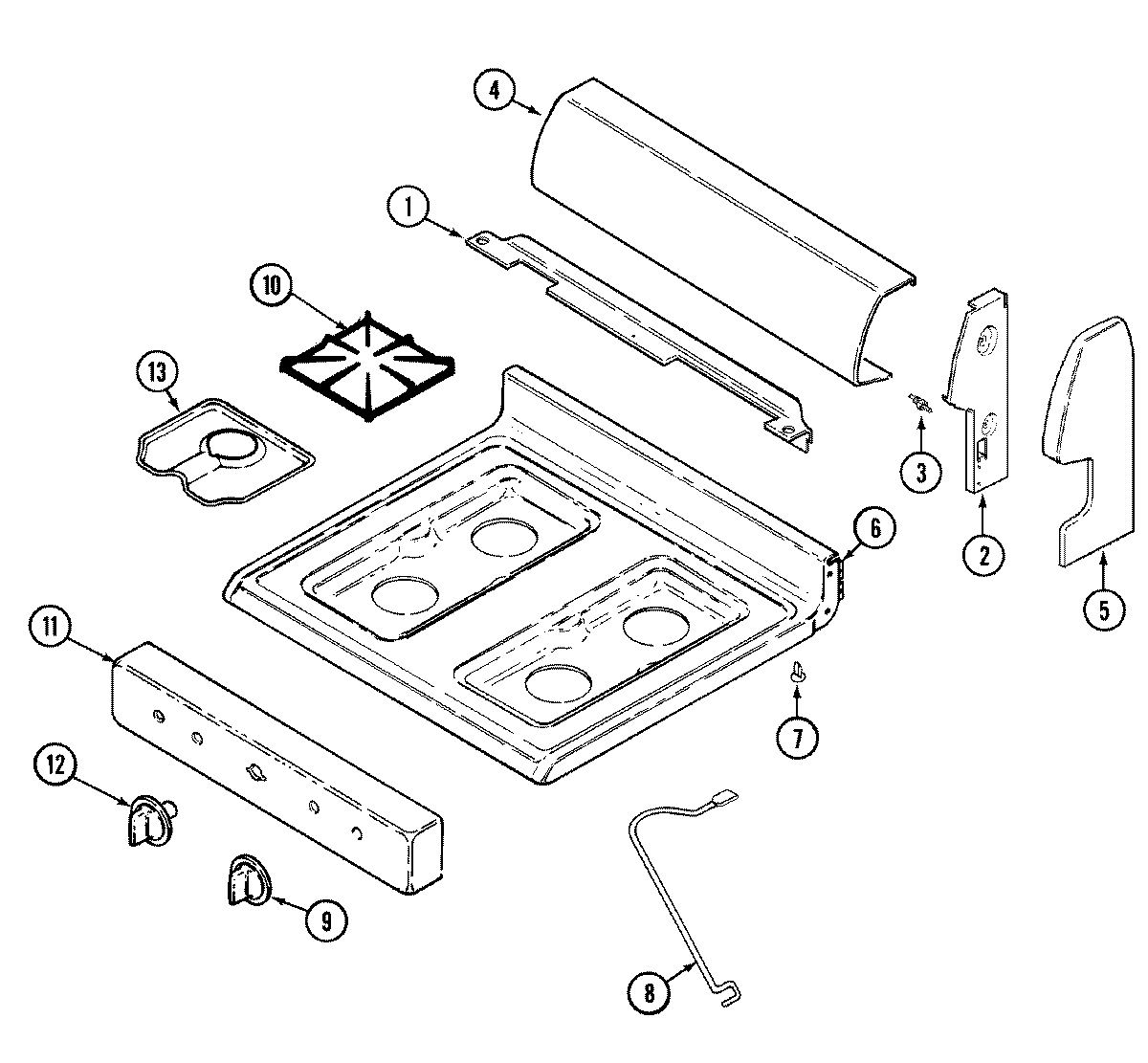

A31700SAWL 02 – CONTROL PANEL/TOP ASSEMBLY

A31700SAWL 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

A31700SAWL 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
NIMAY 74002355
NIMAY 16010161
1MAY 74002409
1MAY 74002401
2SCREW (8BX3/8-NI)
2MAY 74002402
2MAY 74002403
3MAY 74002404
4MAY 74002654
4SCREW
5MAY 74002656
5MAY 74002655
5MAY 74002408
5WP98008545 Whirlpool Screw
6MAY 74002410
7MAY 8016P015-60
8MAY 74001170
9WP74002353 Whirlpool Control Knob
10MAY 2003W026-00
11MAY 74002411
12WP74002419 Whirlpool Thermal Knob
13MAY 5401A433-60
