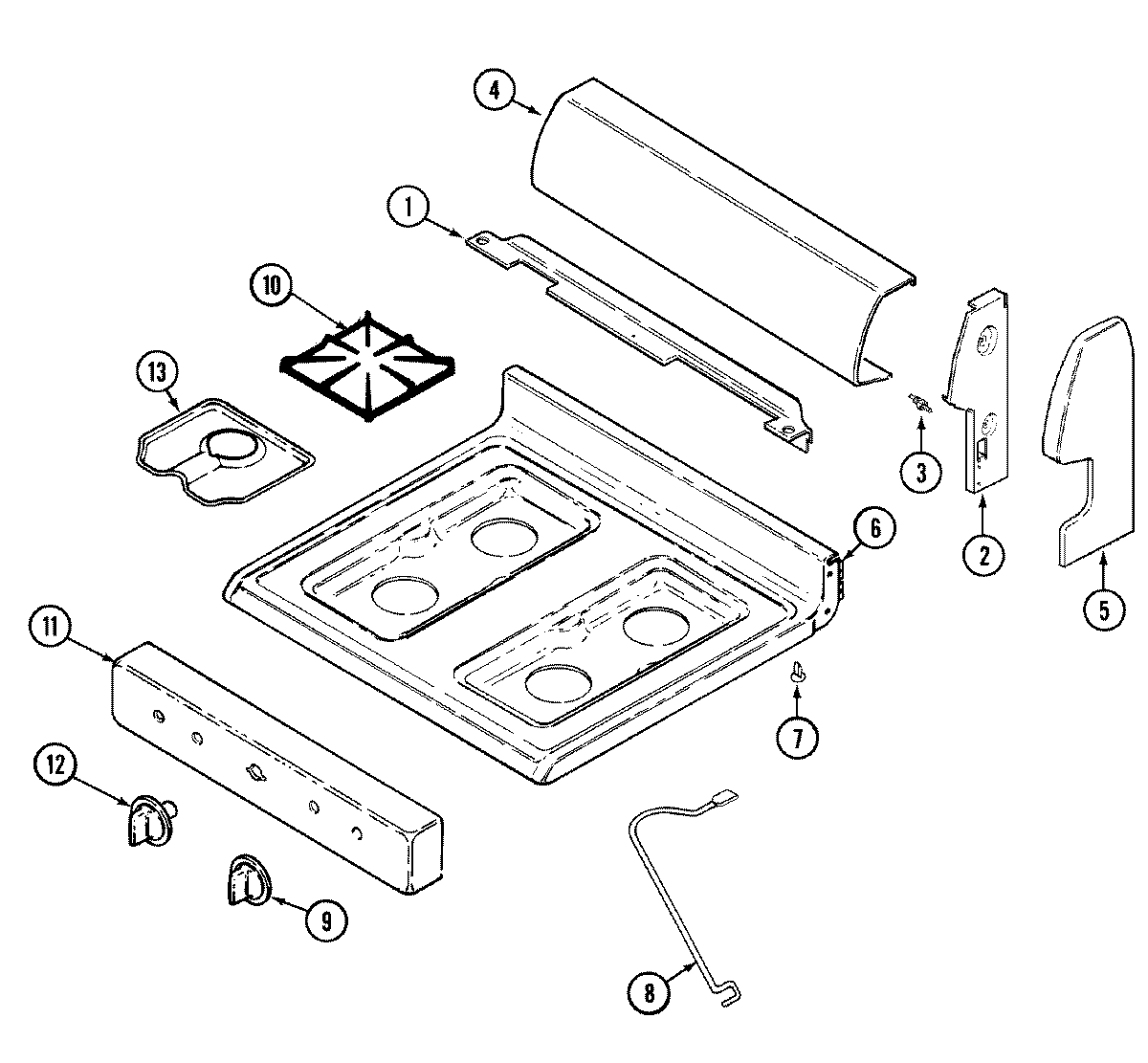

A31700XAWL 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

A31700XAWL 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
NI	MAY 74002355
NI	MAY 16010161
1	MAY 74002409
1	MAY 74002401
2	SCREW (8BX3/8-NI)
2	MAY 74002402
2	MAY 74002403
3	MAY 74002404
4	MAY 74002654
4	SCREW
5	MAY 74002656
5	MAY 74002655
5	MAY 74002408
5	WP98008545 Whirlpool Screw
6	MAY 74002410
7	MAY 8016P015-60
8	MAY 74001170
9	WP74002353 Whirlpool Control Knob
10	MAY 2003W026-00
11	MAY 74002411
12	WP74002419 Whirlpool Thermal Knob
13	MAY 5401A433-60
