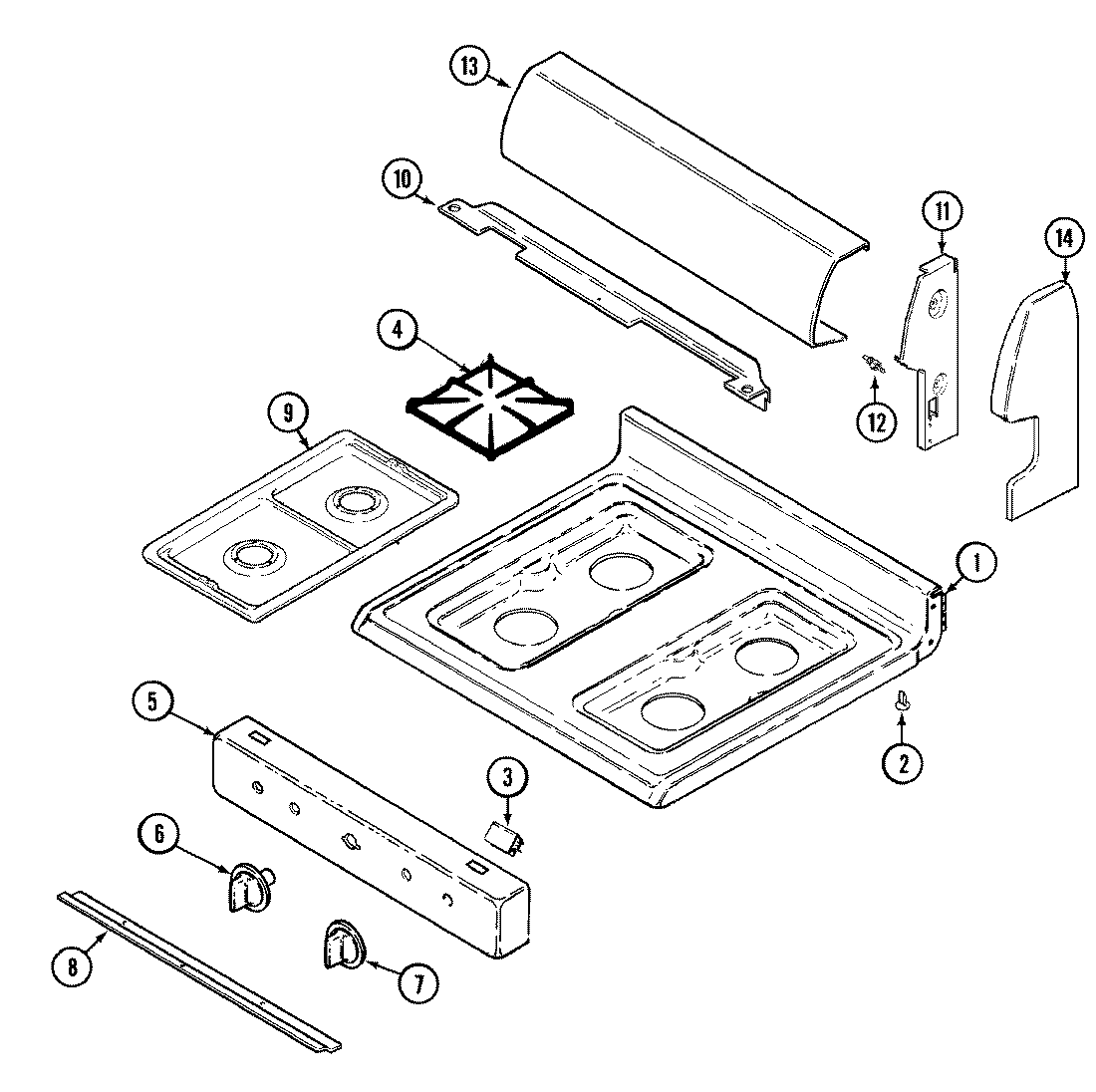

A31703PAWL 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

A31703PAWL 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
NI	MAY 74002355
NI	MAY 16002079
1	MAY 74002440
2	MAY 8016P015-60
3	MAY 7112P087-60
4	WP7518P464-60 Whirlpool Burner Grate
4	MAY 74001653
4	MAY 2003W027-00
5	MAY 7101P074-60
5	MAY 74002411
5	MAY 7109P015-60
6	MAY 7731P096-60
7	MAY 74002744
8	MAY 74002447
9	MAY 5401A452-60
10	MAY 74002401
10	MAY 74002409
11	SCREW (8BX3/8-NI)
11	MAY 74002402
11	MAY 74002403
12	MAY 74002404
13	MAY 74002654
13	SCREW
14	WP98008545 Whirlpool Screw
14	MAY 74002408
14	MAY 74002655
14	MAY 74002656
