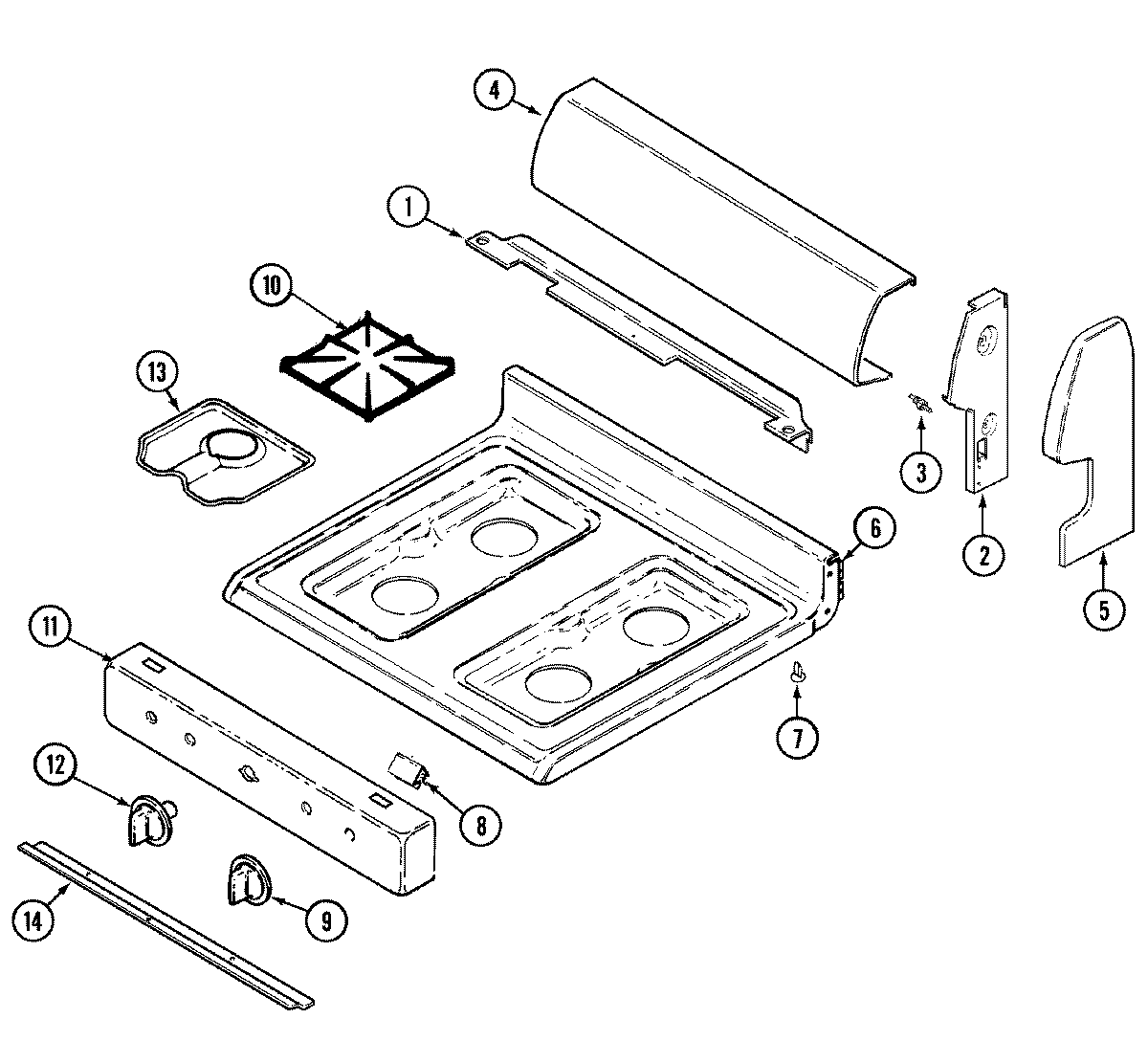

A31703SAAL 02 – CONTROL PANEL/TOP ASSEMBLY

A31703SAAL 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

A31703SAAL 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
NIMAY 12001323
NIMAY 16010161
1MAY 7101P209-60
1MAY 74002401
1MAY 74002409
2MAY 74002403
2MAY 74002402
2SCREW (8BX3/8-NI)
3MAY 74002404
4WP98008545 Whirlpool Screw
4SCREW
4MAY 74002654
5MAY 74002655
5MAY 74002656
5MAY 74002432
6MAY 74002441
7MAY 8016P015-60
8MAY 7112P087-60
9MAY 74002744
10WP7518P464-60 Whirlpool Burner Grate
10MAY 74001653
11MAY 7109P015-60
11MAY 7101P074-60
11MAY 74002411
12MAY 7731P096-60
13MAY 5401A452-60
14MAY 74002447
14MAY 74002355
