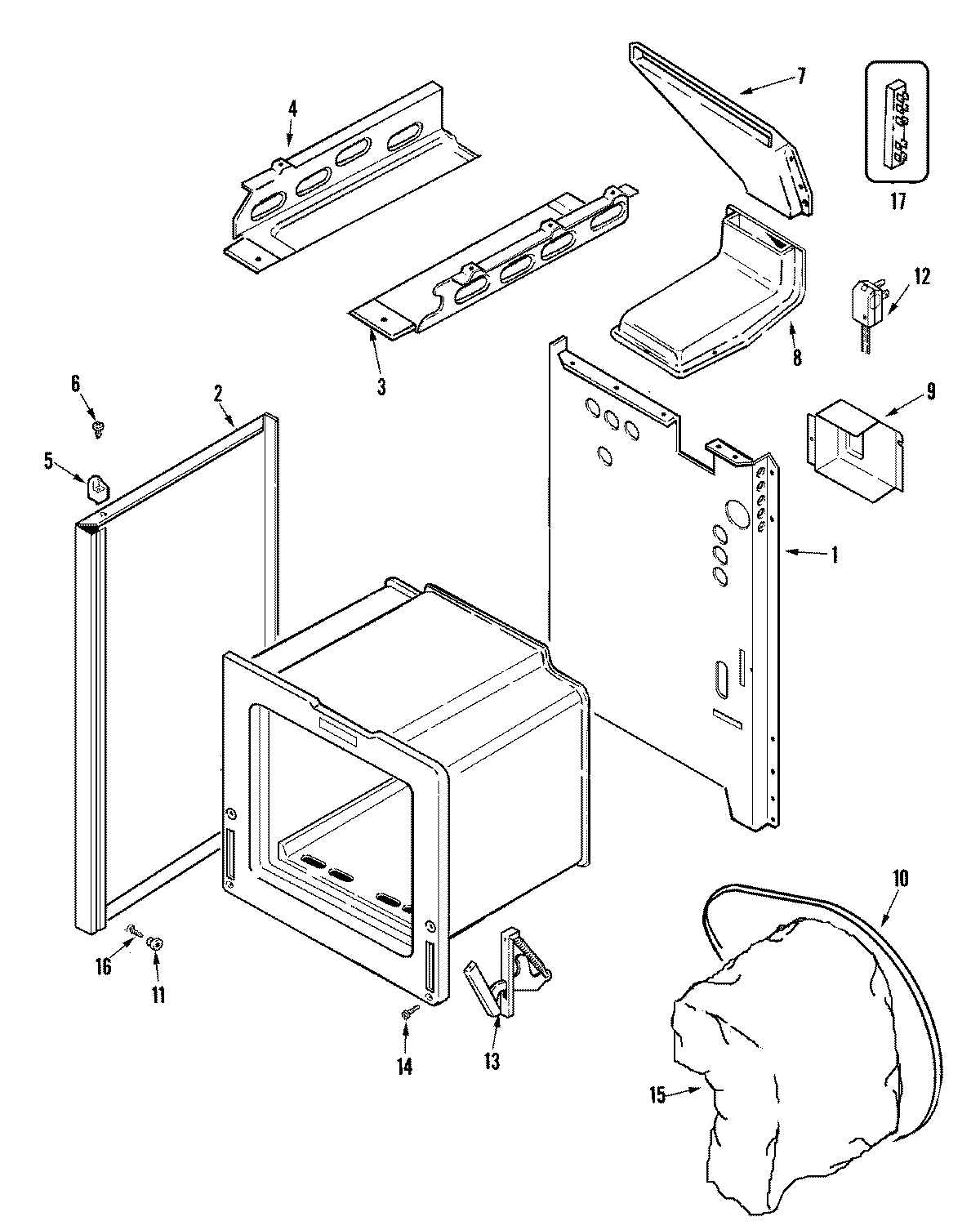

| 1 | MAY 74002364 |
| 1 | MAY 74006548 |
| 1 | GROMMET |
| 1 | MAY 8008P021-60 |
| 2 | MAY 74001504 |
| 3 | MAY 74002632 |
| 4 | MAY 74002633 |
| 5 | SPACER, MAIN TOP (LT) |
| 5 | SPACER, MAIN TOP (RT) |
| 6 | MAY 7101P313-60 |
| 7 | MAY 74002412 |
| 8 | MAY 74002367 |
| 8 | WP74003976 Whirlpool Screw |
| 9 | MAY 74002368 |
| 9 | SCREW |
| 10 | MAY 74002369 |
| 11 | MAY 8004P024-60 |
| 12 | MAY 7402P043-60 |
| 13 | MAY 7106P055-60 |
| 13 | W10876639 Whirlpool Door Hinge Assembly |
| 14 | SCREW (10-24X5/16-NI) |
| 15 | MAY 74002370 |
| 15 | MAY 74002371 |
| 16 | MAY 74001449 |
| 17 | SCREW (8BX3/8-NI) |
| 17 | MAY 7401P037-60 |
