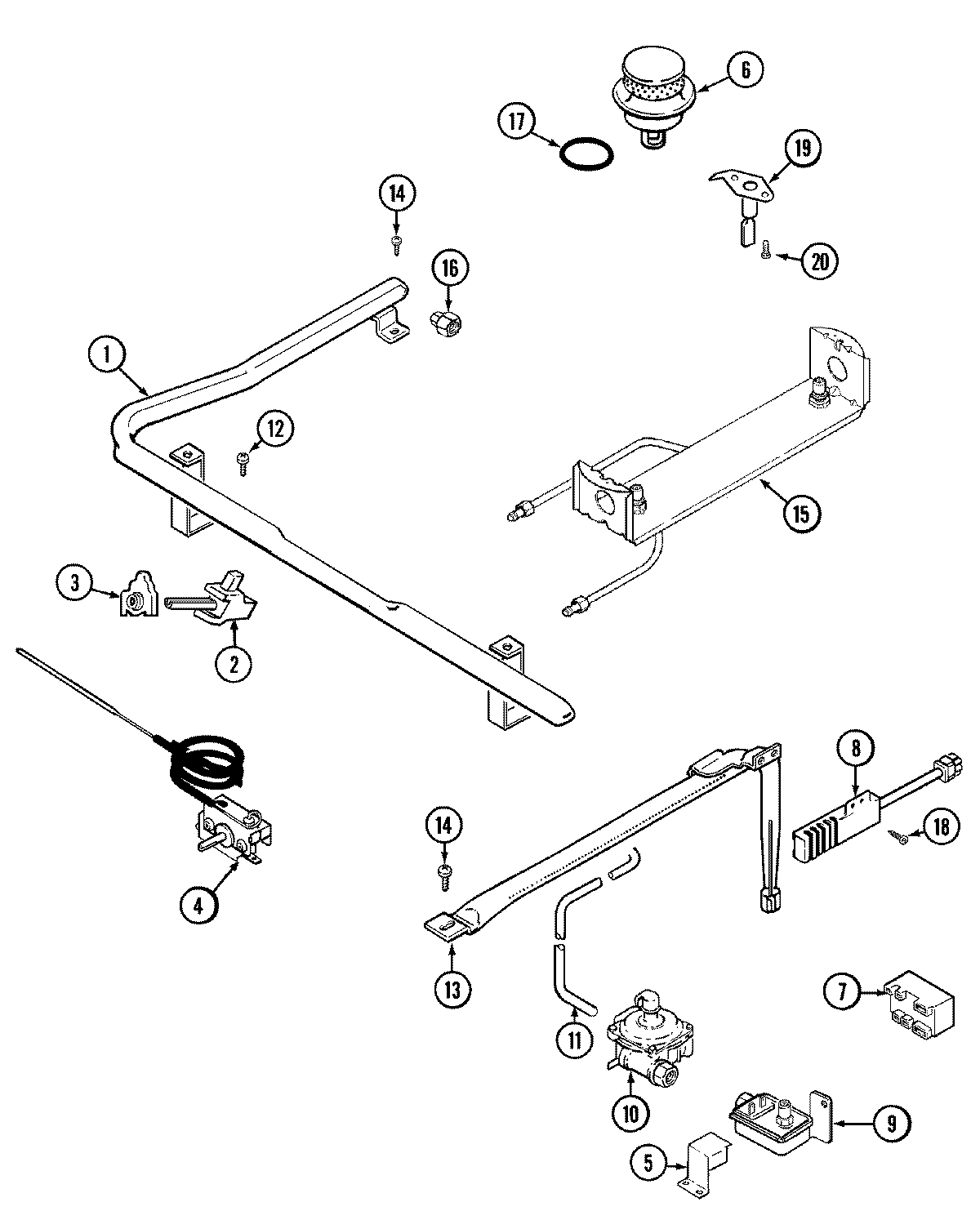

A3277XRA-N 04 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	MAY 5140D038-60
NI	MAY 5195D078-60
NI	MAY 5125A312-60
1	MAY 7513P120-60
2	MAY 7502P219-60
3	MAY 7403P284-60
4	MAY 7101P280-60
4	MAY 7404P087-60
5	MAY 4005F433-51
6	MAY 3412D017-09
7	MAY 7431P022-60
7	MAY 3807F432-45
8	MAY 7432P067-60
9	MAY 7501P137-60
10	MAY 7507P123-60
10	WP74006429 Whirlpool Regulator
11	MAY 3414F104-44
12	MAY 7101P044-60
13	MAY 3403D023-45
14	SCREW
15	MAY 5187D025-60
16	MAY 7103P130-60
17	MAY 7201P050-60
18	WP3351614 Whirlpool Screw
20	MAY 7101P315-60
