A3432SRW 05 – OVEN/BASE

A3432SRW 05 – OVEN/BASE

Written by

in

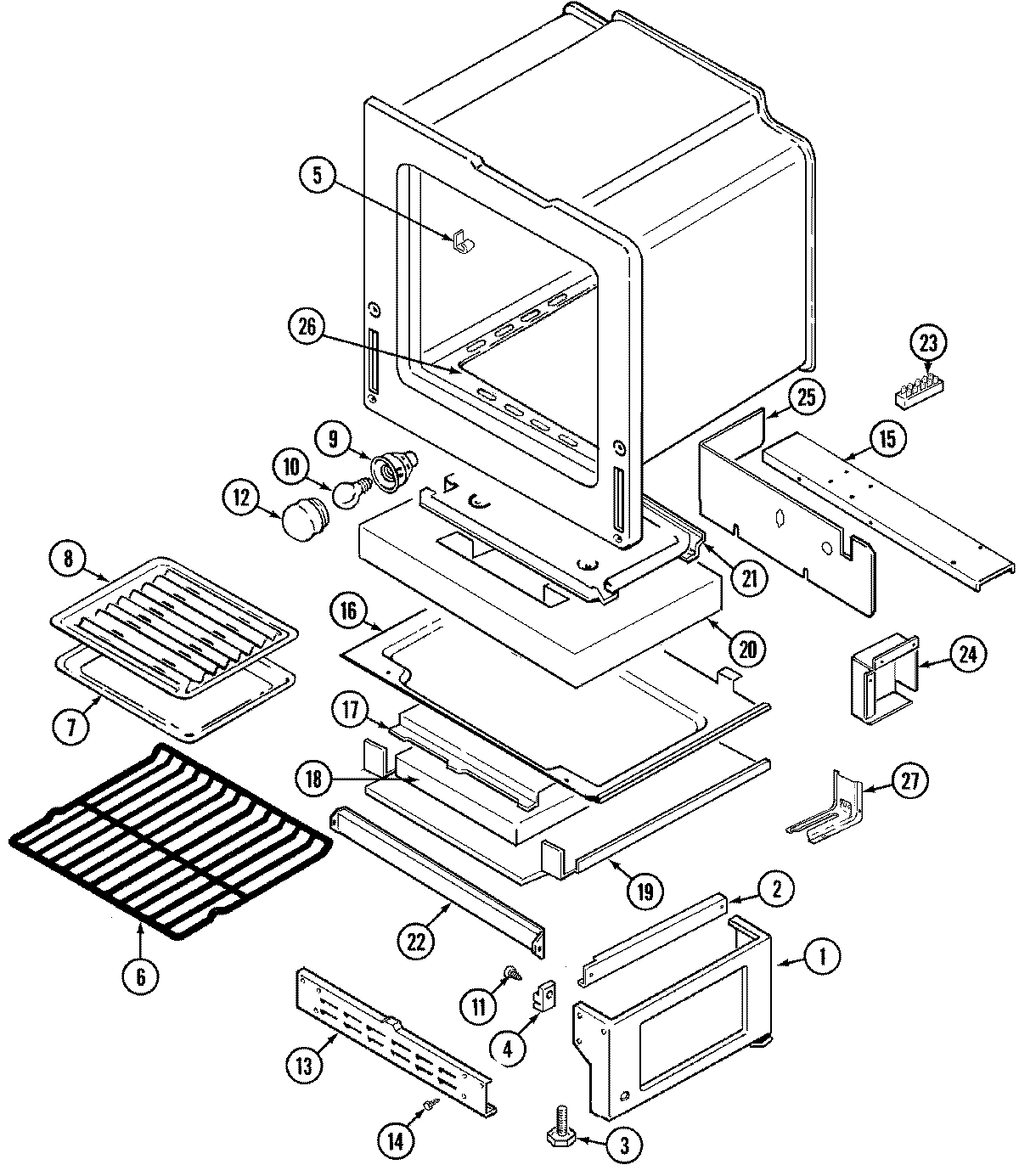

A3432SRW 05 – OVEN/BASE

Products

PositionProduct
1MAY 74001705
2MAY 3406F028-51
3MAY 74001311
4MAY 8004P033-60
5CLIP, THERMOSTAT BULB
6MAY 7801P047-60
7MAY Y3401F02019
8MAY Y3413F01619
9WP7407P182-60 Whirlpool Lamp
10RANGE ONLY 40W 120V APPL BULB
11MAY 74001449
12WP9781049 Whirlpool Light Lens
13MAY 4020F001-80
14SCREW
15MAY 3807F476-51
16MAY 3804F112-51
17MAY 3604F204-51
18INSULATION, DRAWER & SHIELD
19MAY 3604F205-51
20MAY 4804F014-60
21MAY 74001651
22BAFFLE, OVEN FRONT
23MAY 7401P037-60
24MAY 3807F473-51
25MAY 4005F429-51
26MAY 5504M004-19
27MAY 7101P344-60
27MAY 3801F218-51
