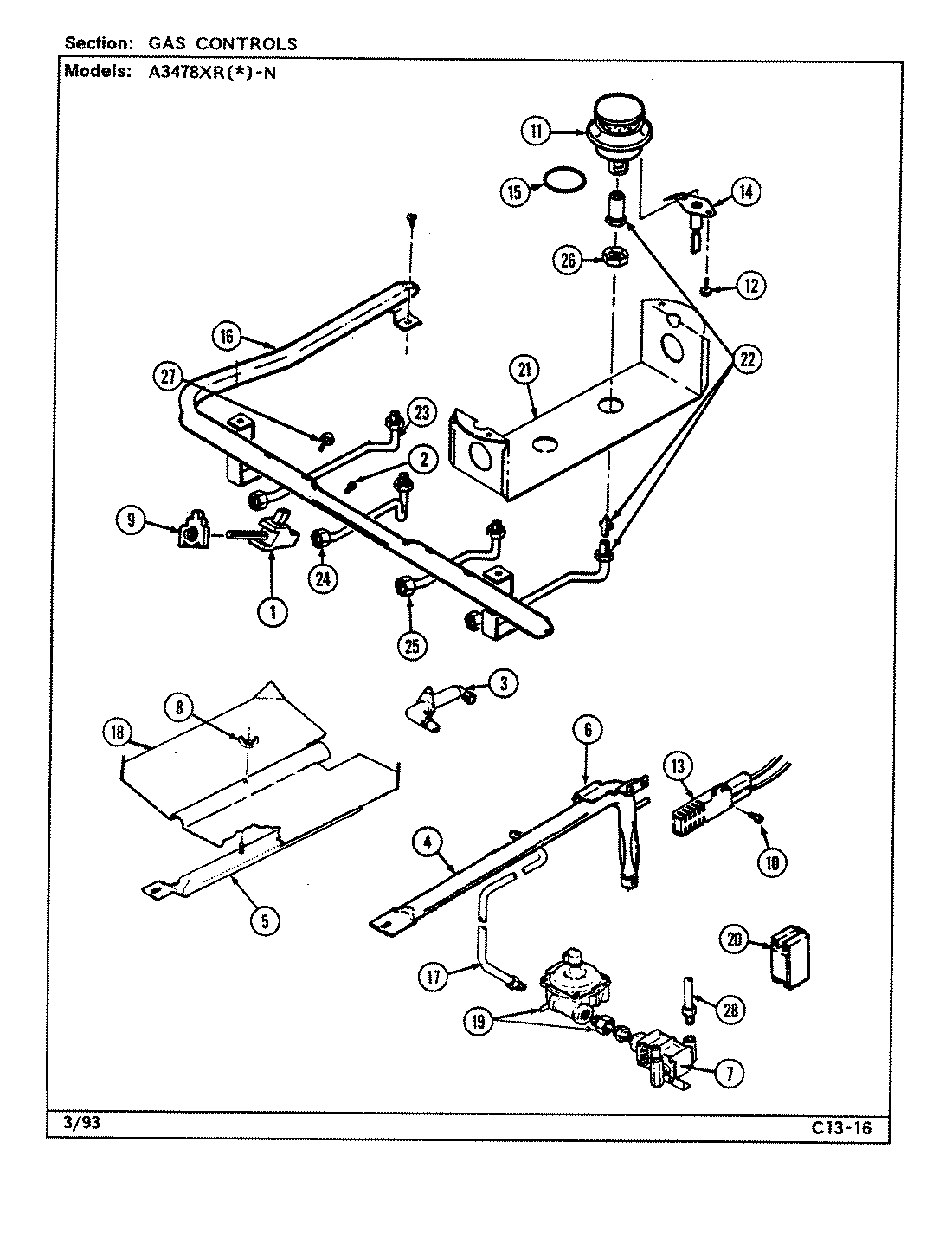

A3478XRA-N 04 – CONTROL SYSTEM

Products

Position	Product
1	MAY 7502P218-60
1	MAY 7502P251-60
2	MAY 7101P044-60
3	MAY 7507P088-60
3	MAY 3605F186-45
4	MAY 3403D043-45
5	MAY 3403D024-45
6	MAY 3807F446-45
7	MAY 7501P030-60
8	NUT, WING
9	WP7403P279-60 Whirlpool Igniter Switch
10	SCREW (10-24X5/16-NI)
11	MAY 3412D018-09
11	MAY 3412D017-09
12	MAY 7101P315-60
13	MAY 4005F421-45
13	MAY 7432P076-60
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 7201P050-60
16	MAY 7103P130-60
16	MAY 7513P120-60
17	MAY 3414F103-44
18	MAY 3601F217-45
19	MAY 7510P050-60
20	MAY 7431P021-60
20	MAY 3807F421-51
21	MAY 3807F444-45
22	MAY 7507P085-60
23	MAY 7507P113-60
24	MAY 7507P084-60
25	MAY 7507P091-60
26	MAY 7103P119-60
27	MAY 7101P296-60
28	MAY 5140D038-60
28	MAY 3414F102-44
28	MAY 5125A312-60
