A3488XRW 02 – CONTROL PANEL – Aparts

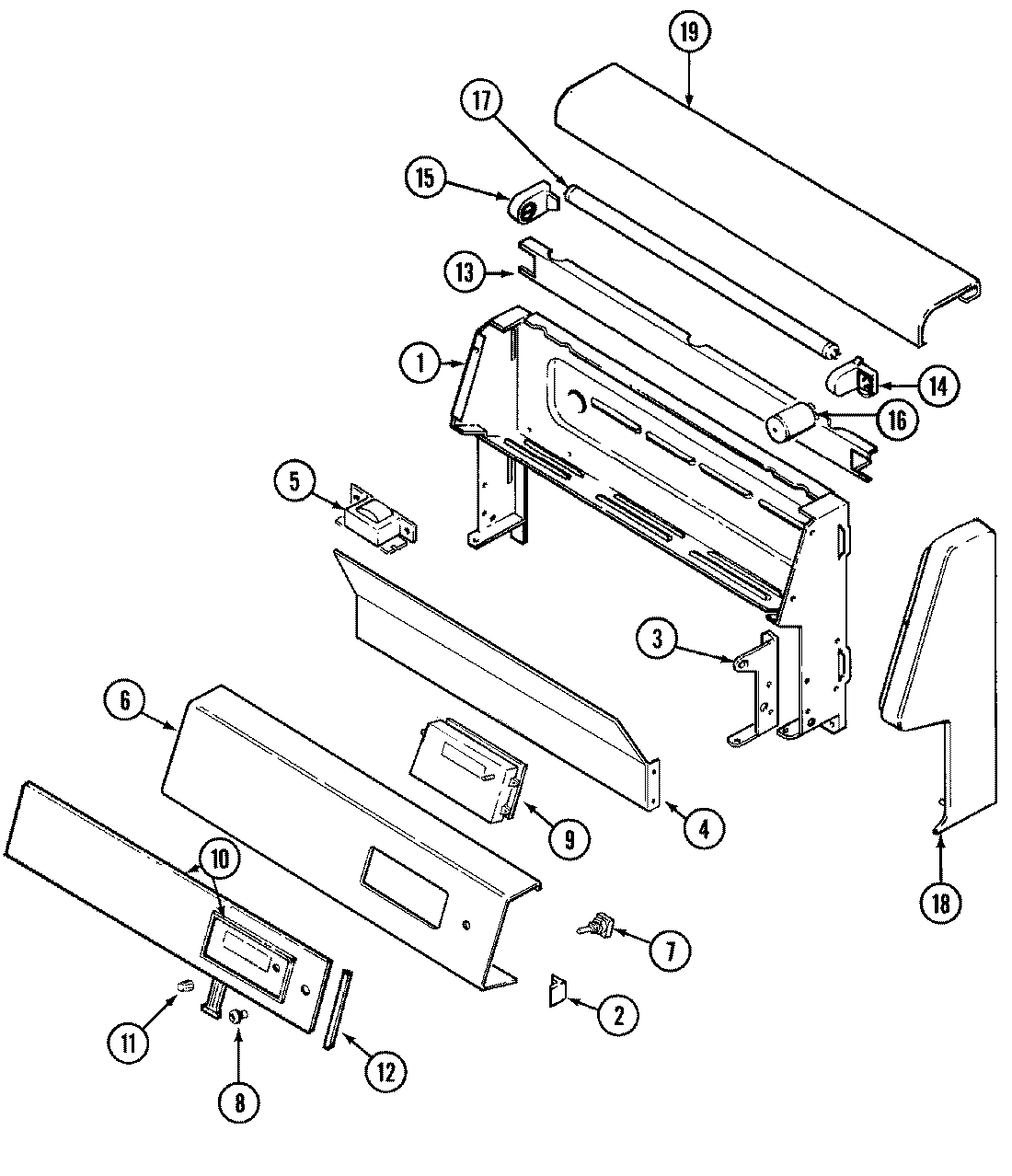

A3488XRW 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 5180D151-60
NI	MAY 16002079
NI	MAY 8113P026-60
NI	MAY 8113P018-60
NI	MAY 5170P160-60
1	MAY 4001F093-51
2	MAY 7101P148-60
2	MAY 8010P083-60
3	MAY 3807F454-51
3	MAY 3807F453-51
4	MAY 3604F188-09
4	SCREW (8BX3/8-NI)
5	MAY 7412P007-60
6	MAY 7703P274-60
6	WPY706189 Whirlpool Stove Screw
7	MAY 7403P109-60
8	MAY 7214P007-60
9	MAY 7601P208-60
10	MAY 4851S021-59
11	MAY 7711P431-60
12	MAY 7720P155-60
13	MAY 3807F406-71
14	MAY 7408P029-60
15	MAY 7408P030-60
16	MAY 7415P001-60
17	MAY 7407P004-60
18	MAY 7726P047-60
18	MAY 7103P129-60
18	MAY 7726P048-60
19	MAY 7724P054-60
