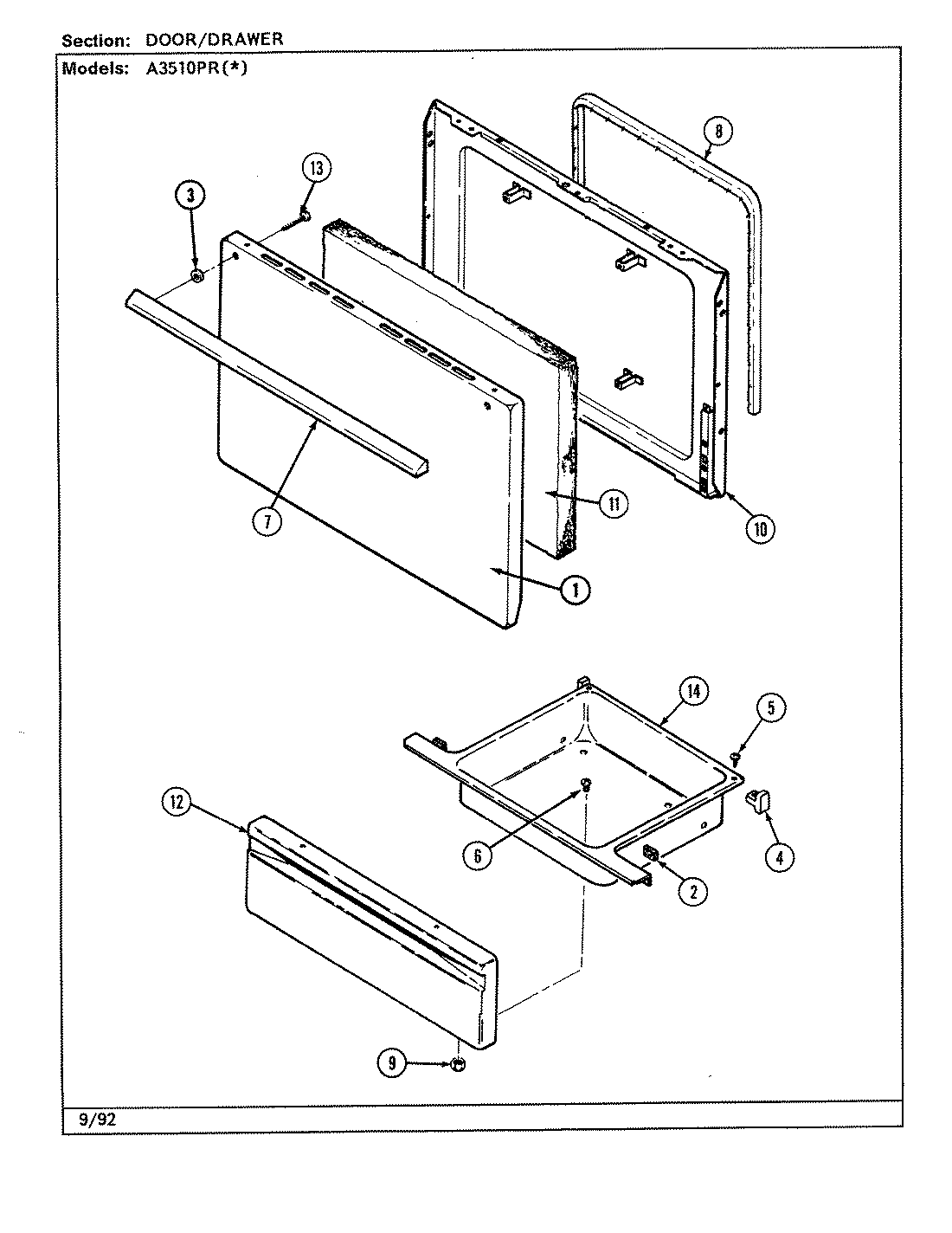

A3510PRW 03 – DOOR/DRAWER (A3510PR)

A3510PRW 03 – DOOR/DRAWER (A3510PR)

Written by

in

A3510PRW 03 – DOOR/DRAWER (A3510PR)

Products

PositionProduct
1PANEL, DOOR (WHT)
1MAY 7101P290-60
2MAY 8010P086-60
3MAY 8010P084-60
4WP8004P026-60 Whirlpool Support
5MAY 7101P291-60
6WP4159193 Whirlpool Screw
7MAY 7701P030-60
8MAY 7212P034-60
9WPW10131078 Whirlpool Nut Assembly
10MAY 2402W201-19
11MAY 4804F011-60
12MAY 2416F039-62
13MAY 7101P080-60
14MAY 3405F015-80
