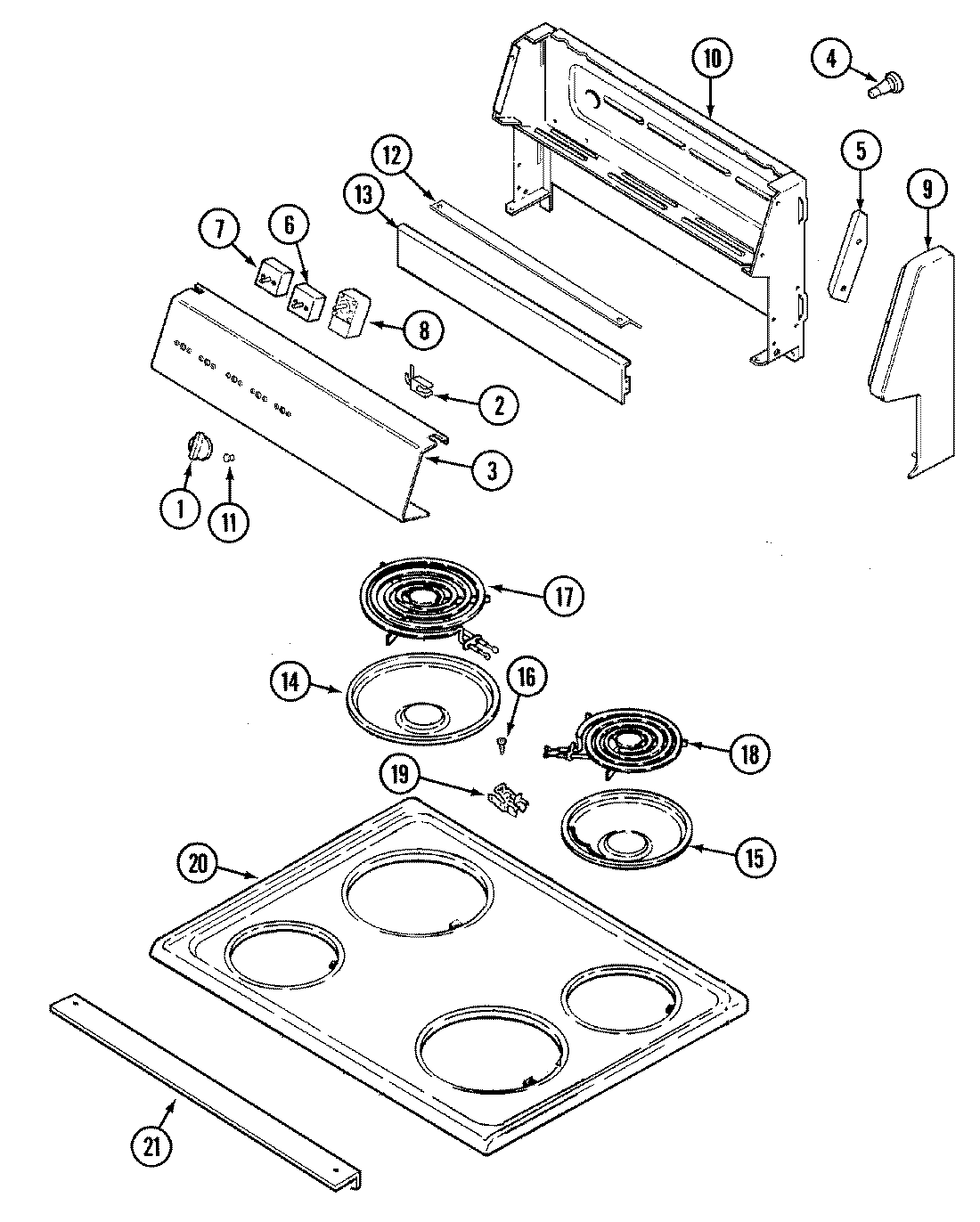

A3520SPA 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
NI	MAY 5125A316-60
NI	MAY 5175D049-60
NI	MAY 8113P023-60
1	MAY 7739P037-60
1	WP7737P030-60 Whirlpool Knob Switch
3	MAY 7703P434-60
3	MAY 2601F401-09
3	MAY 3801F296-51
4	SPACER, HINGE (MAIN TOP)
5	MAY 3807F436-45
5	MAY 3807F435-45
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	SCREW
8	MAY 7404P081-60
9	MAY 7101P032-60
9	MAY 7726P070-60
9	MAY 7726P069-60
10	MAY 4001F085-51
11	W11690159 Whirlpool Handle
12	MAY 3604F201-80
13	MAY 2612F036-84
14	MAY 7725P009-60
15	MAY 7725P008-60
15	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
16	MAY 7118P013-60
17	WPY04000035 Whirlpool Surface Element
18	WPY04000036 Whirlpool Surface Element
19	MAY 1430306K
20	MAY 2002W073-84
20	MAY 2002W074-84
21	MAY 7118P015-60
21	MAY 3802F085-80
