A3531XRA 03 – DOOR/DRAWER (A3531XR) – Aparts

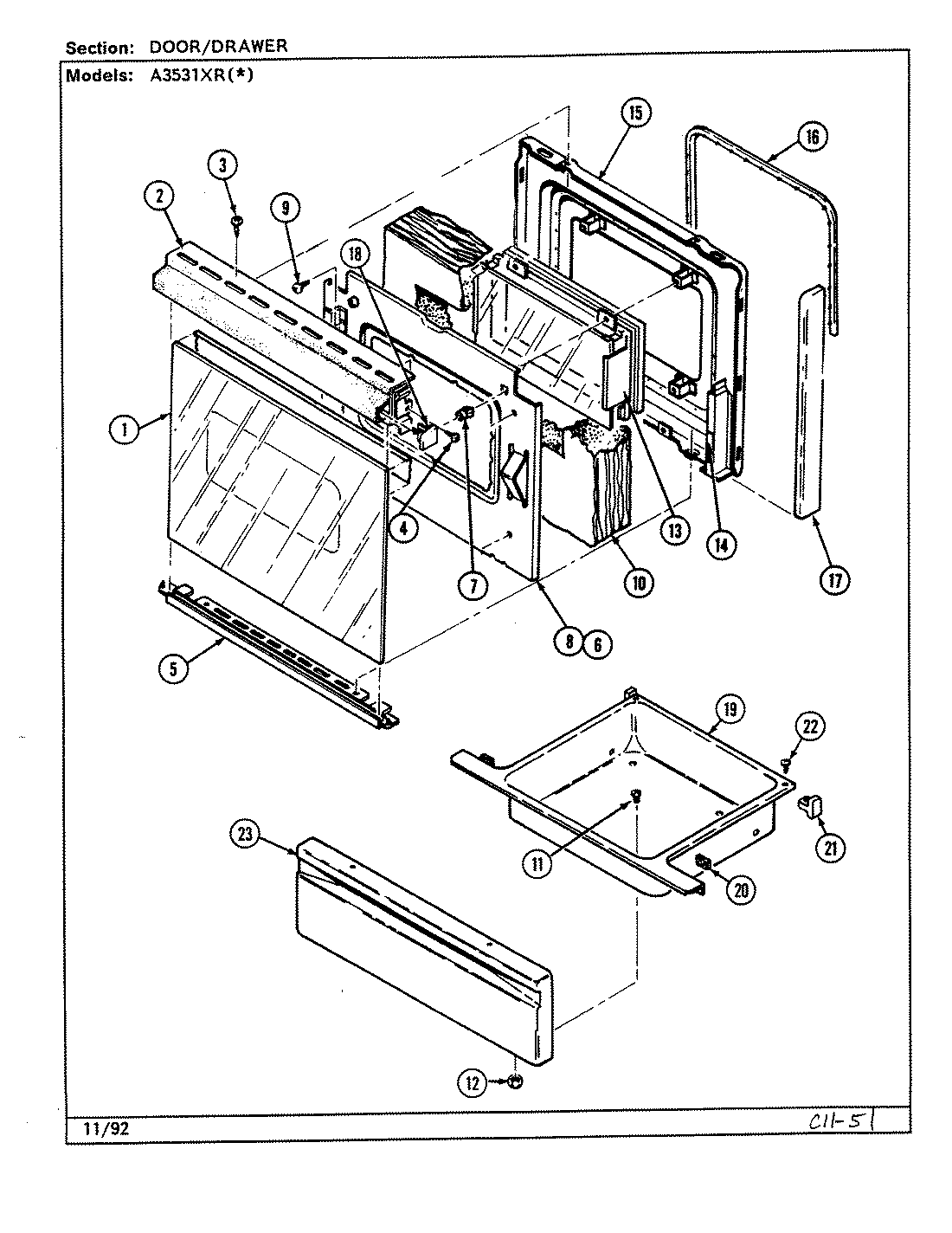

A3531XRA 03 – DOOR/DRAWER (A3531XR)

Products

Position	Product
1	MAY 7902P321-60
2	MAY 7701P103-60
3	WP98008545 Whirlpool Screw
5	MAY 7744P105-60
6	MAY 8010P085-60
7	MAY 8010P075-60
8	MAY 3601F219-45
9	MAY 7101P290-60
10	MAY 4804F011-60
11	WP4159193 Whirlpool Screw
12	WPW10131078 Whirlpool Nut Assembly
13	MAY 7907P016-60
14	MAY 7208P011-60
15	MAY 2402W193-19
16	MAY 7212P034-60
17	MAY 7744P055-60
18	MAY 7744P076-60
18	MAY 7744P075-60
19	MAY 3405F015-80
20	MAY 8010P086-60
21	WP8004P026-60 Whirlpool Support
22	MAY 7101P291-60
23	MAY 2416F039-64
