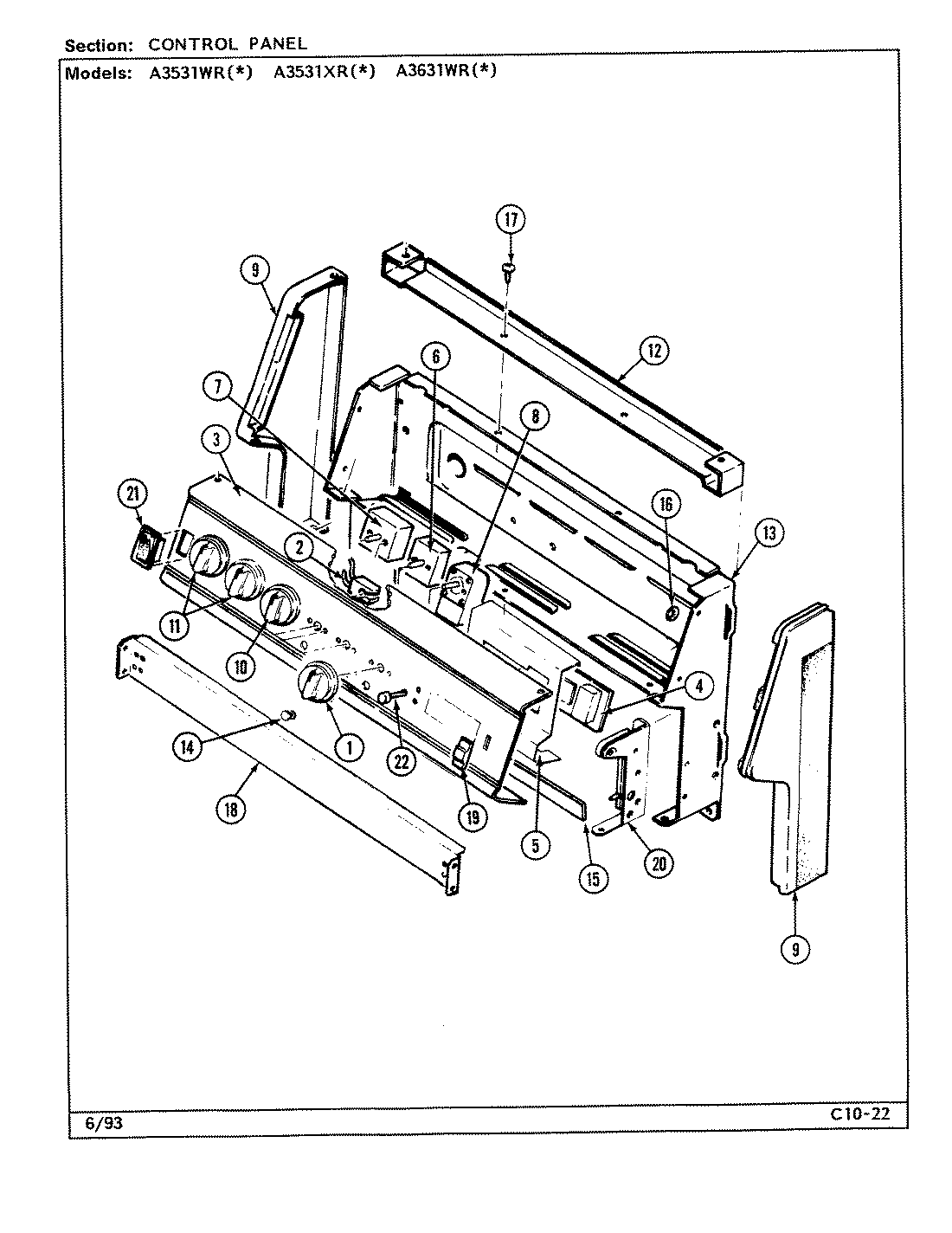

A3531XRW 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 8113P023-60
1	MAY 7735P037-60
2	MAY 7407P081-60
2	W10852510 Whirlpool Indicator Light
3	MAY 7118P018-60
3	MAY 4876S078-59
4	MAY 7101P293-60
4	MAY 7602P104-60
5	MAY 7118P019-60
5	MAY 7109P020-60
5	MAY 3801F266-45
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	MAY 7404P081-60
8	SCREW
9	MAY 7726P059-60
9	MAY 7726P060-60
10	MAY 7739P043-60
11	MAY 7737P035-60
12	MAY 4001F064-51
13	MAY 4001F089-51
14	W11690159 Whirlpool Handle
14	W11690131 Whirlpool Light Lens
15	MAY 3604F201-80
16	MAY 7103P129-60
17	MAY 7118P015-60
18	MAY 3802F087-51
19	MAY 7711P469-60
20	MAY 3418A088-34
20	MAY 3418A087-34
21	7403P067-60 Whirlpool Light Switch
22	MAY 5170D118-60
22	MAY 5125A315-60
22	MAY 7711P468-60
