A3631WRW 03 – DOOR/DRAWER (A3531WR) – Aparts

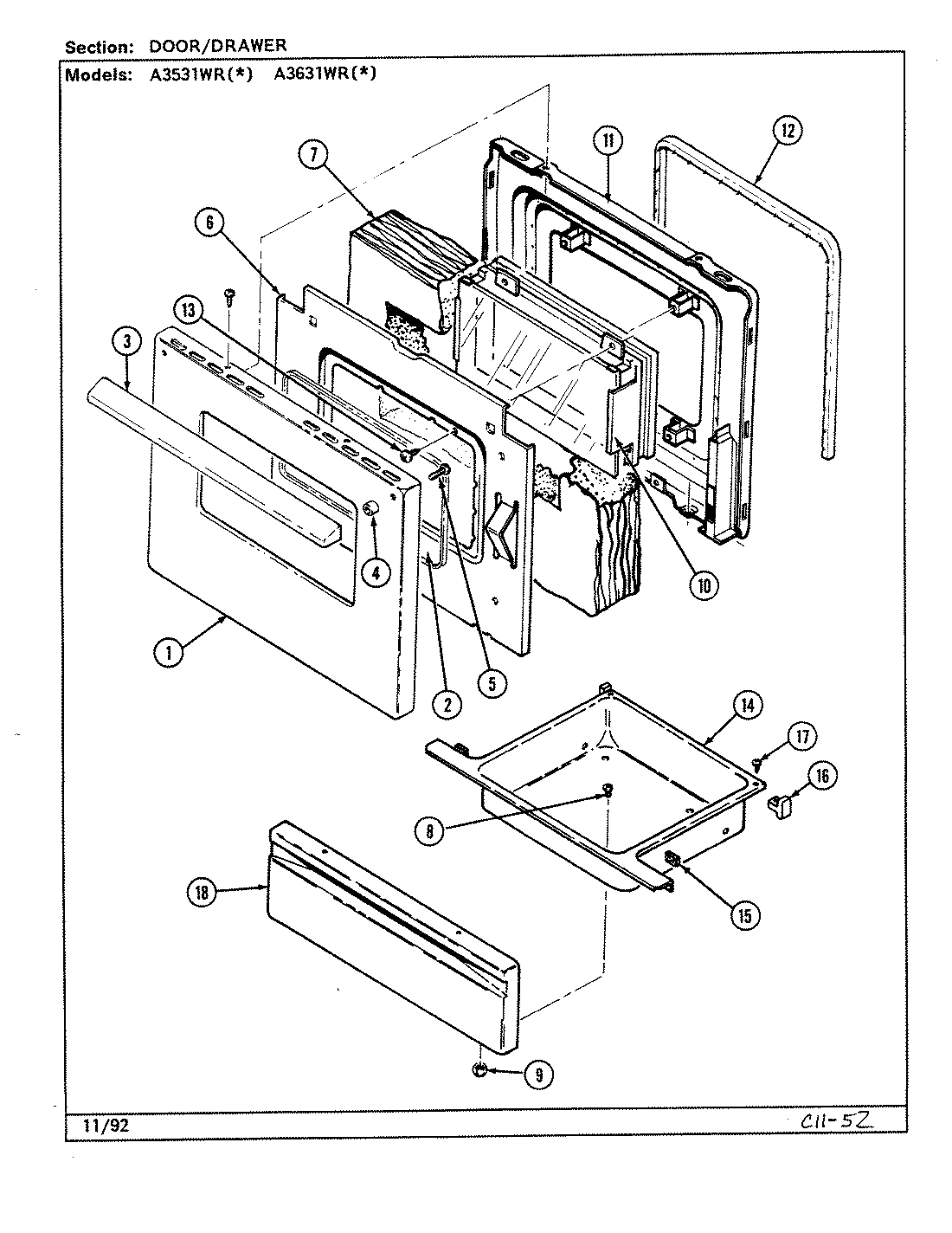

A3631WRW 03 – DOOR/DRAWER (A3531WR)

Products

Position	Product
1	MAY 2401F097-71
2	MAY 7201P017-60
3	MAY 7701P030-60
4	MAY 8010P084-60
5	MAY 7101P080-60
6	MAY 3601F219-45
7	MAY 4804F011-60
8	WP4159193 Whirlpool Screw
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 7907P015-60
11	MAY 2402W193-16
12	MAY 7212P034-60
13	MAY 7101P290-60
14	MAY 3405F015-80
15	MAY 8010P086-60
16	WP8004P026-60 Whirlpool Support
17	MAY 7101P291-60
