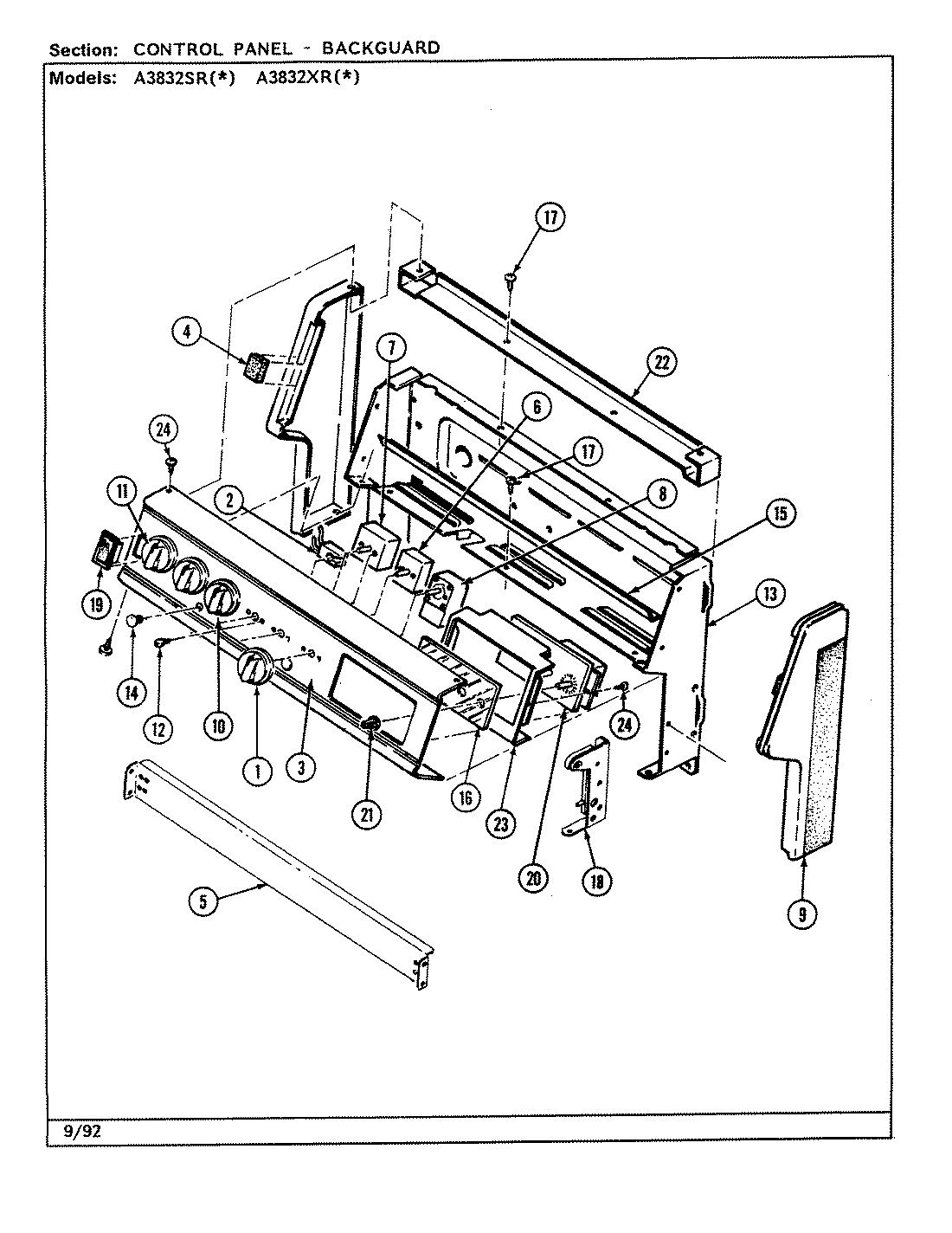

A3832SRW 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 8113P021-60
1	MAY 7735P040-60
2	MAY 7407P081-60
2	W10852510 Whirlpool Indicator Light
3	MAY 7703P347-60
4	MAY 8010P085-60
5	MAY 3802F087-51
6	MAY 7403P256-60
7	WP7403P239-60 Whirlpool Oven Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	MAY 7404P078-60
9	MAY 7103P129-60
9	MAY 7726P060-60
9	MAY 7726P059-60
10	MAY 7739P047-60
11	MAY 7737P035-60
12	SCREW
13	MAY 4001F085-51
14	W11690131 Whirlpool Light Lens
14	W11690159 Whirlpool Handle
15	MAY 3604F201-80
16	MAY 7201P056-60
16	MAY 7902P109-60
17	MAY 7118P015-60
18	MAY 3418A087-34
18	MAY 3418A088-34
19	7403P067-60 Whirlpool Light Switch
20	MAY 7601P170-60
21	MAY 7711P466-60
22	MAY 4001F064-51
23	MAY 3801F264-45
24	MAY 7118P019-60
24	MAY 5125A321-60
24	MAY 5170D148-60
