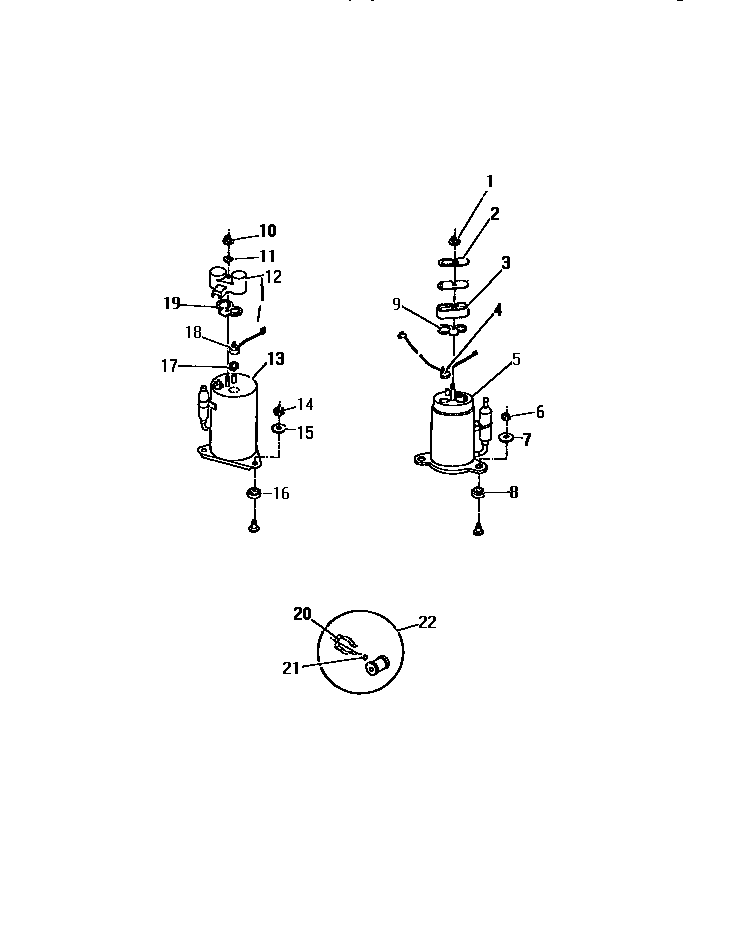

A4LCC2 13 – COMPRESSOR (`AAA` CABINET MODELS)
Products
| Position | Product |
|---|---|
| 1 | NUT-TERM. CVR. |
| 2 | CAP-TERM. CVR. |
| 3 | WCI 8010939 |
| 4 | WCI 8013807 |
| 5 | WCI 8013814 |
| 6 | NUT |
| 7 | WASHER |
| 8 | WCI 8009036 |
| 9 | WCI 8010941 |
| 20 | CLAMP |
| 21 | SCREW |
| 22 | RELAY, START KIT |
A4LCC2 13 – COMPRESSOR (`AAA` CABINET MODELS)
| Position | Product |
|---|---|
| 1 | NUT-TERM. CVR. |
| 2 | CAP-TERM. CVR. |
| 3 | WCI 8010939 |
| 4 | WCI 8013807 |
| 5 | WCI 8013814 |
| 6 | NUT |
| 7 | WASHER |
| 8 | WCI 8009036 |
| 9 | WCI 8010941 |
| 20 | CLAMP |
| 21 | SCREW |
| 22 | RELAY, START KIT |
