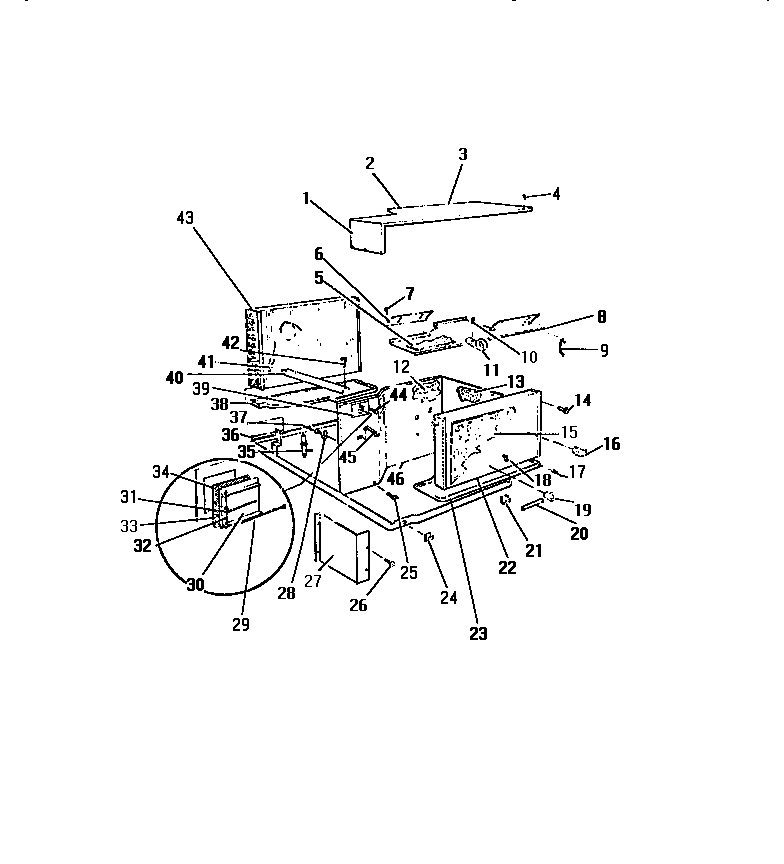

A4LCD2 24 – EVAPORATOR, CONDENSER (`DD` CABINET

Products

Position	Product
*23136	WCI 8013762
*23138	WCI 8013758
*23137	WCI 8013761
*23140	WCI 8016217
*23139	SEAL-SHROUD TOP
1	WCI 8007652
2	WCI 8007189
3	WCI 8007650
5	WCI 8009349
6	WCI 8007191
7	WCI 8002951
8	WCI 8013171
9	WCI 8007668
10	WCI 8007193
11	WCI 8006914
12	WCI 8009350
13	WCI 8007653
14	WCI 8009138
15	WCI 8007210
16	CLIP (2)
17	HOSE-EVAP DRAIN
18	HOLDER-THERMSTOR (NON-ILLUSTRATED)
19	CLIP-CAP. TUBE
20	INSULATOR-TUBE
20	INSULATOR-CAP TUBE
21	CLIP-FRONT TO BASE
22	WCI 8013716
22	WCI 8013721
22	WCI 8013720
22	WCI 8016402
22	WCI 8013722
23	TRAY-EVAP
24	CLIP-FRT TO BASE LH
27	WCI 8007644
28	WCI 8009025
29	CABLE, VENT DOOR, 12.22 LENGTH
29	CABLE, VENT DOOR
30	WCI 8006784
30	DOOR-VENT
31	WCI 8016094
31	WCI 8007192
32	ROD-HINGE
33	WCI 8007636
34	WCI 8007141
35	WCI 8016393
36	WCI 8007637
37	SCREW (4)
38	TRAY-COND.
39	WCI 8007606
40	WCI 8007199
41	DRIER
42	WCI 8009156
43	WCI 8016140
43	WCI 8013713
43	WCI 8016405
43	WCI 8013715
43	WCI 8014117
43	WCI 8013714
44	SCREW, PLATE, CABLE TO BULKHEAD
45	WCI 8009577
46	WCI 8007673
46	WCI 8016146
