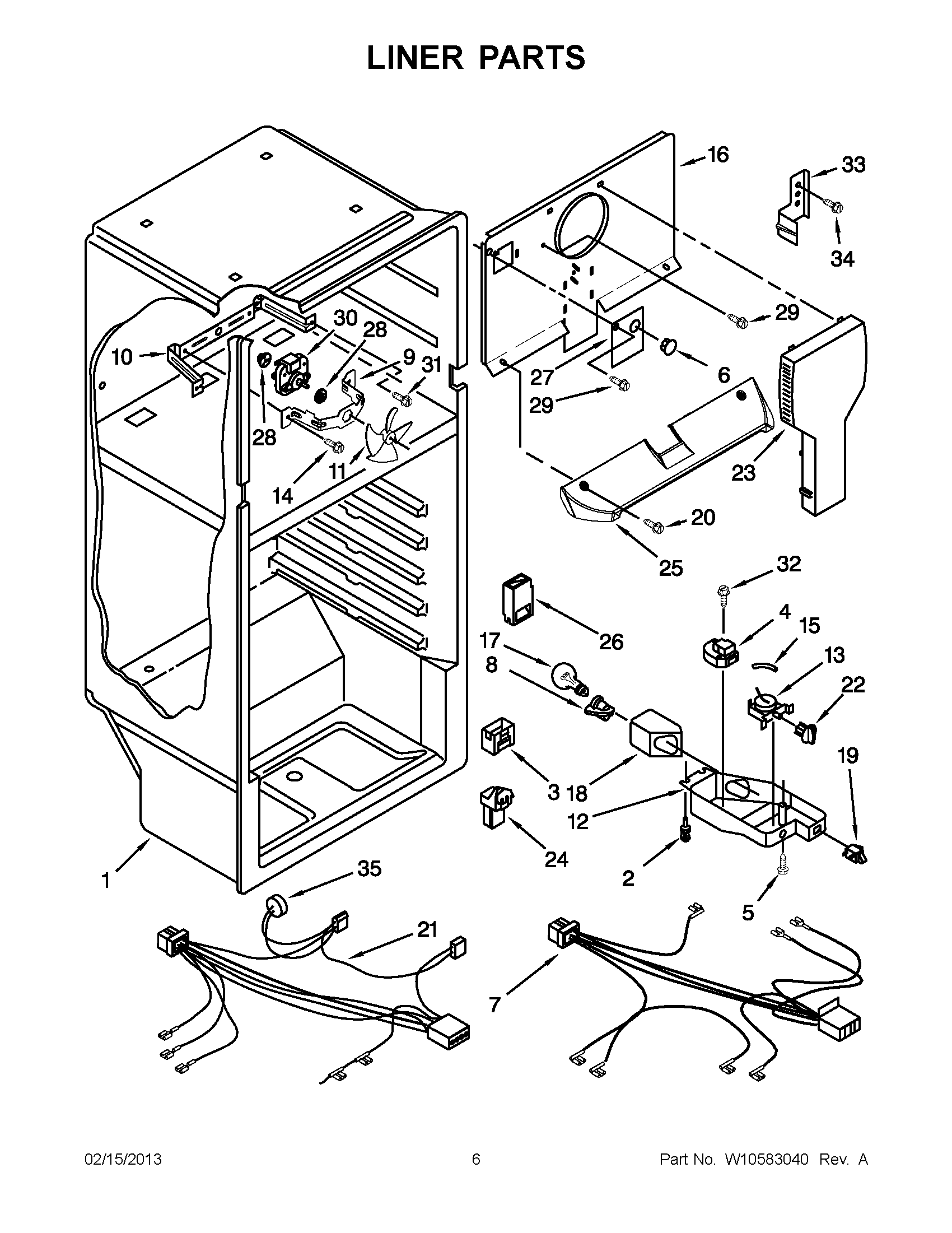

A4TCNWFBB00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Rivet
3	MAY 2183061
4	MAY 2188371
5	MAY 489174
6	MAY 941839
7	WIRE ASSEMBLY, CONTROL BOX
8	Socket, Light
9	Fan Support Bracket
10	MAY 2197405
11	Blade, Fan (Evaporator)
12	MAY 2215213
13	MAY 2325700
14	Screw 8-32 x 5/16
15	MAY 1118680
16	MAY W10244012
17	MAY 527949
18	MAY 9791702
19	MAY 1118894
20	MAY 2262178
21	WIRING-FREEZER
22	MAY 2202885
23	MAY 9790408
24	Hood And Foil Assembly
25	MAY 2261978
26	MAY 2221992
27	MAY 2217784
28	MAY 2264462
29	MAY 489478
30	MAY W10188389
31	MAY 489442
32	Screw
33	MAY 2262195
34	Screw
35	MAY 2266067
