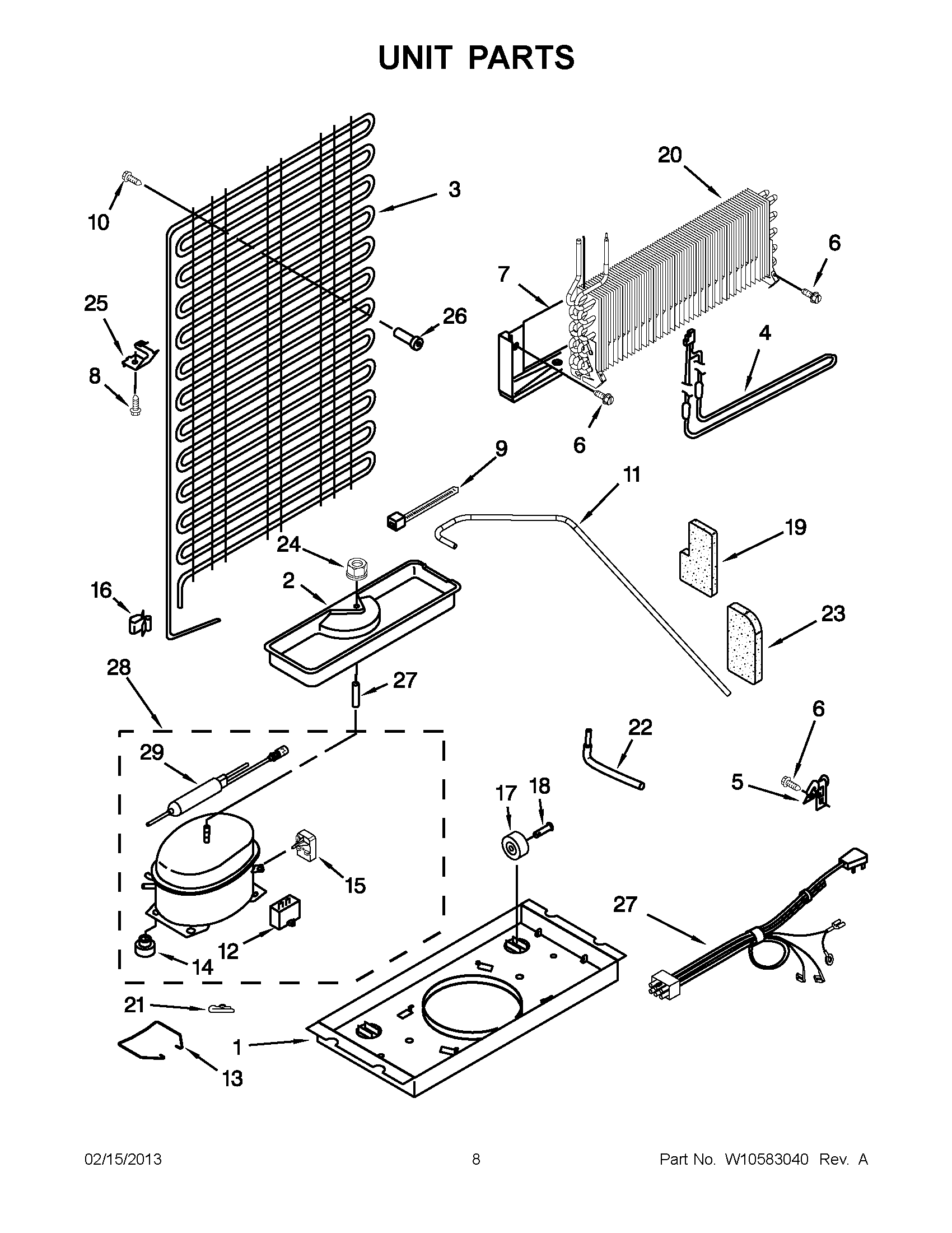

A4TCNWFBB00 04 – UNIT PARTSadmin2025-04-26T09:12:27+00:00A4TCNWFBB00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY W10222451 |
| 2 | MAY 2176668 |
| 3 | MAY W10219348 |
| 4 | MAY 2263749 |
| 5 | MAY 549193 |
| 7 | MAY 2319224 |
| 8 | MAY 489442 |
| 9 | MAY 2263990 |
| 10 | MAY 8533892 |
| 11 | MAY W10212090 |
| 12 | Capacitator (Production) |
| 13 | BALE STRAP |
| 14 | MAY 2222084 |
| 15 | START-DEVICE (PRODUCTION) |
| 16 | MAY 939054 |
| 17 | MAY W10475495 |
| 18 | RIVET, AXLE |
| 19 | Wedge-Evap. |
| 20 | EVAPORATOR ASSEMBLY |
| 21 | MAY 24364001 |
| 22 | MAY 2320728 |
| 23 | MAY 2262192 |
| 24 | MAY 489153 |
| 25 | MAY 2172892 |
| 26 | MAY 2258452 |
| 27 | WIRE ASSEMBLY UNIT |
| 28 | COMPRESSOR (INCLUDES ITEMS 13,14,15, & 16) |
| 29 | DRIER (PRODUCTION) |
