A4TCNWFBW00 01 – CABINET PARTS

A4TCNWFBW00 01 – CABINET PARTS

Written by

in

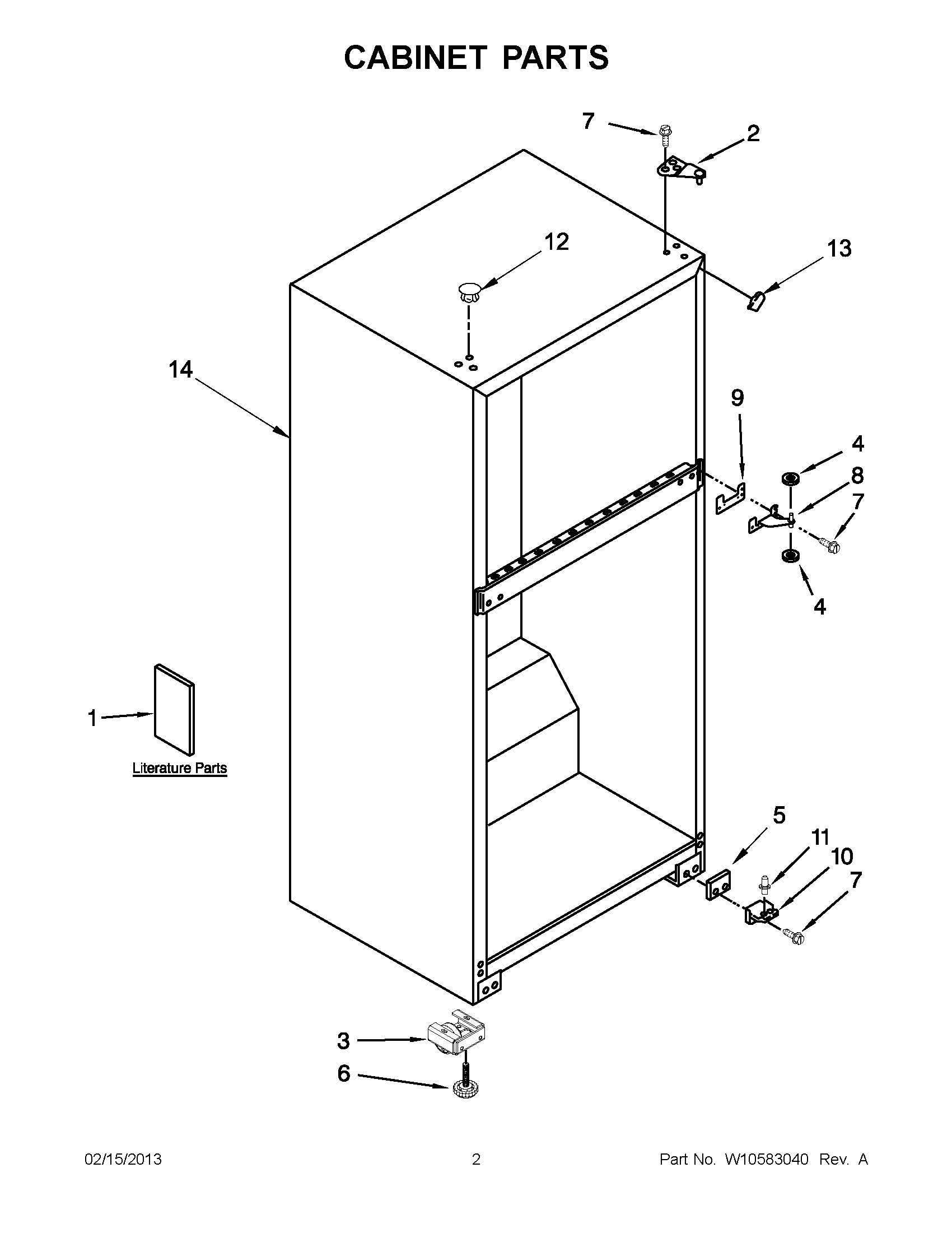

A4TCNWFBW00 01 – CABINET PARTS

Products

PositionProduct
1MAY W10212088
1MAY W10565240
1MAY W10214129
2MAY 2261963
3ROLLER, FRONT
4Washer (7/64)
5MAY 2201567
6LEVELER SCREW
7MAY 489497
8MAY 2166086
9SHIM, HINGE CENTER (WHITE)
10Hinge Butt, Btm
11Hinge-Pin, Btm
12MAY W10520304
12HOLE PLUG (BLACK)
13Corner Filler (Black)
13Corner Filler
14LINER (NOT A SERVICEABLE PART)
