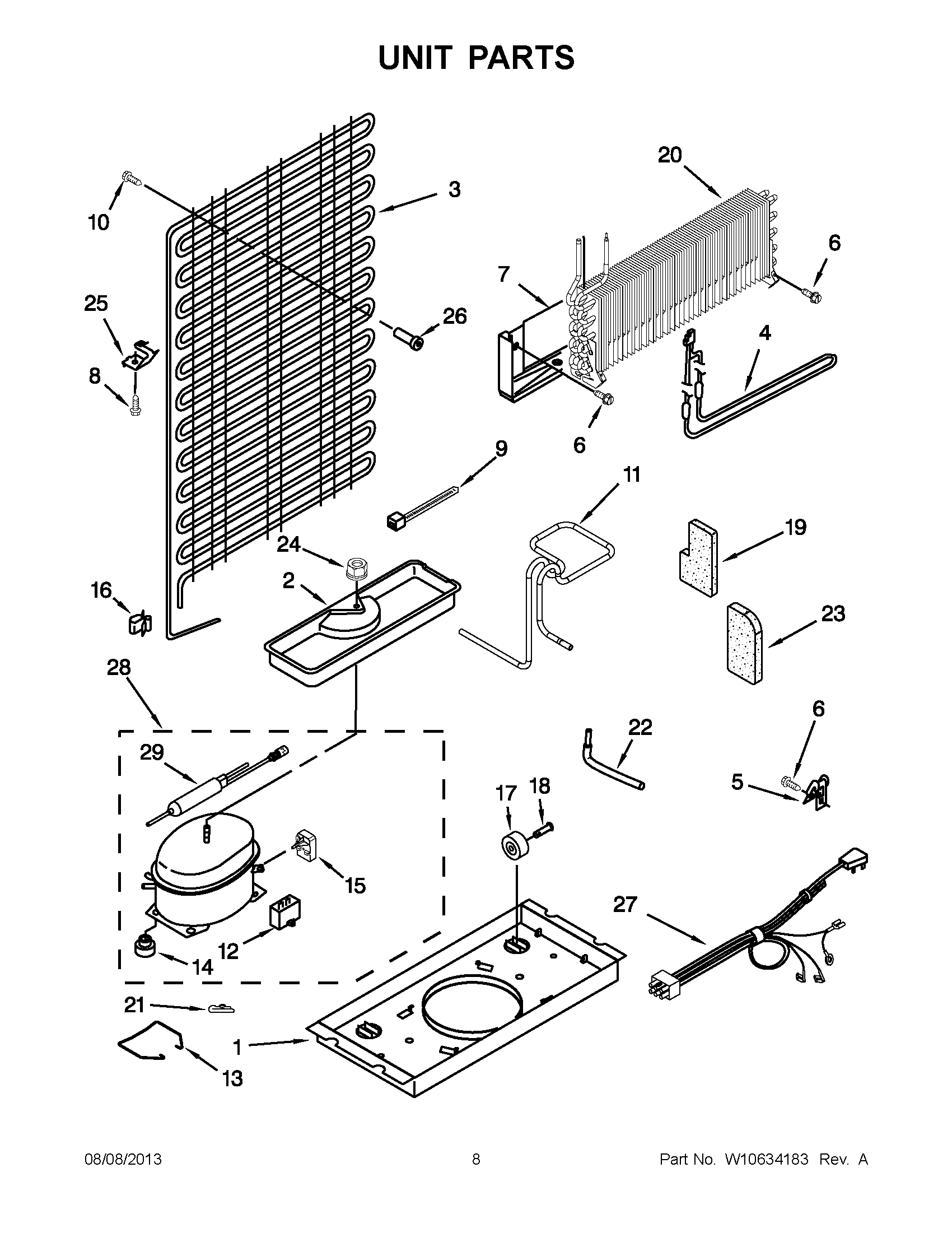

A4TCNWFBW01 04 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	MAY W10222451
2	TRAY, EVAPORATOR
3	MAY W10219348
4	MAY 2263749
5	MAY 549193
7	MAY 2319224
8	MAY 489442
9	MAY 2263990
10	MAY 8533892
11	MAY W10442467
12	CAPACITOR
13	STRAP, BALE
14	Grommet (Production)
15	START DEVICE,
16	MAY 939054
17	MAY W10475495
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSEMBLY
21	MAY 24364001
22	MAY VS20001
23	MAY 2262192
24	MAY 489153
25	MAY 2172892
26	MAY 2258452
27	WIRE ASSEMBLY UNIT
28	COMPRESSOR (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	DRIER (PRODUCTION)
