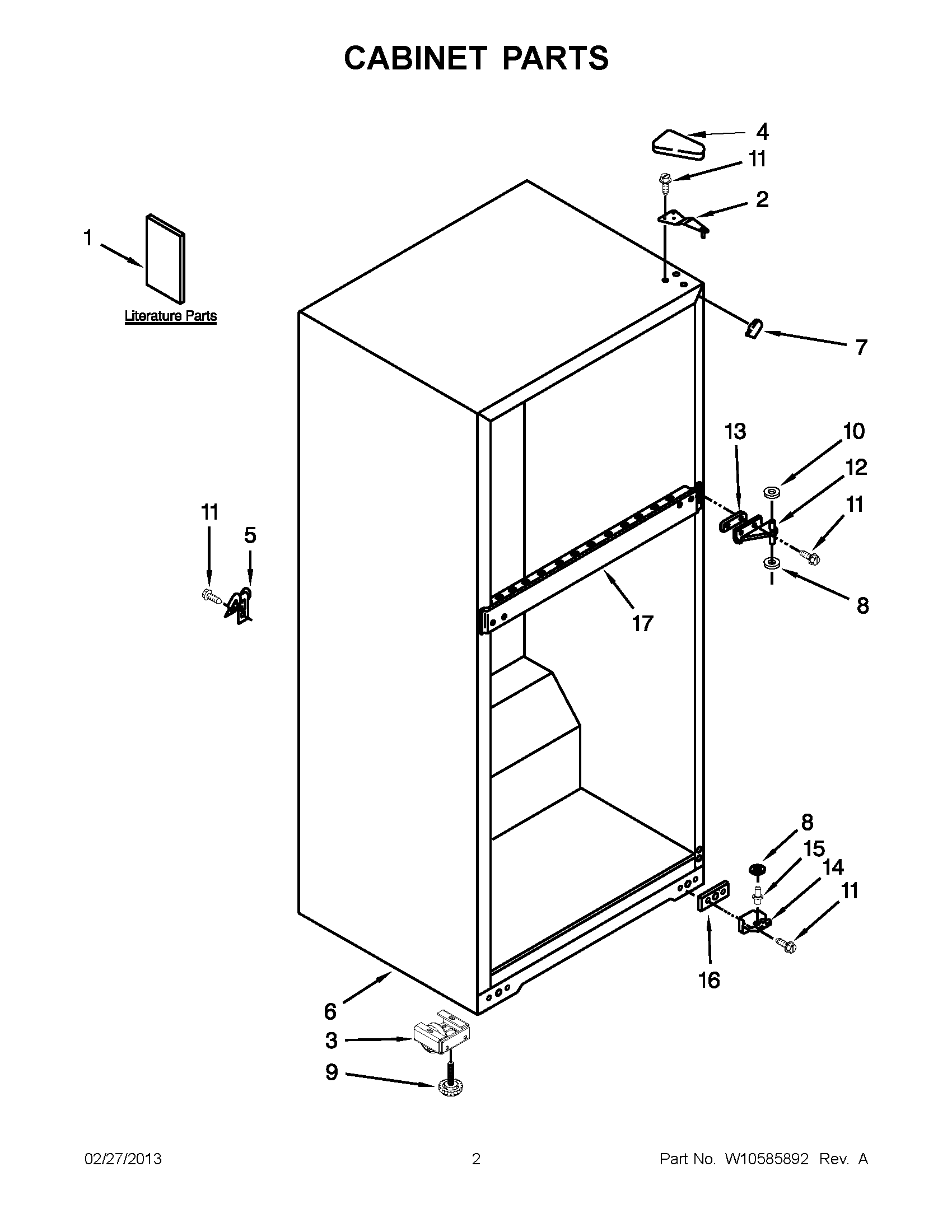

A4TXCGFBW00 01 – CABINET PARTS

A4TXCGFBW00 01 – CABINET PARTS

Written by

in

A4TXCGFBW00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10314856
1	MAY W10214129
1	MAY W10565983
2	MAY 2261963
3	ROLLER, FRONT
4	Cover, Hinge (White)
5	MAY 549193
7	Corner Filler
8	Washer (1/16)
9	LEVELER SCREW
10	WASHER, PLASTIC
11	MAY 489497
12	MAY 2166086
13	SHIM, HINGE CENTER (WHITE)
14	Hinge Butt, Btm
15	Hinge-Pin, Btm
16	MAY 2201567
17	LINER (NOT A SERVICEABLE PART)
