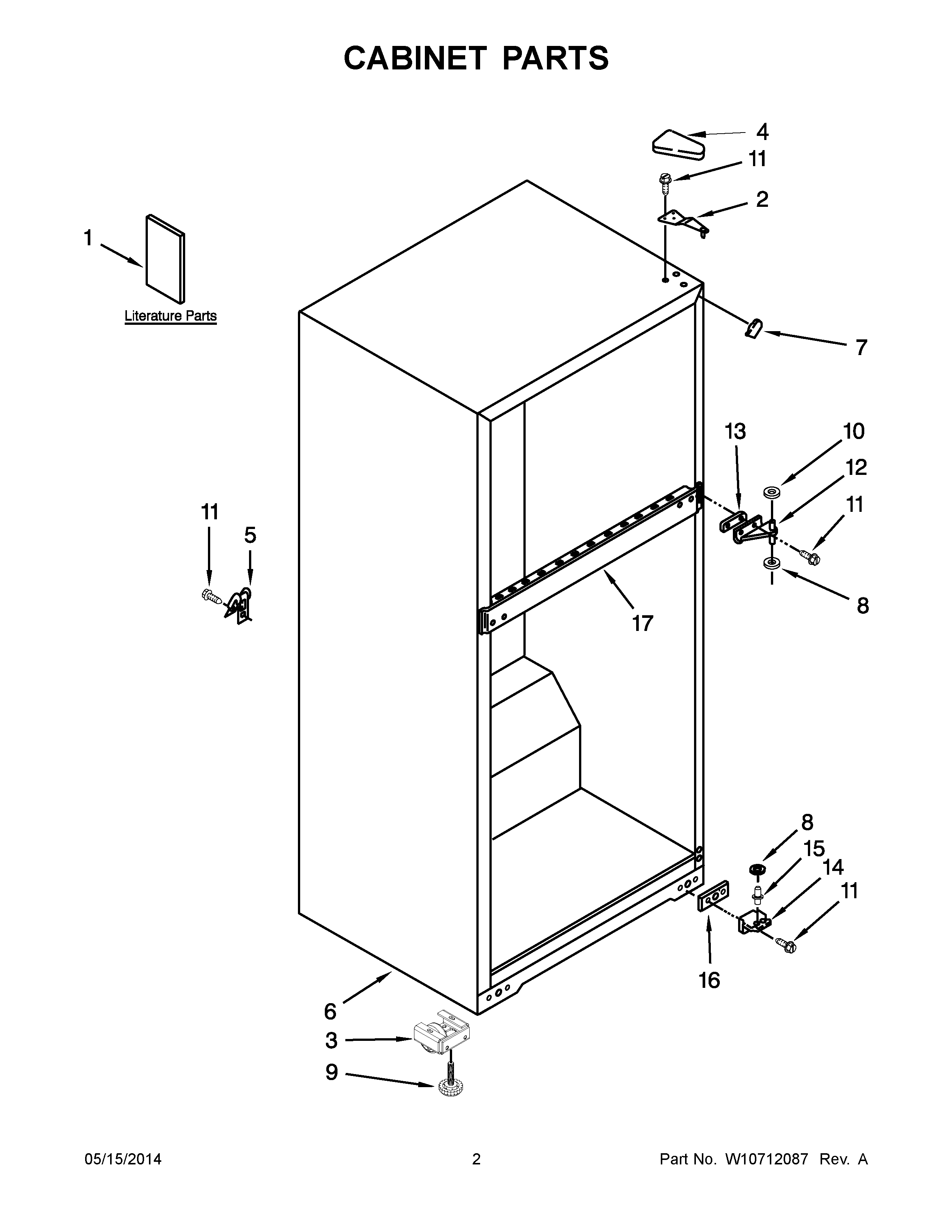

A4TXCGFBW01 02 – CABINET PARTS

A4TXCGFBW01 02 – CABINET PARTS

Written by

in

A4TXCGFBW01 02 – CABINET PARTS

Products

PositionProduct
1MAY W10565983
1MAY W10214129
1MAY W10488103
2MAY 2261963
3ROLLER, FRONT
4Cover, Hinge (White)
5MAY 549193
7Corner Filler
8Washer (1/16)
9LEVELER SCREW
10WASHER, PLASTIC
11MAY 489497
12MAY 2166086
13SHIM, HINGE CENTER (WHITE)
14Hinge Butt, Btm
15Hinge-Pin, Btm
16MAY 2201567
17LINER (NOT A SERVICEABLE PART)
