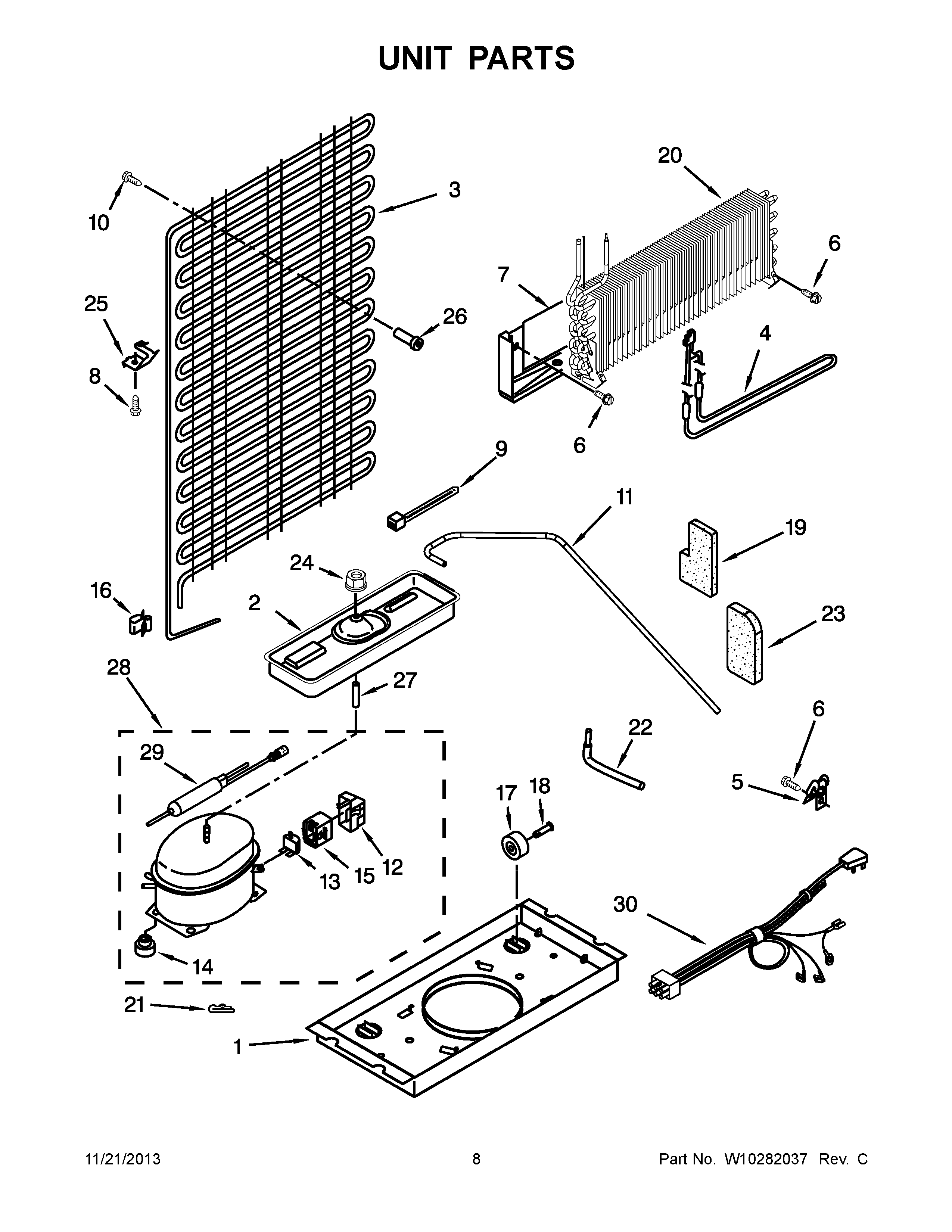

A4TXNWFWW00 05 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10222451
2	MAY 2176668
3	MAY W10219348
4	MAY 2263749
5	MAY 549193
7	MAY 2319224
8	MAY 489442
9	MAY 2263990
10	MAY 8533892
11	MAY 2264563
12	Cover (Production)
13	OVERLOAD
14	MAY 2222084
15	MAY 2258450
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSEMBLY
21	MAY 24364001
22	MAY 2320728
23	MAY 2262192
24	MAY 489153
25	MAY 2172892
26	MAY 2258452
27	MAY 2176844
28	COMPRESSOR (ALSO ORDER 482801 INSTALLATION KIT &876765 TUBE KIT)
29	DRIER (PRODUCTION)
30	ASSEMBLY, UNIT WIRE
