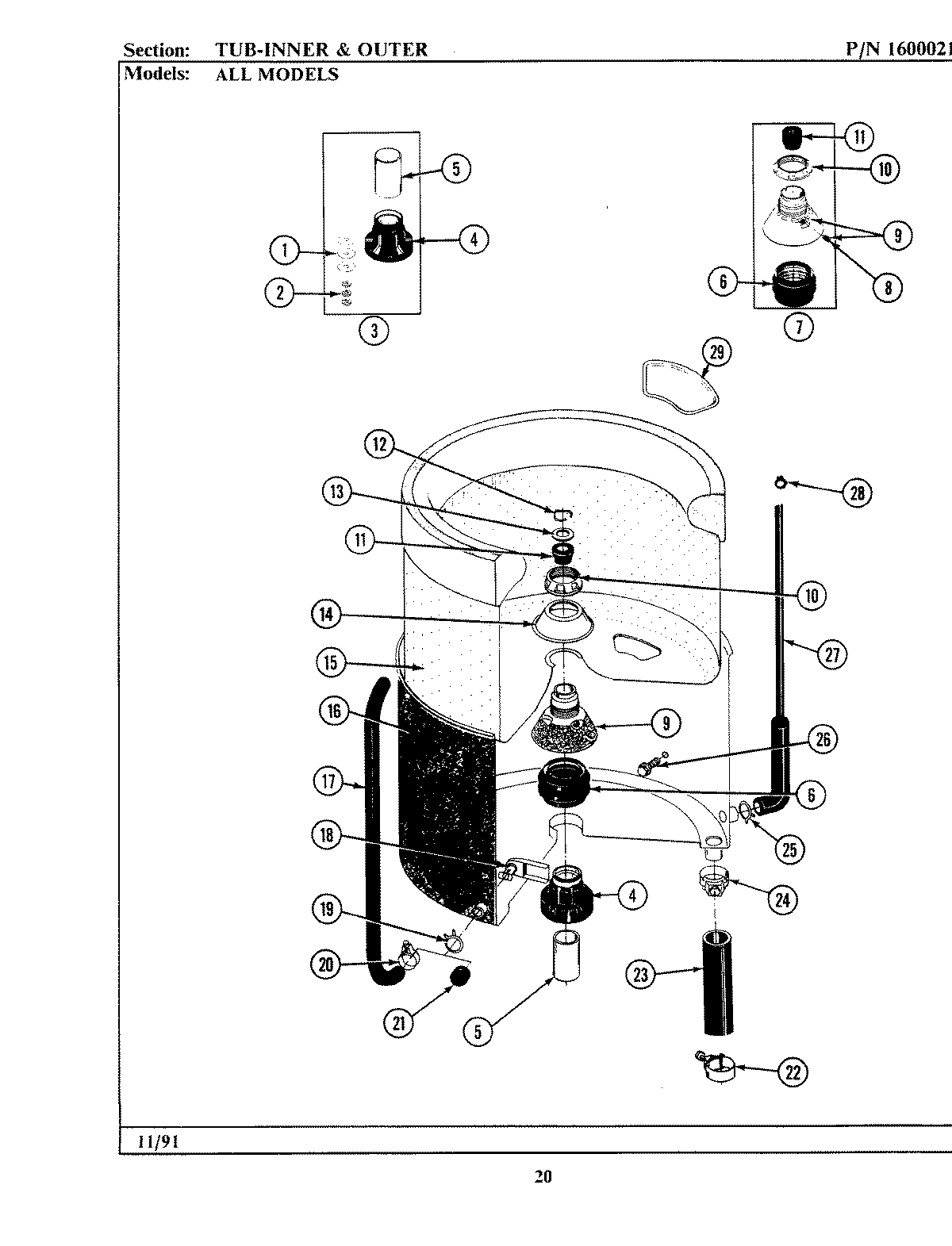

A506 09 – TUB-INNER & OUTER

Products

Position	Product
1	MAY 211100
2	MAY Y054867
4	6-2040130 Whirlpool Washer Tub Bearing Kit
5	MAY 211130
6	MAY 201537
7	MAY 204012
8	MAY 211618
9	MAY 202521
10	WP6-2110472 Whirlpool Nut Clamp
11	WP6-0A57420 Whirlpool Agitator Seal
12	MAY Y015667
13	WPY015666 Whirlpool Washer Retainer
14	MAY 211210
15	PART NOT USED
15	MAY 207831
16	PART NOT USED
17	WP214433 Whirlpool Inlet Tube
18	MAY 214434
19	WP596669 Whirlpool Hose Clamp
20	WP489503 Whirlpool Refrigerator Clamp
21	MAY 214725
22	MAY 200461
23	WP213045 Whirlpool Dishwasher Tub to Pump Hose
24	MAY 200900
25	WP285655 Whirlpool Hose Clamp
26	W10175939 Whirlpool Bolt Assembly
26	W10175938 Whirlpool Bolt
27	MAY 212942
29	MAY 215980
