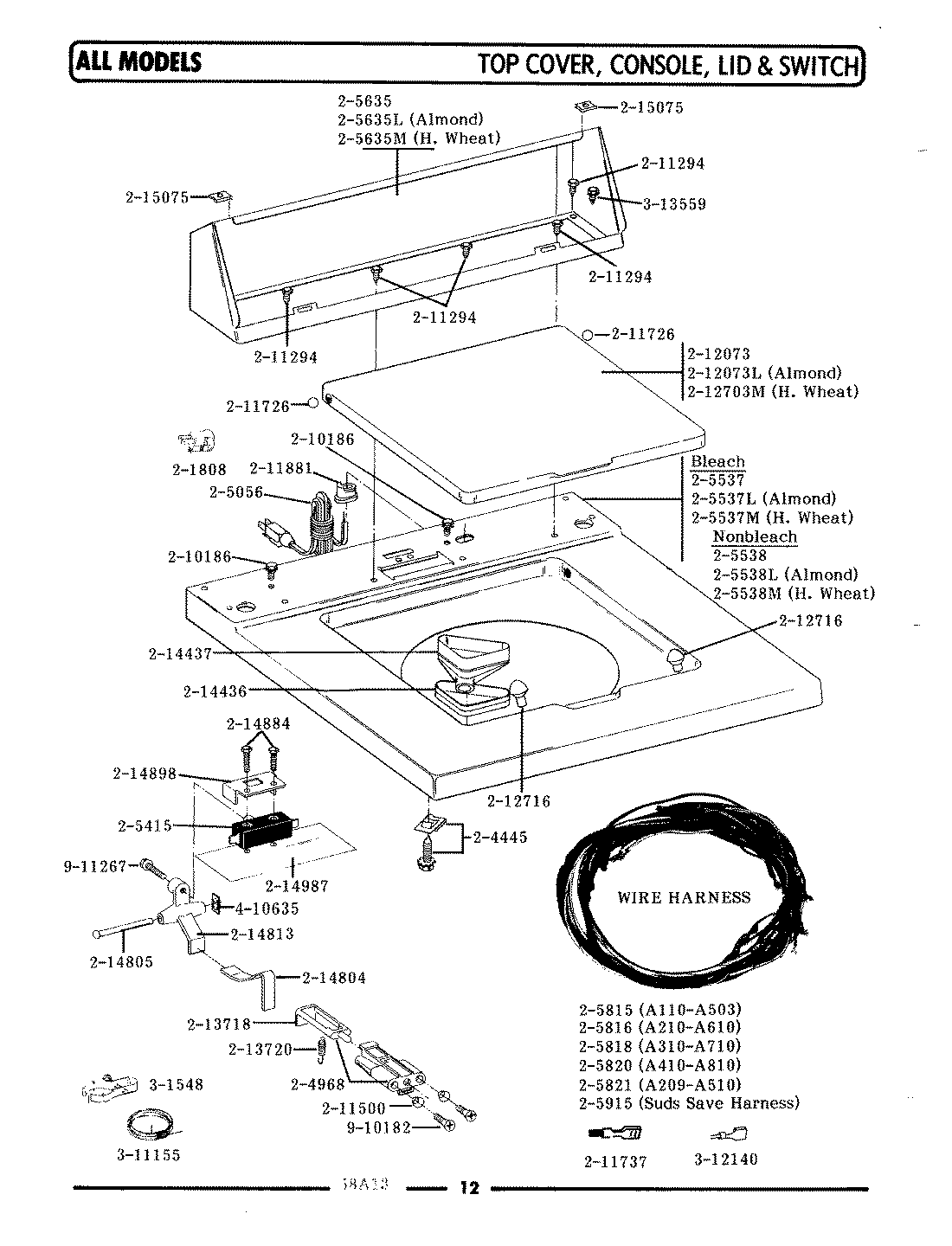

A510S 06 – TOP COVER, CONSOLE & LID SWITCH

Products

Position	Product
NI	MAY 911267
NI	WP311155 Whirlpool Wire Assembly
NI	MAY Y313559
NI	MAY 211500
NI	MAY 910182
NI	MAY Y312140
NI	MAY 410635
1	MAY 205997
2	MAY Y201808
3	MAY 204445
4	PLUNGER & BRACKET ASSEMBLY–W
5	MAY 205056
6	W10820036 Whirlpool Door Switch Kit
7	MAY 205538
9	MAY 205635
12	MAY 205821
16	MAY 205915
17	MAY 210186
18	WP90767 Whirlpool Screw
20	MAY 211737
21	WP211726 Whirlpool Ball Assembly
22	GROMMET
23	MAY 212073
27	WP212716 Whirlpool Lid Bumper
28	MAY 213718
29	WP213720 Whirlpool Spring Assembly
30	MAY 214805
31	MAY 214804
32	MAY 214813
33	MAY 214884
34	MAY 214898
36	MAY 215075
37	MAY 214987
38	MAY 301548
