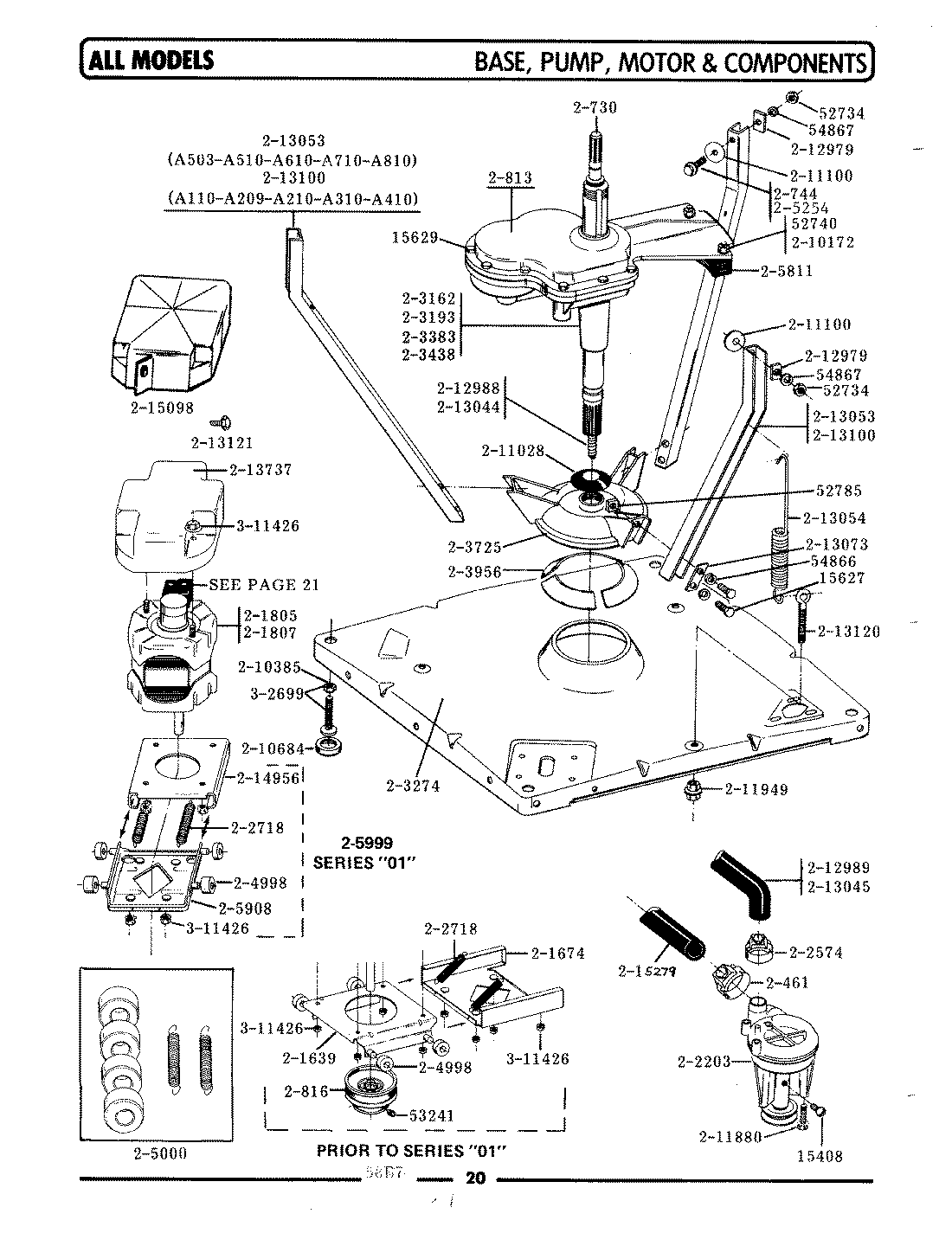

A511S 01 – BASE, PUMP, MOTOR & COMPONENTS

Products

Position	Product
NI	203956 Whirlpool Damper Pads 3 Pack with Poly
NI	MAY 205811
NI	MAY 205134
NI	MAY 205908
NI	MAY 205999
NI	MAY 205131
1	MAY Y015408
3	MAY Y015629
4	MAY Y052734
5	WP62739 Whirlpool Nut
6	MAY Y052785
7	MAY Y053241
8	MAY Y054866
9	MAY Y054867
10	MAY 200461
11	MAY 200730
12	W10175939 Whirlpool Bolt Assembly
13	MAY 200750
14	MAY 200813
15	MAY 200816
16	MAY 201639
17	MAY 201674
18	12002351 Whirlpool Washer Drive Motor and Jumper Kit 1 Speed 1/2 HP
19	MAY 202203
20	WP285655 Whirlpool Hose Clamp
21	202718 Whirlpool Tension Spring
22	MAY 203193
23	MAY 203274
24	MAY 203723
25	MAY 203725
27	MAY 204807
28	205000 Whirlpool Motor Spring and Guide Kit
31	SWITCH, MOTOR START PROD. NO. 2-1664-4, 2-1664-9, 2-1664-10
32	2-1664-8 AND 2-5463
37	MAY 210172
38	WP210385 Whirlpool Lock Nut
39	WP210684 Whirlpool Dishwasher Leveling Leg Pad
40	MAY 211028
41	MAY 211100
42	WPY014874 Whirlpool Screw
43	WP211949 Whirlpool Nut
44	MAY 212979
45	PART NOT USED
46	WP213045 Whirlpool Dishwasher Tub to Pump Hose
47	PART NOT USED
48	MAY 213054
49	MAY 213073
50	MAY 213120
51	WPW10346892 Whirlpool Screw
52	MAY 213737
53	WP22003410 Whirlpool Drain Hose
54	MAY 214956
55	MAY 215098
56	LEG, ADJUSTABLE (W/NUT)—S
57	WP3400029 Whirlpool Dishwasher Nut
