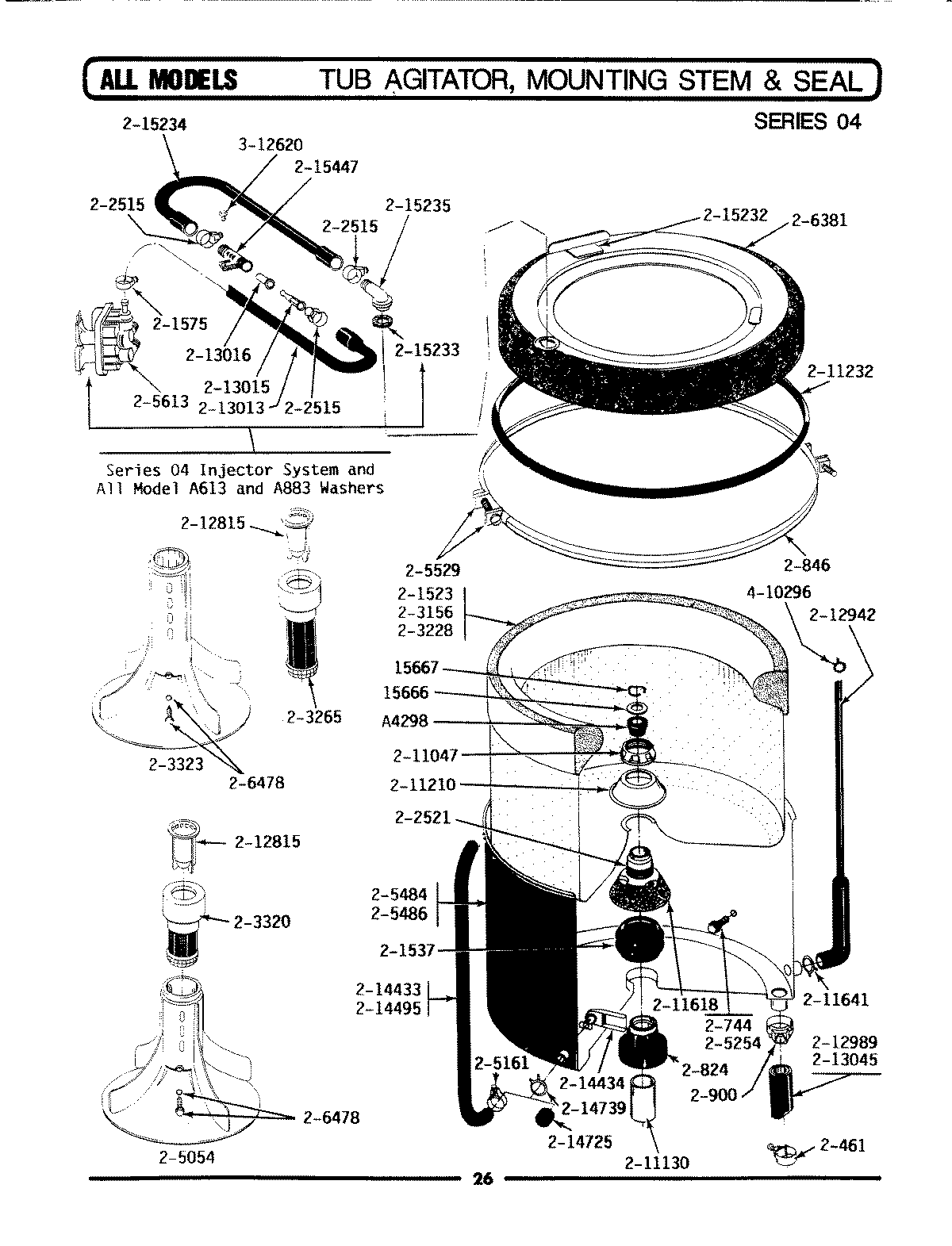

A512S 10 – TUB\AGITATOR\MTG. STEM & SEAL (SER 04)

Products

Position	Product
NI	MAY 215235
NI	WP211232 Whirlpool Seal
NI	MAY 203323
NI	PART NOT USED
NI	MAY Y054867
NI	WP285655 Whirlpool Hose Clamp
1	MAY A04298
2	WPY015666 Whirlpool Washer Retainer
3	MAY Y015667
5	W10175939 Whirlpool Bolt Assembly
6	6-2040130 Whirlpool Washer Tub Bearing Kit
8	MAY 200900
9	MAY 201537
10	WP596669 Whirlpool Hose Clamp
12	MAY 202521
13	MAY 203156
14	MAY 203265
16	MAY 204012
18	W10175938 Whirlpool Bolt
18	WP489503 Whirlpool Refrigerator Clamp
22	205613 Whirlpool Washer Water Inlet Valve
23	MAY 206381
24	MAY 206478
25	MAY 206683
26	WP6-2110472 Whirlpool Nut Clamp
27	MAY 211100
28	MAY 211130
29	MAY 211210
31	MAY 211618
33	MAY 212815
34	MAY 212942
35	WP213013 Whirlpool Injector Hose
36	WP213015 Whirlpool Nozzle Injector Tube
37	WP216201 Whirlpool Rubber Injector Valve
38	WP213045 Whirlpool Dishwasher Tub to Pump Hose
39	MAY 213057
40	WP214433 Whirlpool Inlet Tube
41	MAY 214434
42	MAY 214725
44	MAY 214875
45	MAY 215232
46	WP215233 Whirlpool Seal
47	WPY215234 Whirlpool Hose
49	WP215447 Whirlpool Sleeve
50	MAY Y310632
51	MAY 312620
