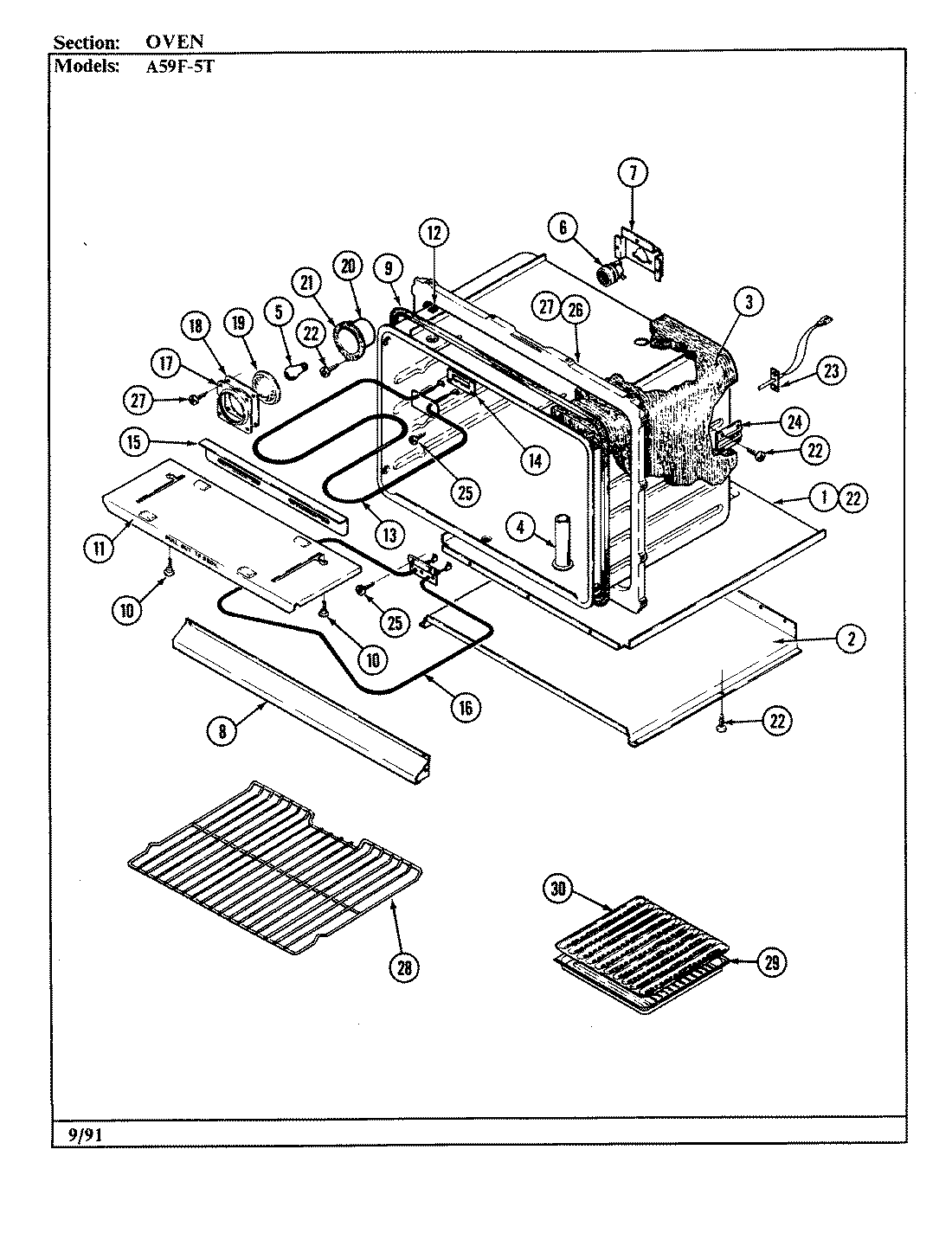

| 1 | MAY 3804F102-80 |
| 1 | MAY 3804F093-80 |
| 2 | MAY 3604F073-80 |
| 3 | MAY 7430P008-60 |
| 3 | MAY 7430P005-60 |
| 4 | MAY 7505P041-60 |
| 4 | MAY 8026A009-60 |
| 5 | MAY 7407P026-60 |
| 6 | MAY 7408P002-60 |
| 7 | MAY 3801F024-51 |
| 8 | MAY 3604W002-71 |
| 8 | MAY 3604W152-71 |
| 8 | SCREW |
| 9 | MAY 7201P036-60 |
| 10 | MAY 7101P005-60 |
| 11 | MAY 3604F092-45 |
| 12 | MAY 7103P062-60 |
| 13 | MAY 8004P013-60 |
| 13 | MAY 7406P068-60 |
| 13 | MAY 7406P032-60 |
| 14 | MAY 7201P003-60 |
| 15 | MAY 3807F176-15 |
| 16 | MAY 7406P067-60 |
| 16 | MAY 7406P010-60 |
| 17 | MAY 3804F012-45 |
| 18 | MAY 7201P015-60 |
| 19 | MAY 7902P057-60 |
| 20 | MAY 4001F020-15 |
| 21 | MAY 7201P014-60 |
| 22 | MAY 7101P061-60 |
| 23 | MAY 3801F093-45 |
| 24 | MAY 3807F205-45 |
| 25 | MAY 7101P064-60 |
| 26 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 27 | WP74003976 Whirlpool Screw |
| 28 | MAY 7801P030-60 |
| 29 | MAY 3401F004-15 |
| 30 | MAY 3413F002-15 |
