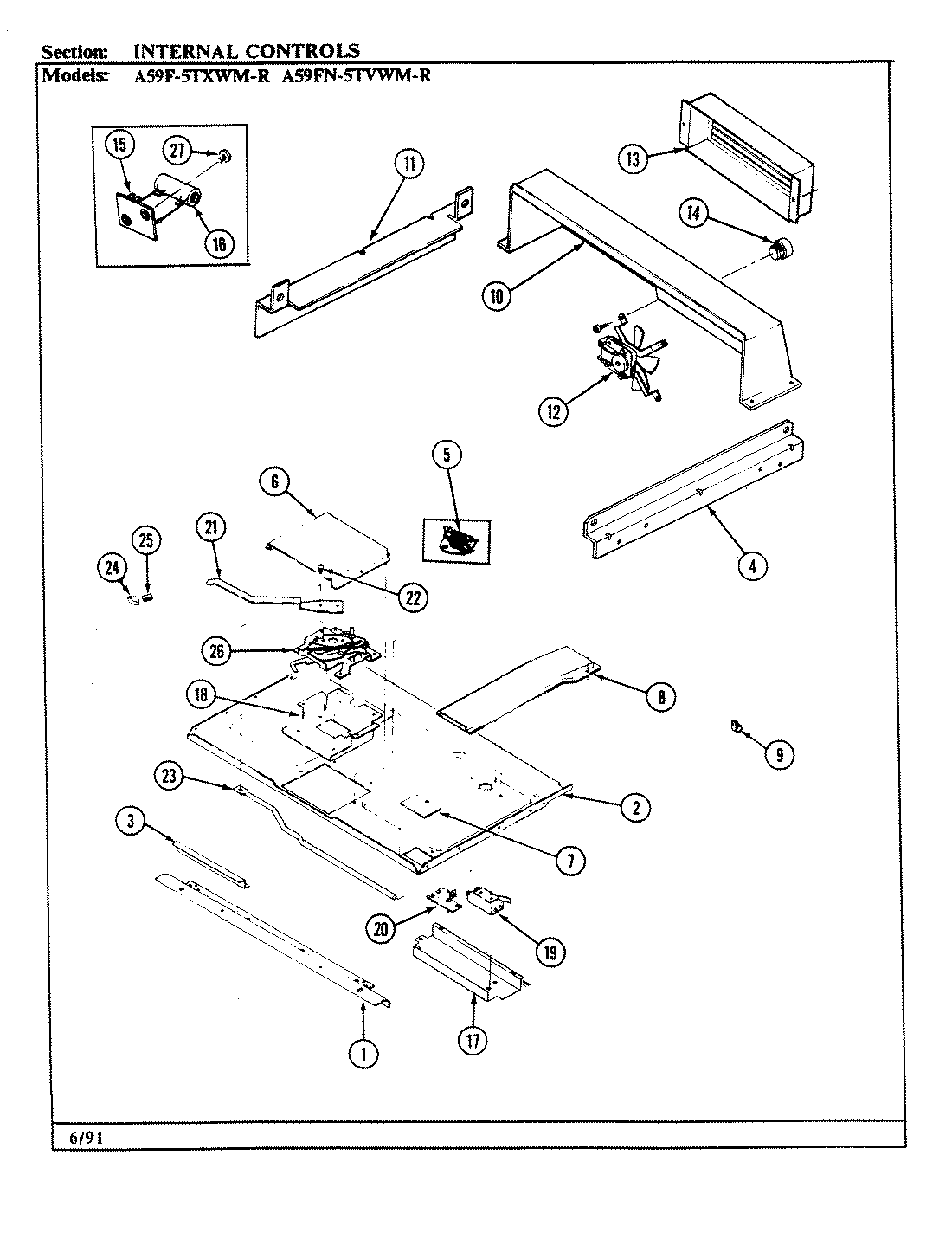

A59FN-5TVWM-R 02 – INTERNAL CONTROLS
Written by
in
A59FN-5TVWM-R 02 – INTERNAL CONTROLS
Products
Position
Product
1
MAY 4012F018-80
1
WP98008545 Whirlpool Screw
2
MAY 4011F177-80
3
MAY 3604F149-80
4
MAY 3801F230-45
4
MAY 7101P061-60
5
MAY 7403P199-60
6
MAY 4005F137-80
7
MAY 4005F139-51
8
MAY 4006W052-45
9
MAY 7111P002-60
10
MAY 4001F067-51
11
MAY 3801F229-45
12
MAY 7417P002-60
12
MAY 7427P010-60
13
MAY 4005F374-51
14
MAY 7416P002-60
14
MAY 7408P014-60
15
MAY 7401P016-60
16
MAY 7413A002-60
17
MAY 3818F027-45
18
MAY 3807F408-45
19
MAY 7003P019-60
19
MAY 7003P039-60
19
MAY 7403P099-60
20
MAY 7101P031-60
20
MAY 3807F193-45
21
MAY 7101P018-60
21
MAY 8009P009-60
22
MAY 7116P003-60
23
MAY 7807P004-60
24
MAY 7701P089-60
25
MAY 7112P003-60
26
MAY 8002P020-60
27
MAY 7118P004-60
←
