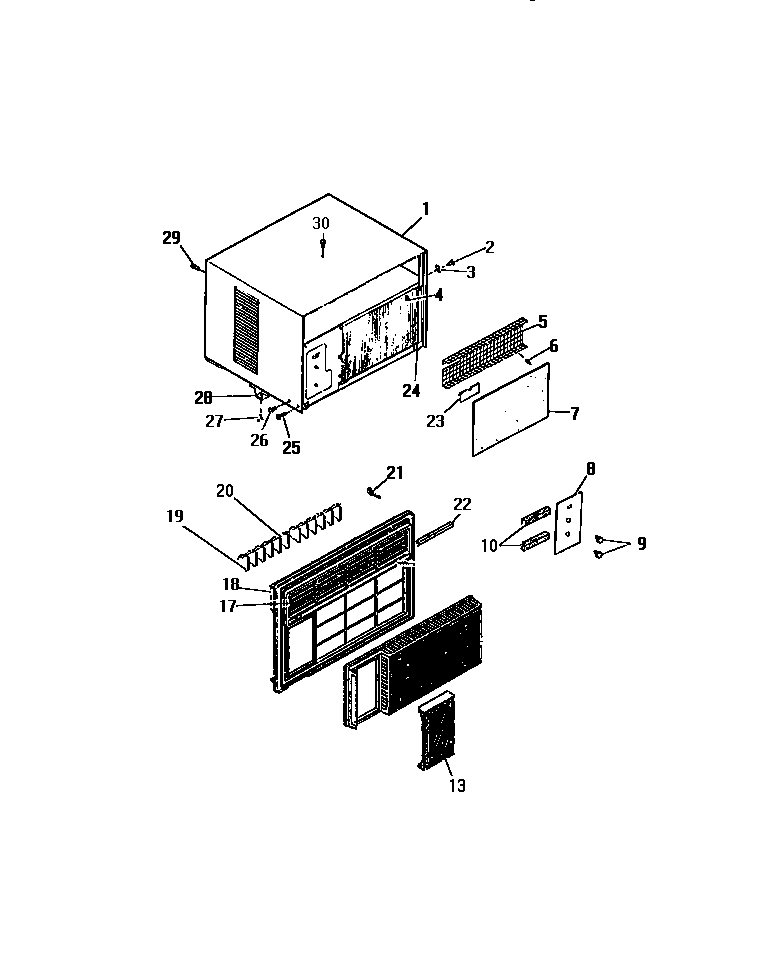

A5LECDC2 09 – CABINET FRONT (`AAA` CABINET MODELS – Aparts

A5LECDC2 09 – CABINET FRONT (`AAA` CABINET MODELS

Products

Position	Product
1	SHELL
2	SCREW-FRONT LOCKING
3	NUT
4	CLIP-CAP. TUBE
5	WCI 8013091
6	SCREW-SCROLL
7	WCI 8009018
8	WCI 8013050
8	WCI 8006837
9	KNOB-CONTROL (3)
10	SEAL
13	WCI 8013621
17	WCI 8011235
18	WCI 8007461
19	LOUVER (12)
19	LOUVER (12)
20	LINK-LOUVER (2)
21	WCI 8013141
22	WCI 8013056
22	SEAL
23	WCI 8012956
24	CLIP (2)
26	SCREW (4)
27	SCREW (2)
28	SUPPORT
30	SCREW
