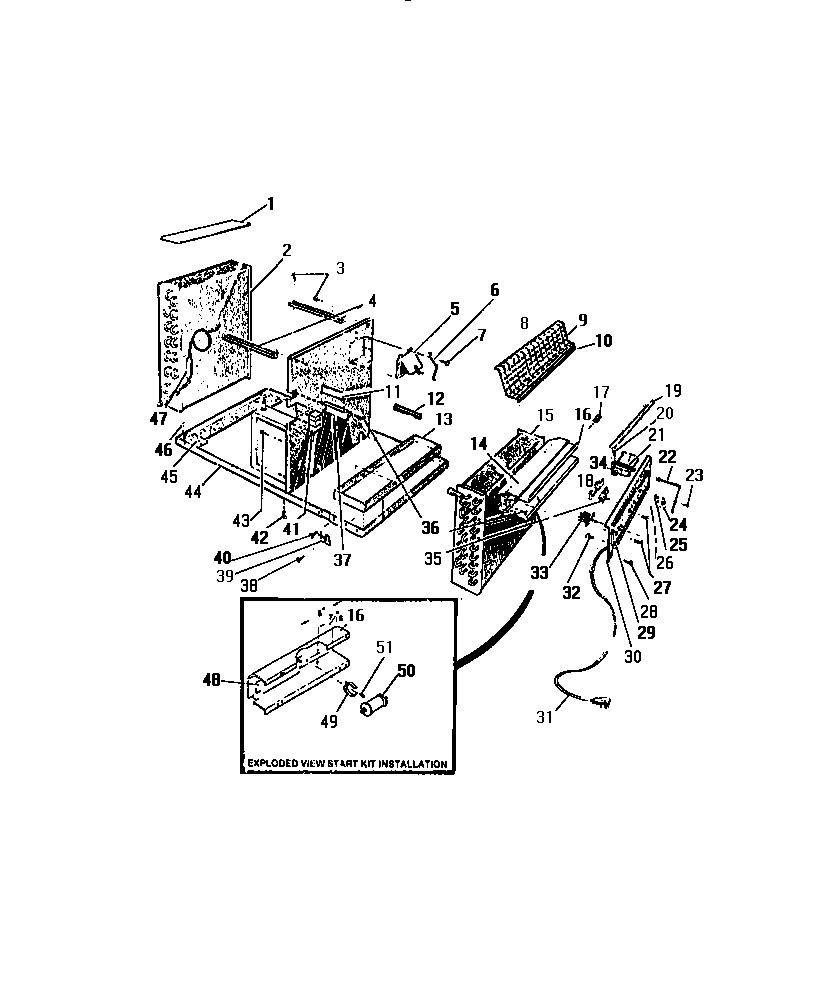

A5LECDSD2 04 – EVAPORATOR, CONDENSER, BASE (`SLIDE – Aparts

A5LECDSD2 04 – EVAPORATOR, CONDENSER, BASE (`SLIDE

Products

Position	Product
1	WCI 8002922
2	WCI 8009431
4	WCI 8004937
5	WCI 8006929
6	WCI 8003049
7	SCREW (8)
9	WCI 8003009
11	WCI 8004943
12	WCI 8002944
13	WCI 8003030
15	WCI 8013784
16	WCI 8004939
17	CLIP, CONTROL BOX TO SCROLL
18	WCI 8002923
19	WCI 8003066
21	WCI 8003053
22	WCI 8013147
23	WCI 8011095
24	WCI 8002946
25	WCI 8013774
26	WCI 8007194
27	SCREW-CONTROL MTG
29	WCI 8003001
30	WCI 8013796
31	WCI 8013818
32	SCREW
33	WCI 8013150
34	WCI 8003015
35	THERMOSTAT
37	WCI 8004942
39	WCI 8003051
40	WCI 8013635
41	WCI 8002947
42	WCI 8002965
43	SCREW (4)
44	BASE-ASSEMBLY (SPECIAL ORDER)
45	WCI 8002921
46	CLIP-CONDENSER
47	DRIER
48	WCI 8003058
49	CLAMP
50	RELAY, START KIT
51	WCI 8002954
