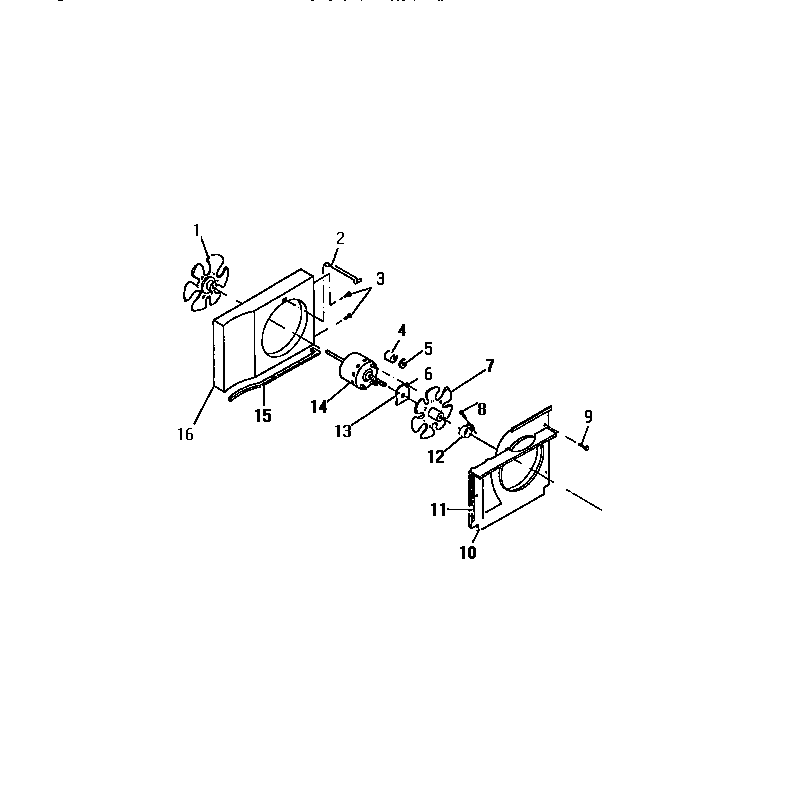

A5LECDSD2 10 – SHROUD, SCROLL, BLOWER MOTOR (`AAA`

Products

PositionProduct
*23127SPACER, PLATE, SPLASH (2)
*23128WCI 8012678
*23129SCREW, FAN MOTOR MOUNTING (3)
1FAN-CONDENSER (INCL. CLAMP)
2CLIP
3SCREW, GROUND TO CONTROL PANEL
4WCI 8006943
4AWCI 8013766
5WCI 8002976
6NUT (3)
7FAN-EVAPORATOR (INCL. CLAMP)
8WCI 8013635
9SCREW (4)
10SHROUD, EVAPORATOR
11SEAL
12CLAMP (EVAPORATOR & CONDENSER FAN-BLADE CLAMP)
13WCI 8007483
14WCI 8013815
15SEAL
16SHROUD, CONDENSER
