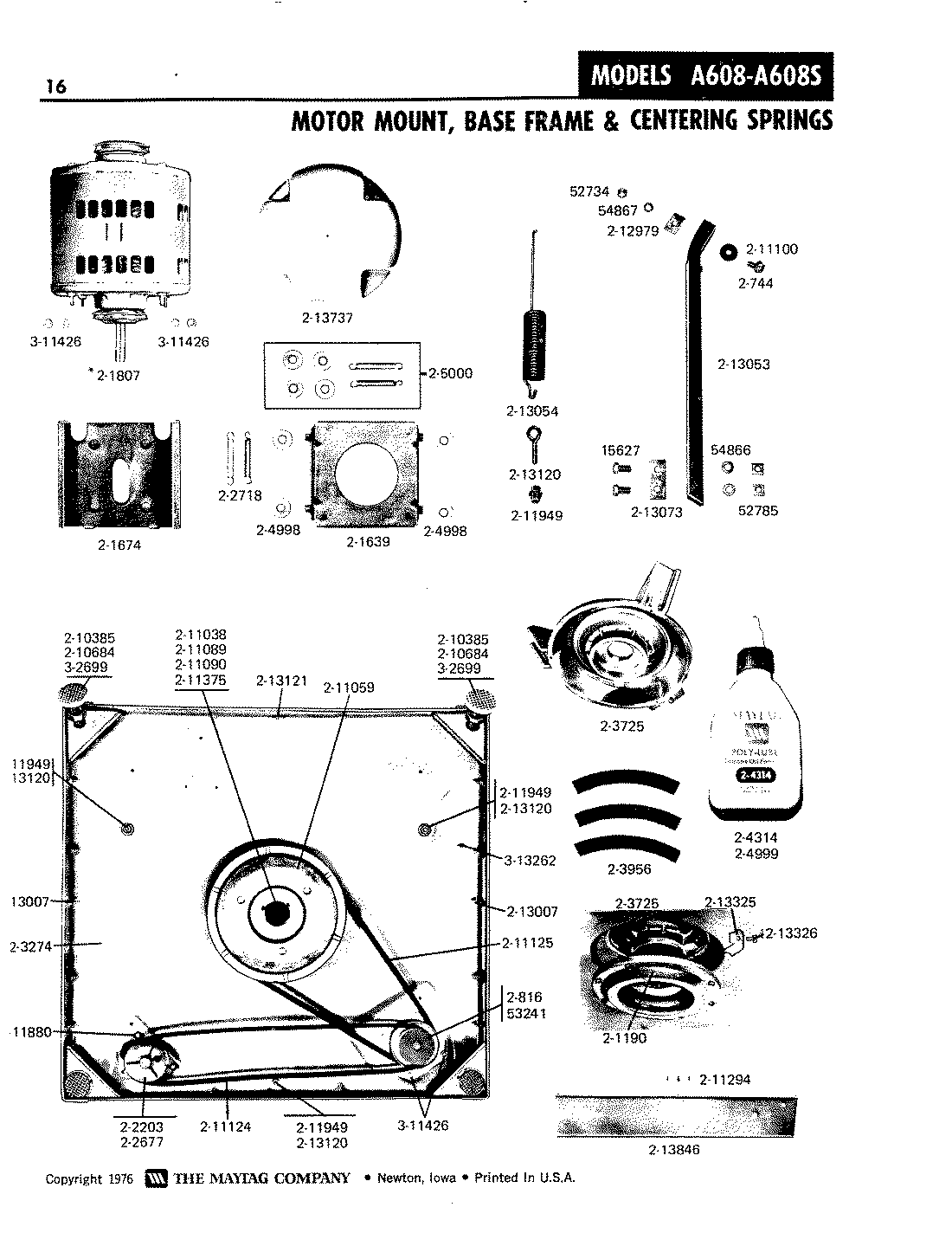

A608 09 – MOTOR MOUNT, BASE FRAME & CENTERING SPRS

Products

Position	Product
NI	HI-TEMP ADHESIVE
NI	MAY Y055978
NI	MAY 205131
NI	MAY 205134
2	MAY Y052734
3	MAY Y052785
4	MAY Y053241
5	MAY Y054866
6	MAY Y054867
9	W10175939 Whirlpool Bolt Assembly
10	MAY 200816
11	MAY 201190
12	MAY 201639
13	MAY 201674
14	MAY 201807
15	MAY 202203
16	MAY 202677
17	202718 Whirlpool Tension Spring
18	MAY 203274
19	MAY 203725
20	203956 Whirlpool Damper Pads 3 Pack with Poly
21	MAY 204314
22	205000 Whirlpool Motor Spring and Guide Kit
23	WP99003172 Whirlpool Silicone L
27	WP210385 Whirlpool Lock Nut
28	WP210684 Whirlpool Dishwasher Leveling Leg Pad
29	MAY 211038
30	MAY 211059
31	WP211089 Whirlpool Lug Stop
32	WP22003555 Whirlpool Washer ST
33	MAY 211100
34	12112425 Whirlpool Washer Pump and Drive Belt Set
36	WP90767 Whirlpool Screw
37	WP912618 Whirlpool Dishwasher Screw
38	WPY014874 Whirlpool Screw
39	WP211949 Whirlpool Nut
40	MAY 212979
41	213007 Whirlpool Screw #12
42	PART NOT USED
43	MAY 213054
44	MAY 213073
45	MAY 213120
46	WPW10346892 Whirlpool Screw
47	WP213325 Whirlpool Clip
48	MAY 213326
49	MAY 213737
50	MAY 213846
51	LEG, ADJUSTABLE (W/NUT)—S
52	WP3400029 Whirlpool Dishwasher Nut
53	MAY Y313262
